Cessna 402C - Page 107

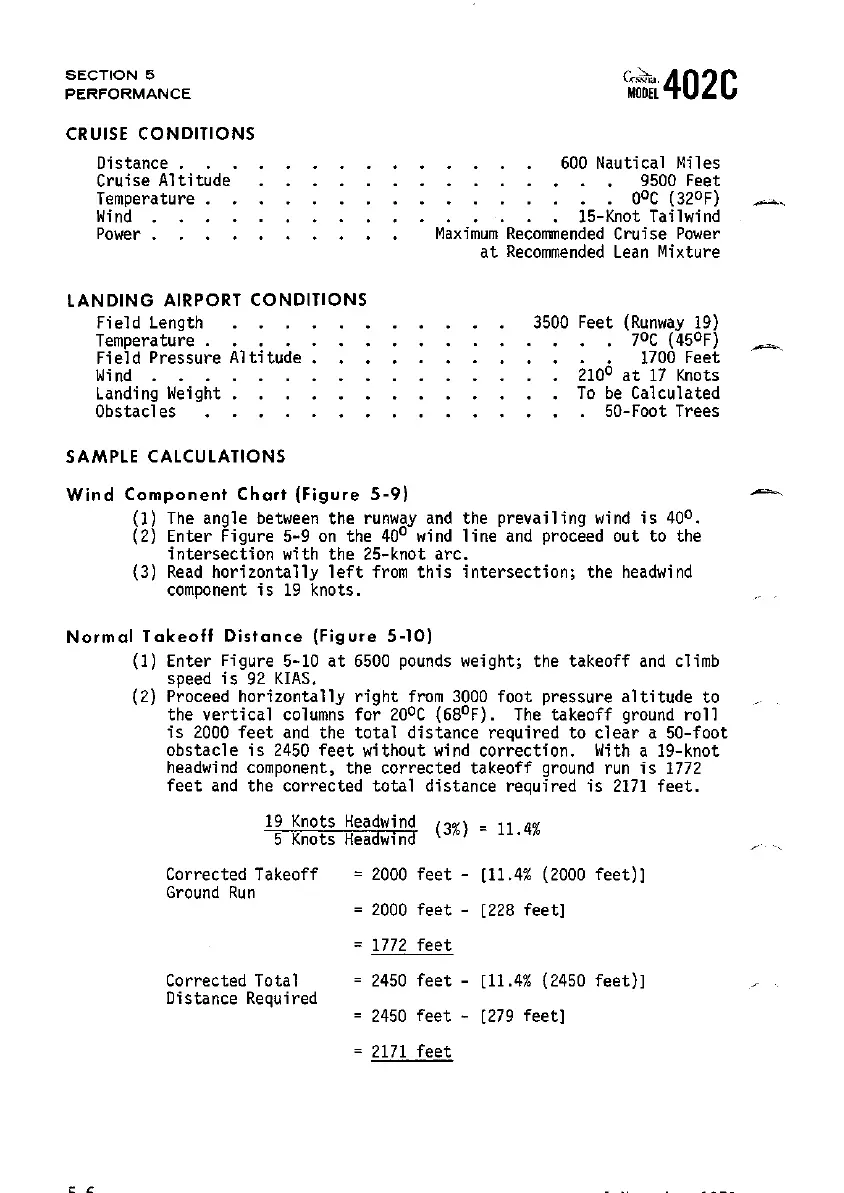

SECTION 5
PERFORMANCE
CRUISE CONDITIONS
Distance. .
Cruise Altitude
Temperature
Wind
Power.
LANDING AIRPORT CONDITIONS
Field Length
Temperature. . . .
Field Pressure Altitude
Wind .
Landing Weight
Obstacles
SAMPLE CALCULATIONS
600 Nautical Miles
•
9500 Feet
·
DoC (320F)
.• • 15-Knot Tailwind
Maximum Recommended Cruise Power
at Recommended Lean Mixture
3500 Feet (Runway 19)
· 70C (450F)
. • 1700 Feet
210° at 17 Knots
To be Calculated
50-Foot Trees
Wind Component Chart (Figure 5-9) ~
(1) The angle between the runway and the prevailing wind is 40
0
.
(2) Enter Figure 5-9 on the 40° wind line and proceed out to the
intersection with the 25-knot arc.
(3)
Read horizontally left from this intersection; the headwind
component is 19 knots.
Normal Takeoff Distance (Figure 5-10)
(1) Enter Figure 5-10 at 6500 pounds weight; the takeoff and climb
speed
is 92 K1AS.
(2) Proceed horizontally right from 3000 foot pressure altitude to
the
vertical columns for 200C (68°F). The takeoff ground roll
is 2000 feet and the total distance required to clear a 50-foot
obstacle
is 2450 feet without wind correction. With a 19-knot
headwind component, the corrected takeoff ground run is 1772
feet and the corrected total distance required is 2171 feet.
Corrected Takeoff
Ground Run
Co rrected To ta1
Distance
Required
2000
feet -
[11.4% (2000 feet)]
2000 feet -
[228 feet]
1772 feet
2450 feet - [11.4% (2450 feet)]
2450
feet [279 feet]
2171 feet
