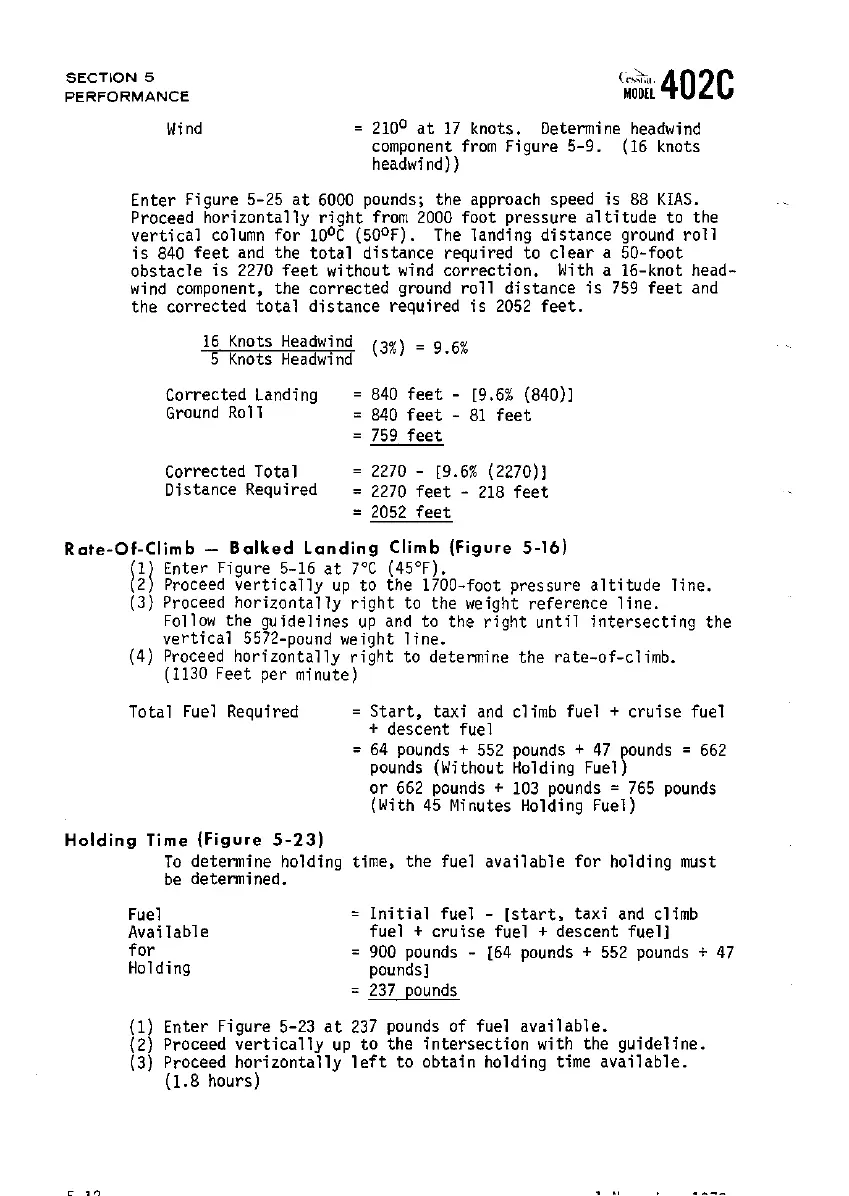

SECTION 5
PERFORMANCE
Wind = 210
0
at 17 knots. Determine headwind
component from Figure 5-9. (16 knots
headwind))
Enter Figure 5-25
at 6000 pounds; the approach speed is 88 KIAS.
Proceed horizontally right from 2000 foot pressure altitude to the
vertical column for 10
0
C (500F). The landing distance ground roll
is 840 feet and the total distance required to clear a 50-foot
obstacle
is 2270 feet without wind correction. With a 16-knot head-
wind component, the corrected ground roll distance is 759 feet and
the corrected total distance required is 2052 feet.
16 Knots Headwind
5 Knots Headwlnd
Corrected Landing
Ground Roll
(3%) = 9.6%
840 feet - [9.6% (840)]
840 feet - 81 feet
759 feet
Corrected Total
Distance Required
2270 - [9.6% (2270)]
2270 feet - 218 feet
2052 feet
Rate-Ol-Climb - Balked Landing Climb (Figu,e 5-16)
(1) Enter Figure 5-16 at 7°e (45°F).
(2)
Proceed vertically up to the 1700-foot pressure altitude line.
(3) Proceed horizontally right to the weight reference line.
Follow the guidelines up and to the right until intersecting the
vertical 5572-pound weight line.
(4) Proceed horizontally right to determine the rate-of-climb.
(1130 Feet per minute)
Total
Fuel Required
= Start, taxi and climb fuel + cruise fuel
+ descent fuel
= 64 pounds + 552 pounds + 47 pounds = 662
pounds (Without Holding Fuel)
or 662 pounds + 103 pounds = 765 pounds
(With 45 Minutes Holding Fuel)
Halding Time (Figu,e 5-23)
To determine holding time, the fuel available for holding must
be detennined.
Fuel
Available
for
Holding
(1)
(2)
(3)
Initial fuel - [start. taxi and climb
fuel
+ cruise fuel + descent fuel]
gOO pounds - [64 poundS + 552 pounds + 47
pounds]
237 pounds
Enter Figure 5-23 at 237 pounds of fuel available.
Proceed vertically up to the intersection with the guideline.
Proceed horizontally
left to obtain holding time available.
(1.8 hours)
