SECTION
5
PERFORMANCE
NORMAL
LANDING
DISTANCE
Gc~"402C
MODEL
COND
ITIONS:
1.
Throttles
-
IDLE.
2.
Landing Gear -
DOWN.
3.
Wing
Flaps -
45°.
4.
Cowl
Flaps -
CLOSE.
5.
Level,
Hard
Surface
Runway.
6.
Maximum
Effective
Braking.
NOTE:
1.
If
necessary
to
land
with
wing
flaps
UP,
the
approach speed
should
be
increased
above
the
normal alJproach speed
by
13
knots.
Expect
total
landing
distance
to
increase
by
35%.
2.
For
altitudes
of
10,000
feet
or
less,
decrease
distance
by
3%
for
each 5 knots headwind. For
altitudes
above
10,000
feet,
decrease
the
total
landing
distance
by
1%
for
each 2 knots
of
head
wi
nd.
3. For
operations
with
tailwinds
up
to
10
knots,
increaSe
total
distances
by
14%
for
each 5 knots wind.
I
I
_20°C (_4°F)
_lO
o
e
(l4°F)
-DoC
(32°F)
10°C
(50°F)
SPEED
AT
TOTAL TOTAL
TOTAL TOTAL
50-
FOOT
PRESSURE
GROUND
DISTANCE
GROUND
DISTANCE
GROUND
DISTANCE
GROUND
DISTANCE
WEIGHT-
OBSTACLE
ALTiTUDE
ROLL
-
TO
CLEAR
ROLL
-
TO
CLEAR
ROLL
-
TO
CLEAR
ROLL
-
TO
CLEAR
POUNDS
KIAS
-
FEET FEET
50
FEET
FEET
50
FEET FEET
50
FEET
FEET
50
FEET
5500 83 Sea Level
580
2010
600 2030
620
2050
640
2070
1000
600
2030
620 2050 640 2070 670
2100
2000 620 2050 640 2070 670
2100
690
2120
3000 640
2070
670
2100
690
2120 710
2150
4000
670 2100
690 2120 720
2150
750 2180
5000
690
2120
720
2150 750
2180 770
2200
6000
720 2150
750 2180 770
2200 800
2230
7000 750
2180
780 2210 800
2230 830
2260
8000 770 2200
810 2240 840
2270
870 2300
9000
810 2240
840 2270 870
2300 900
2330
10,000 840 2270
870
2300
900
2330 940 2370
11,000
870 2300
900 2330 940
2370
970
2400
12,000
900
2330
940
2370
980 2410
1010
2440
13,000
940
2370
980
2410
1010 2440
1050
2480
14,000 980
2410
1020
2450
1060
2490
1090
2520
15,000 1020 2450
1060
2490
1100
2530
1140
2570
5000
83 Sea Level 470 2020
490 2040 510
2060 520 2080
1000
490 2040
500 2060 520
2080
540 2100
2000
500
2060
520 2080 540
2100 560 2120
3000
520 2080 540
2100
560
2120 580
2140
4000 540 2100
560 2120 580 2140
610
2160
5000 560
2120
580
2140
610
2160 630 2180
6000
580 2140
610 2160 630
2180 650
2210
7000 610 2160
630 2180 650
2210
680
2230
8000 630 2180
650 2210 680
2230
700
2260
9000 650 2210
680 2230 700
2260 730
2290
10,000
680
2230
710
2260 730
2290
760
2310
11
,000
710 2250
730
2290
760
2320
790
2340
12,000
730 2290
760
2320
790
2350 820 2380
13,000
760 2320
790 2350 820
2380
850 2410
14,000
790 2350
830 2380 860
2410 890
2440
15,000
830 2380
860
2410
890
2450
920 2480

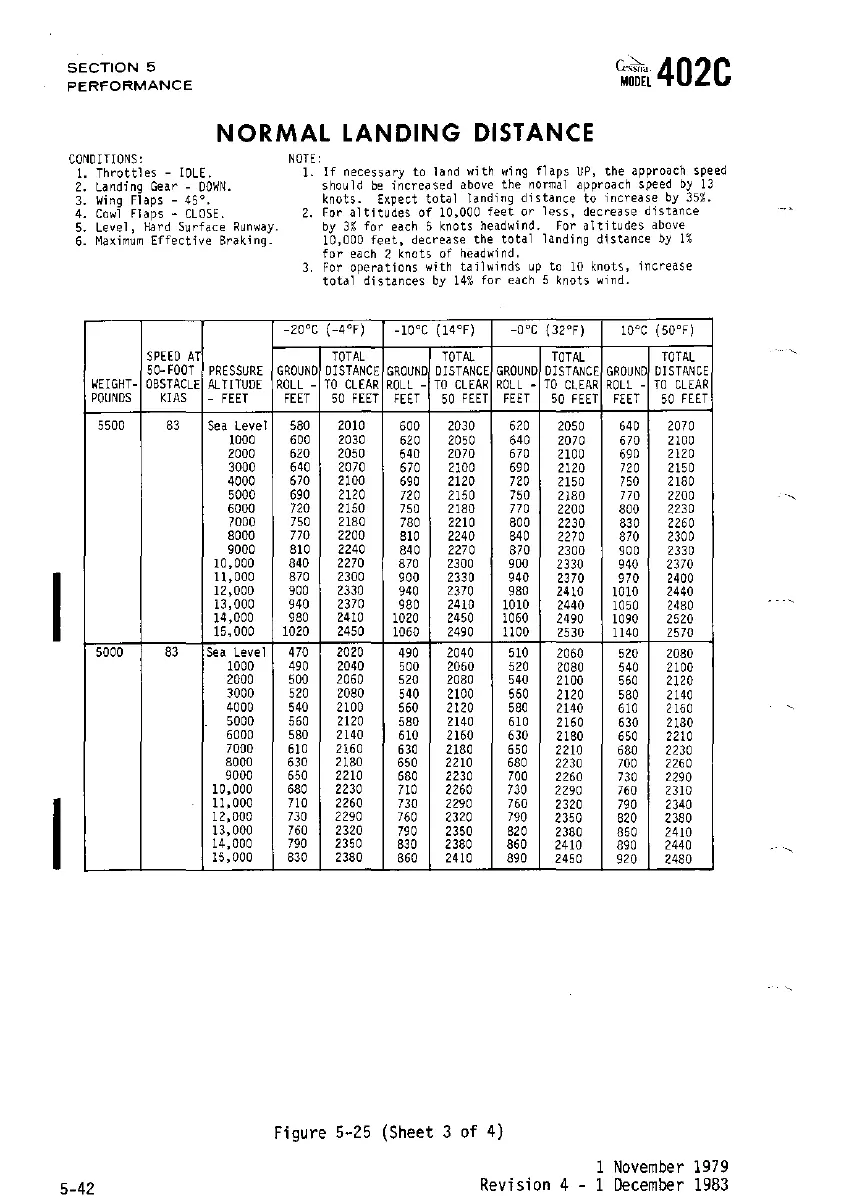

Figure 5-25 (Sheet 3 of
4)
5-42
1
November
1979
Revision 4 - 1
December
1983
