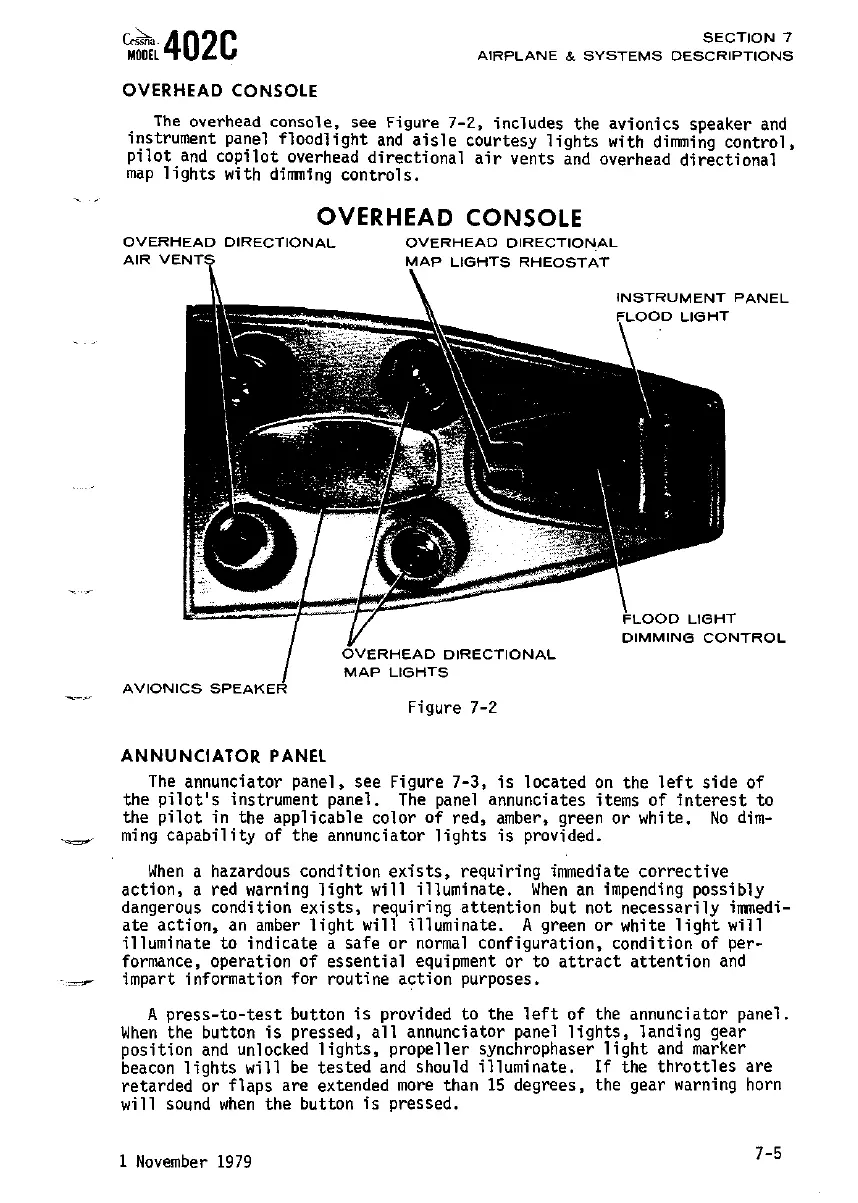

Cessna 402C - Page 209

SECTION 7
AIRPLANE & SYSTEMS DESCRIPTIONS
OVERHEAD CONSOLE
The overhead console, see Figure 7-2, includes the avionics speaker and
i~strument panel floodlight and aisle courtesy lights with dimming control,
pllot and copilot overhead directional air vents and overhead directional
map lights with dimming controls.
OVERHEAD CONSOLE
OVERHEAD DIRECTIONAL
AIR VENT
AVIONICS SPEAKER
OVERHEAD DIRECTIONAL
MAP LIGHTS RHEOSTAT
INSTRUMENT PANEL
FLOOD LIGHT
FLOOD LIGHT
DIMMING CONTROL
OVERHEAD DIRECTIONAL
MAP LIGHTS
Figure 7-2
ANNUNCIATOR PANEL
The annunciator panel, see Figure 7-3, is located on the left side of
the
pilot's instrument panel. The panel annunciates items of interest to
the pilot in the applicable color of red, amber, green or white. No dim-
ming capability of the annunciator lights is provided.
When a hazardous condition exists, requiring immediate corrective
action, a red warning light will illuminate. When an impending possibly
dangerous condition
exists, requiring attention but not necessarily immedi-
ate action, an amber light will illuminate. A green or white light will
illuminate to indicate a safe
or normal configuration, condition of per-
formance, operation
of essential equipment or to attract attention and
impart information for routine action purposes.
A
press-to-test button is provided to the left of the annunciator panel.
When the button is pressed, all annunciator panel lights, landing gear
position
and unlocked lights, propeller synchrophaser light and marker
beacon lights will be tested and should illuminate. If the throttles are
retarded or flaps are extended
more than 15 degrees, the gear warning horn
will sound when the button is pressed.
1 November 1979
7-5
