~~t402C
ElEVATOR TRIM SYSTEM
SECTION 7
AIRPLANE & SYSTEMS DESCRIPTIONS

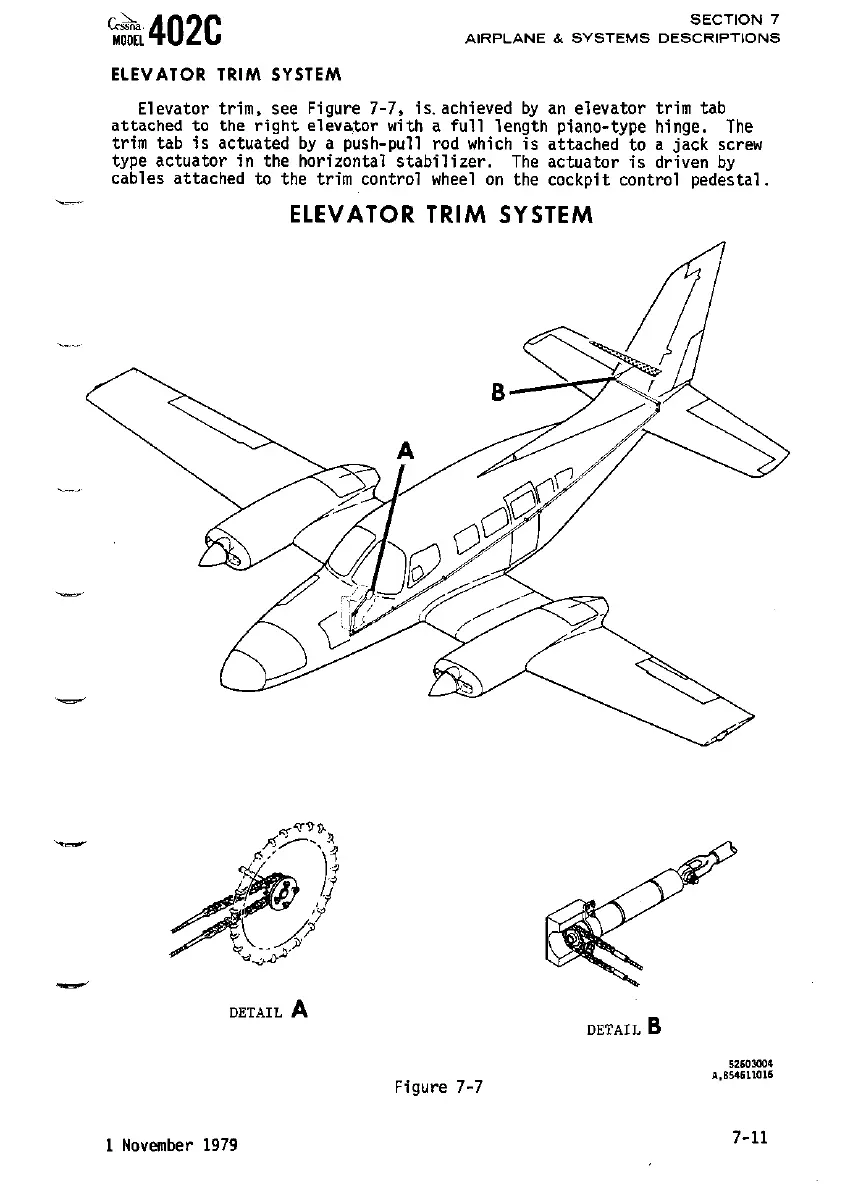

Elevator trims see Figure 7-7, is. achieved by an elevator trim tab
attached to the right elevator with a full length piano-type hinge. The
trim tab is actuated by a push-pull rod which is attached to a jack screw
type actuator in the horizontal stabilizer. The actuator is driven by
cables attached to the trim control wheelan the cockpit control pedestal.
ELEVATOR TRIM SYSTEM
-
-
DETAIL A
1 November 1979
Figure 7-7
DETAIL B
SZ603004
A,B54611016
7-11
