~i402C
SECTION 7
AIRPLANE & SYSTEMS DESCRIPTIONS
RUDDER TRIM SYSTEM

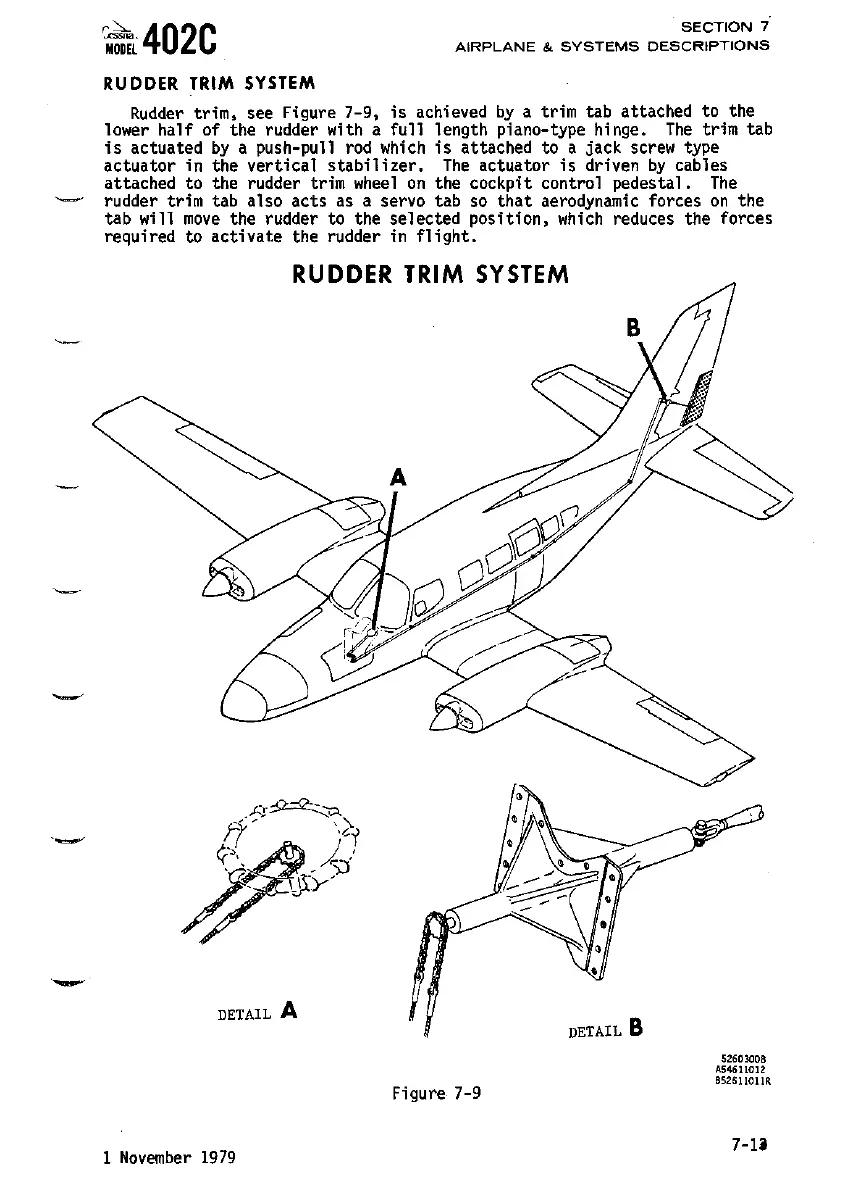

Rudder trim. see Figure 7-9, is achieved by a trim tab attached to the
lower half of the rudder with a full length piano-type hinge. The trim tab
is actuated by a push-pull rod which is attached to a jack screw type
actuator in the vertical stabilizer. The actuator is driven by cables
attached to the rudder trim wheelan the cockpit control pedestal. The
~ rudder trim tab also acts as a servo tab so that aerodynamic forces on the
tab will move the rudder to the selected position, which reduces the forces
required
to activate the rudder in flight.
RUDDER TRIM SYSTEM
A
-
.-
-
DETAIL A
1 November 1979
Figure 7-9
,
DETAIL B
52603008
A54611012
852611011R
7-li
