~'402C
MODEL
SECTION 7
AIRPLANE & SYSTEMS DESCRIPTIONS
INTERNAL LIGHTING
The airplane is equipped with lighting for baggage areas, cabin door-
way, cockpit controls and indicators, cockpit illumination and cabin
illumination.
Optional baggage area lights are provided for both wing lockers and the
~~" nose baggage areas. The lights are actuated when the applicable baggage
door is opened and extinguish when the door is closed.
The cabin doorway and instrument panel floodlights provide adequate
illumination for night boarding.
These lights are controlled by a switch
immediately inside the cabin
doorway, see Figure 7-20, or by a switch on
the instrument panel, see Figure 7-1. An optional timer is available
which will automatically extinguish the cabin doorway and instrument panel
floodlights 15 minutes after leaving the airplane if the lights were not
switched
off. The system operation is as follows:
1.
The cabin doorway and instrument panel floodlights can be actuated
by either of the two switches described above. Any time the
lights come on, the timer begins to count down for 15 minutes.
2.
With the cabin door closed, the lights will operate in a normal
fashion (i.e., lights out, movement of either switch turns lights
on; lights on, movement of either switch turns lights off), unless
the timer
has extinguished the lights, thus requiring cycling of
either switch to turn the lights on again.

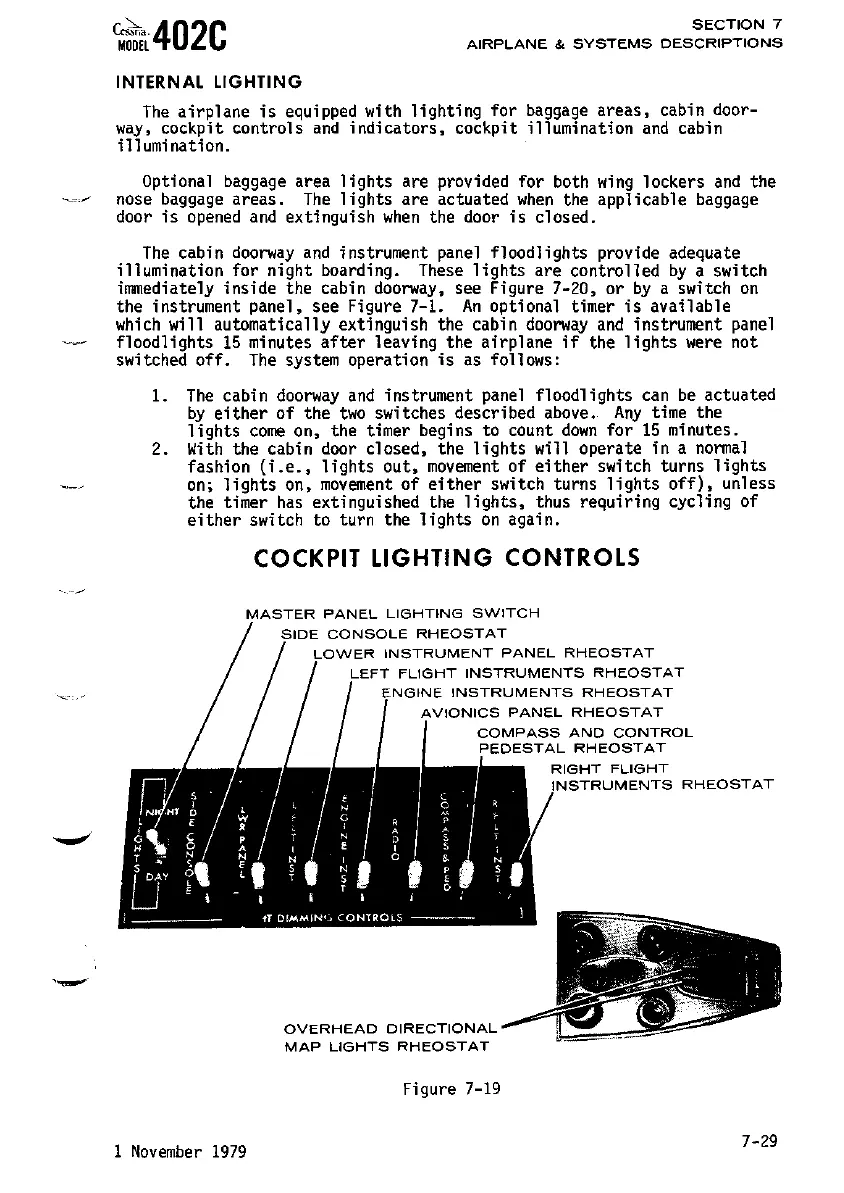

COCKPIT LIGHTING CONTROLS
MASTER PANEL L1GHT~NG SWITCH
SIDE CONSOLE RHEOSTAT
LOWER INSTRUMENT PANEL RHEOSTAT
LEFT FLIGHT INSTRUMENTS RHEOSTAT
ENGINE INSTRUMENTS RHEOSTAT
AVIONICS PANEL RHEOSTAT
COMPASS AND CONTROL
PEDESTAL RHEOSTAT
RIGHT FLIGHT
INSTRUMENTS RHEOSTAT
OVERHEAD DIRECTIONAL
MAP LIGHTS RHEOSTAT
Figure 7-19
1 November 1979
7-29
