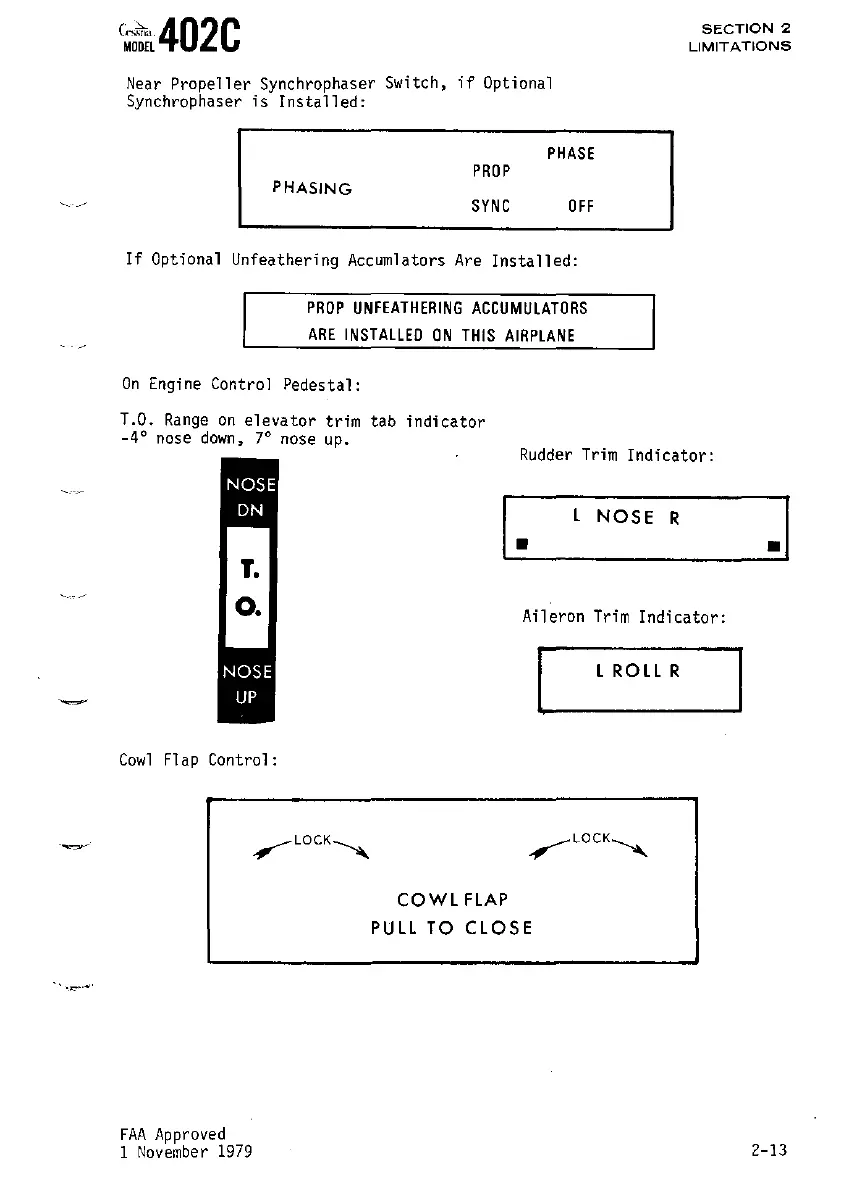

Cessna 402C - Page 32

Near Propeller Synchrophaser Switch, if Optional
Synchrophaser
is Installed:
PHASE
PROP
PHASING
SYNC OFF
If Optional Unfeathering Accumlators Are Installed:
PROP UNFEATHERING ACCUMULATORS
ARE INSTAllEO ON THIS AIRPLANE
On Engine Control Pedestal:
SECTION 2
LIMITATIONS
Rudder Trim Indicator:
Aileron
Trim Indicator:
T.O. Range on elevator trim tab indicator
_4° nose down, 7° nose up.
T.
O.
Cowl Flap Control:
I.
L NOSE R
L
ROLL R
.1
..,..---LOCK----....
COWL FLAP
PULL TO CLOSE
FAA Approved
1
November 1979
2-13
