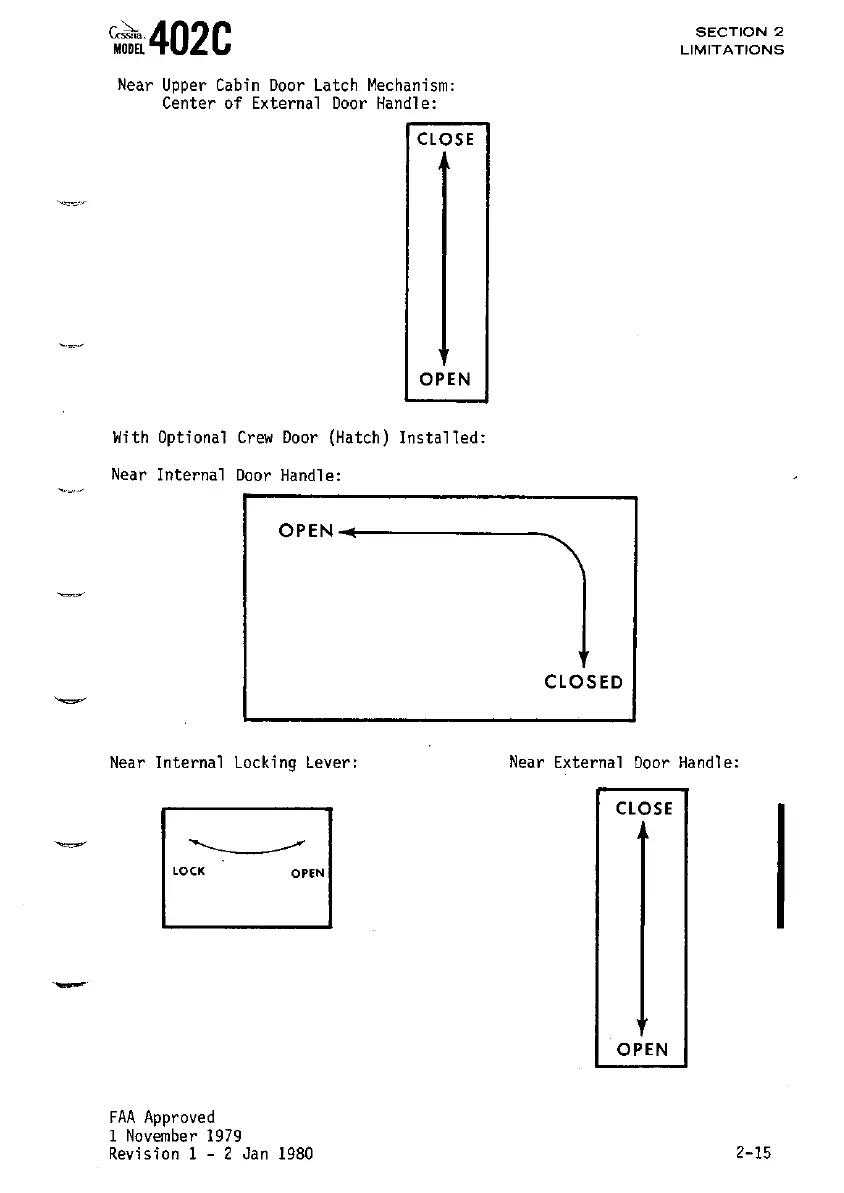

Cessna 402C - Page 34

eo.i:r'·402C
MODEL
Near Upper Cabin Door Latch Mechanism:
Center of External Door Handle:
CLOSE
OPEN
With Optional Crew Door (Hatch) Installed:
Near Internal Door Handle:
OPEN ... --------....
CLOSED
SECTION 2
LIMITATIONS
Near Internal Locking Lever:
Near External Door Handle:
CLOSE
-
LOCK
OPEN
OPEN
FAA Approved
1 November 1979
Revision 1 - 2 Jan 1980
2-15
