Products covered by delivery
Panel instrument for measuring of D.C current, D.C voltage,
A.C current, A.C voltage, power, powerfactor and frequency.
Types: CQ, IQ, CL, CQR, CLR, QB, IQB, PQ, PL, QQ, QL,
PFQ, PFL, FQ, FL
Check when un-packing
To be sure that the instrument has not been damaged during
transport, check the following:
- the movement is balanced
- the front is not damaged
Even if there is no visual damage the accuracy can be inuen-
ced by increased friction of the bearing..
The transportation company is responsible for damage sustai-
ned during transport.
Before mounting
Before mounting, check the instrument against enclosed pack-
ing list to conrm:
- quantity
- measuring range
- mounting devices and terminal devices are mounted on the
housing.
If any inconsistencies are found the instrument must be retur-
ned to sender.

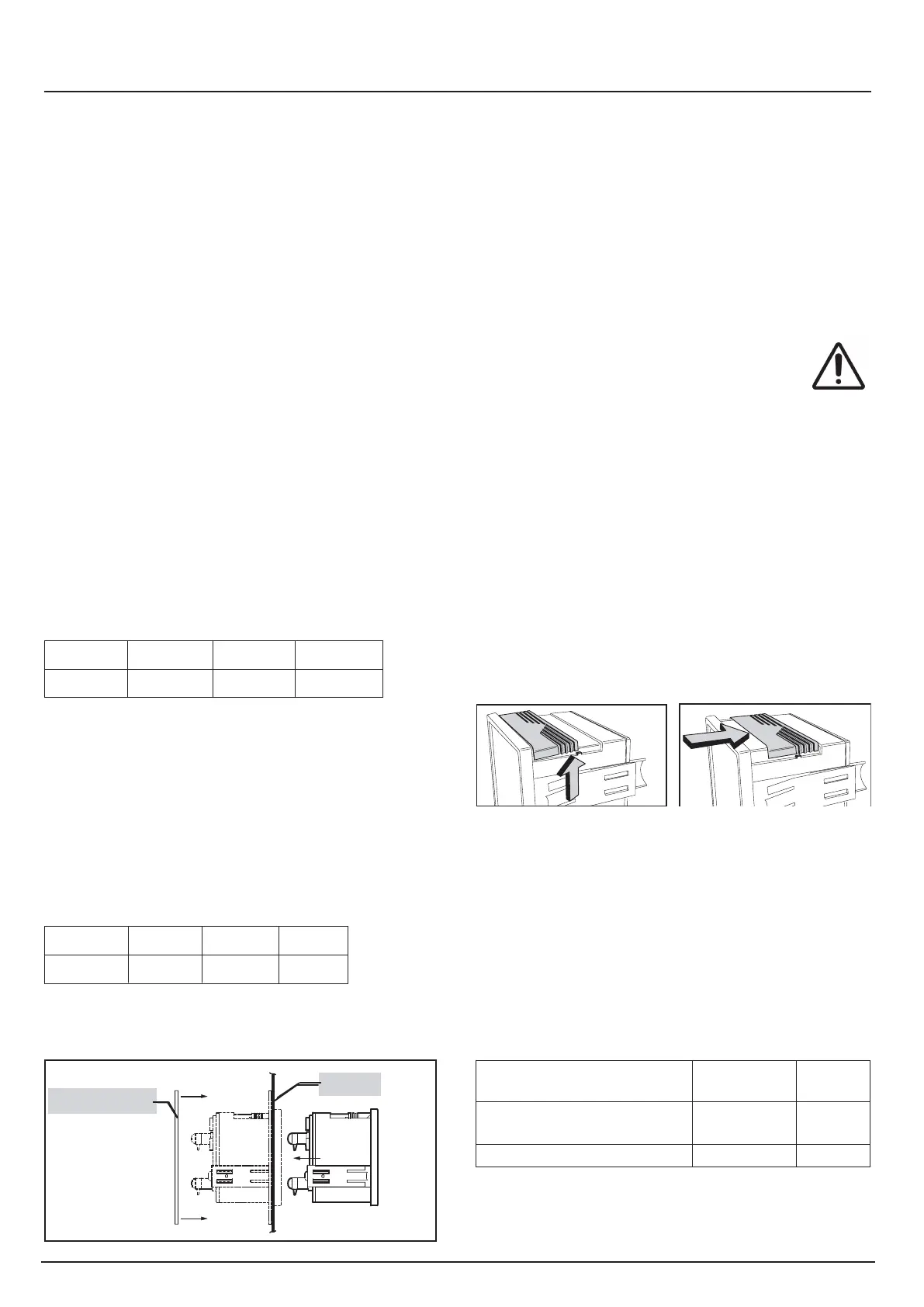

Mounting
Frontsize 96 mm 72 mm 49 mm
Cutout 92
+0.8
mm 68
+0.7
mm 45
+0.6
mm
1. Push the instrument into the mounting bracket from the
front.
2. Fasten the screws on the mounting devices so that the in-
strument stays firm.
3. The mounting devices are designed to fit panel thickness up
to 5 mm.
4. Connections are made to the intended terminals.
When mounting more than one instrument into the same
cutout, use a mounting frame. Mounting frames can be ordered
as a supplement:
Frontsize 96 mm 72 mm 49 mm
Article No. 119501 119502 119503
For indoor use
INSTALLATION INSTRUCTION - PANEL INSTRUMENTS MODEL 1
Attention!
Instruments for measuring D.C current/D.C voltage have con-
nections marked + and -. Make sure that the correct polarity is
connected to the instrument.
Instruments for measuring power/powerfactor are labelled with
connection drawings.
For instruments to be connected to measuring transformer,
make sure that the data for the measuring transformer conforms
to the data labelled on the instrument.
A switch or circuit-breaker must be included in the installa-
tion. it must be suitably located and easily reached. it must be
marked as the disconnecting device for the equipment.
Terminal clamps are designed for cable dimen-
sions up to 8 mm
2
. If thicker cables are used then
use cable clamps.
WARNING: Always disconnect all wires carrying
dangerous voltages before accessing the instru-
ment.
Check that the pointer is at zero by rotating the instruments
zero adjuster with a screw driver.
Screw driver recomendation M3 0.8x4.0
Impact rating is IK06 and rated impact energy level is 1 joule.
Protection cover
Snap the protection cover on the excisting mounting bracket at
the back of the instrument.
Replacing the scale
For instruments with quadrant scale of 90°.
1. Lift the cover on the top of the housing and draw back.
2. Place a screw driver in the notch situated on the top of the
scale, and lift out the excisting scale.
3. A new scale is pushed all the way down to the mounting
slots.
4. Reset the cover on the top of the housing.
Standards
The panel instruments conform to following standards:
IEC60051, IEC 50081-1, IEC 50082-1, IEC 50081-2, IEC
50082-2, DIN 43802, DIN 43700.
Personal security: IEC 61010-1 (Safety requirements for elec-
trical equipment for measurement, control and laboratory use).
B0918GB
Mounting frame
Panel
Insulation: Reinforced
Material Group: III
Pollution Degree: 2
Altitude: max 2000 m
Type Measurement Working
Category
Voltage
CQ, CQR, CL, CLR, QB, IQB, III 300V
FQ, FL, PFQ, PFL
IQ, PQ, PL, QQ, QL III 600V
4
To Next Page
