Before connecting battery with inverter, please make sure the inverter turns off.

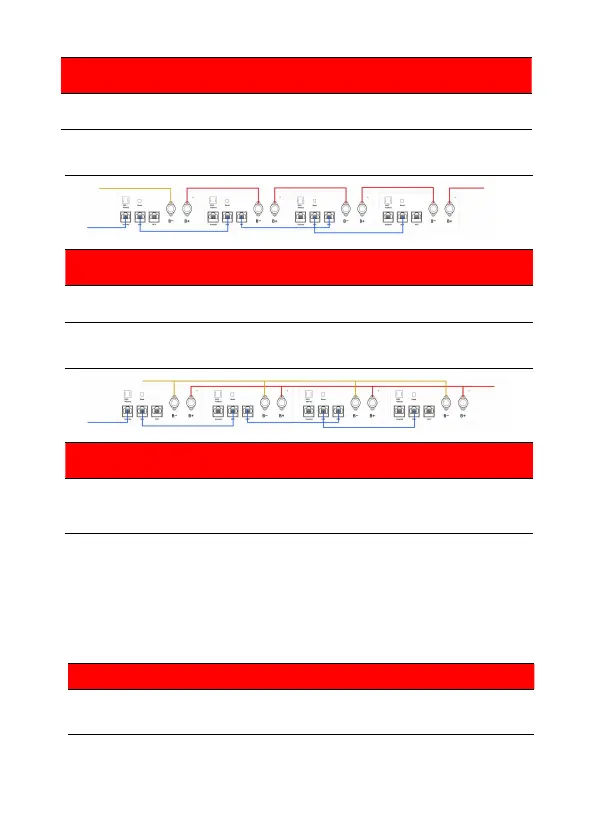

5.4.1 Cable connection for Series connection
The voltage difference of each battery should be less than 100mV.
5.4.2 Cable connection for Parallel connection
Before two or more batteries are installed in parallel, please check the voltage of
each battery and make sure the voltage difference is less than 0.5V.
6 Settings for CAN /485 bus pins
SW4 is used for CAN low signal by inverter (CANL/485B),
SW5 is used for CAN high signal by inverter (CANH/485A).
As SW1 the CAN/485 DIP switch, installers should confirm which communication is suitable
for the inverter
The battery default protocol is CAN bus. If an inverter communication mode is RS485
or other protocol, please contact customer careline before installing the battery.
7 Commissioning
