Gas Fireplace Insert
10002964
KT210
Install bay front
3/19/01 djt
KT210a

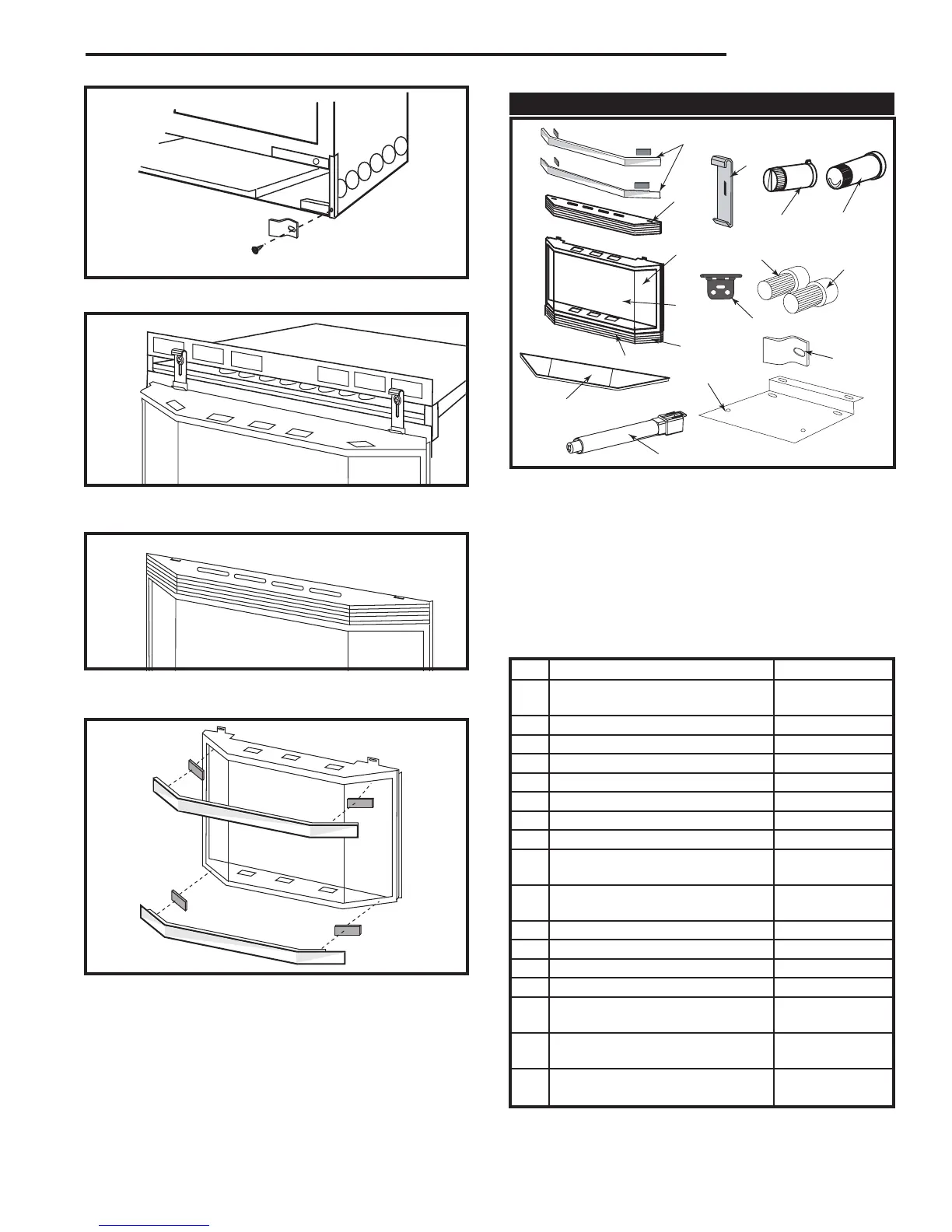

Fig. 34 Hang the window grille or the steel frame onto the
lower tabs of the hanging brackets.
KT211a
Install bay front
upper grille
2/4/03 djt
KT211a
Fig. 35 Engage the slots in the upper grille top louvre with
the upper tabs of the hanging brackets.
KT212a
Attach Brass Trim
3/4/03 djt
KT212a
Fig. 36 Attach magnets and brass trim to the steel frame.
FP1270
Fig. 33 Bracket for HEBTKP.
HI
LO
0801trim parts
2/03
1
2
8
4
17
15
16
5
10
9
11
12
13
6
7
3
HE25BTKP Replacement Parts
0801
CFM Corporation reserves the right to make changes in design,
materials, specifications, prices and discontinue colors and products
at any time, without notice.
IMPORTANT: Only trim panel assemblies approved
by CFM Corporation can be used on these prod-
ucts.
ALL repair parts will be available from your local dealer.
When ordering, always give the following information:
Model and serial number, part description with finish
and part number.
Key Description HE25BTKP
1 Trim Window Top & Bottom
(w/magnets) 10000779
2 Top Louvre Assembly 10000780
3 Bottom Louvre Assembly 10000787
4 Control Door 10000786
5 Hinge 52356
6 Glass Side 10000388
7 Glass Front 10000389
8 Ceramic Refractory Bay 10000529
9 Extension Knob On/Off
(only for RN/RP valves) 55163
10 Extension Knob Hi/Lo
(only for RN/RP valves) 55162
11 Bracket Hanging Bay Window 1409129
12 Bracket Extension Rheostat 1409146
13 Bracket Mounting Bay Window 57877
14 Hardware Package (Not Shown) 10000530
15 Extension Knob Hi/Lo
(Honeywell Valve) 20000006
16 Extension Knob On/Off
(Honeywell Valve) 20000007
17 Extension Knob Piezo Ignitor
(Honeywell Valve) 20001427
