FUEL SYSTEM (EFI) 3-75
Throttle Body Assy
After removing the throttle body assy, stuff pieces of
lint-free, clean cloth into the throttle body holders.

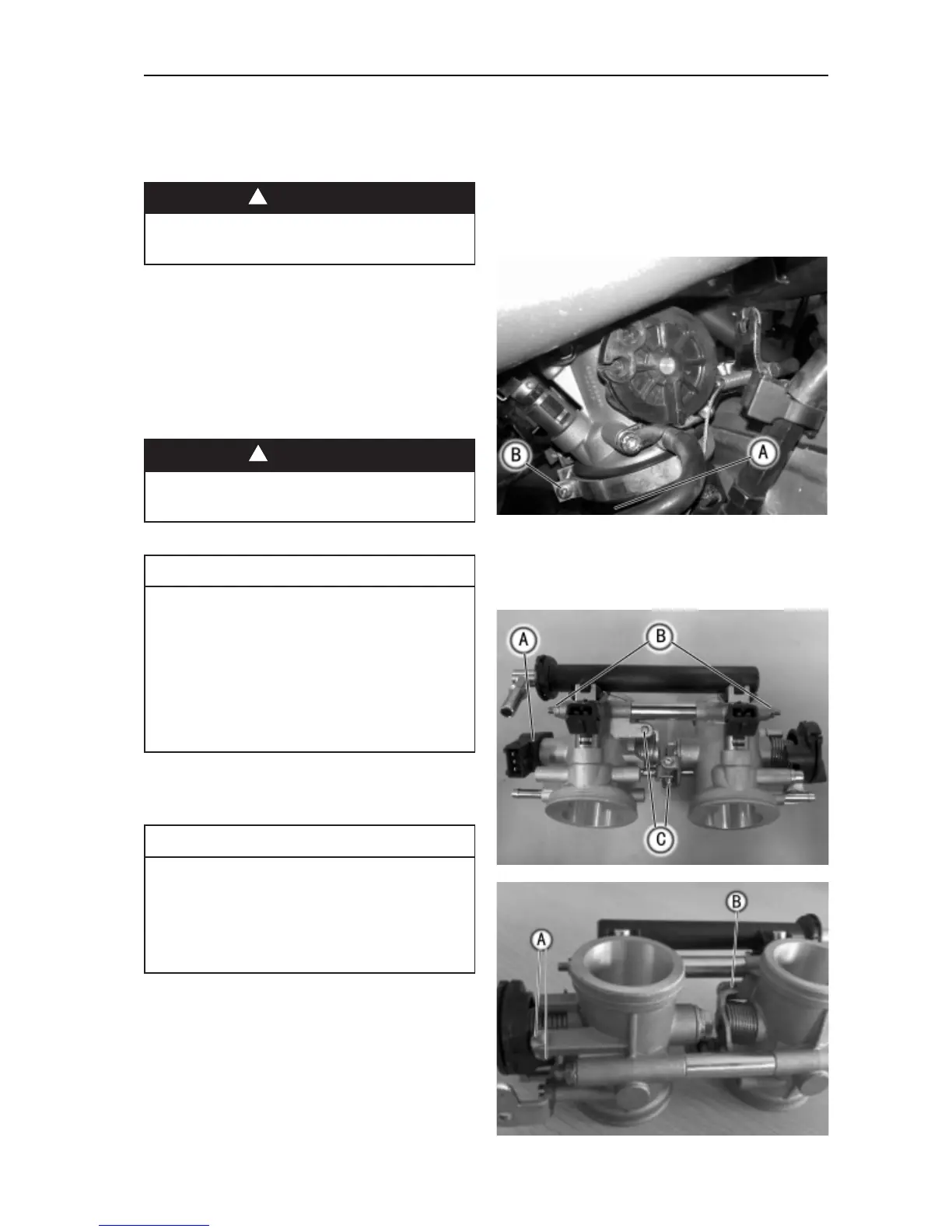

Throttle Body Assy Installation
Istall the throttle body on the intake manifold [A].
Install the holder clamp bolts [B] in the direction
shown with each bolt heads [B], facing outwards.
Install the fuel injector connector, evaporative emis-
sion control hose, throttle cable, high pressure fuel
line joint.
If dirt gets into the engine, excessive engine
wear and possible engine damage will occur.
GNINRAW
Operation with an incorrectly routed cable
could result in an unsafe riding condition.
GNINRAW
Do not remove, disassemble or adjust the
throttle position sensor [A], throttle link mecha-
nism [B] and throttle pulley [C], because they
are adjusted or set at the manufacturer. Ad-
justment of these parts could result in poor
performance, requiring replacement of the
throttle body assy.
NOITUAC
Do not remove, disassemble or adjust the idle
adjusting screw [A], [B], because they are ad-
justed or set at the manufacturer. Adjustment
of these parts could result in poor performance,
requiring replacement of the throttle body assy.
NOITUAC
!
!
