3-76 FUEL SYSTEM (EFI)
Throttle Body Assy Disassembly
Throttle Body Assy Disassembly

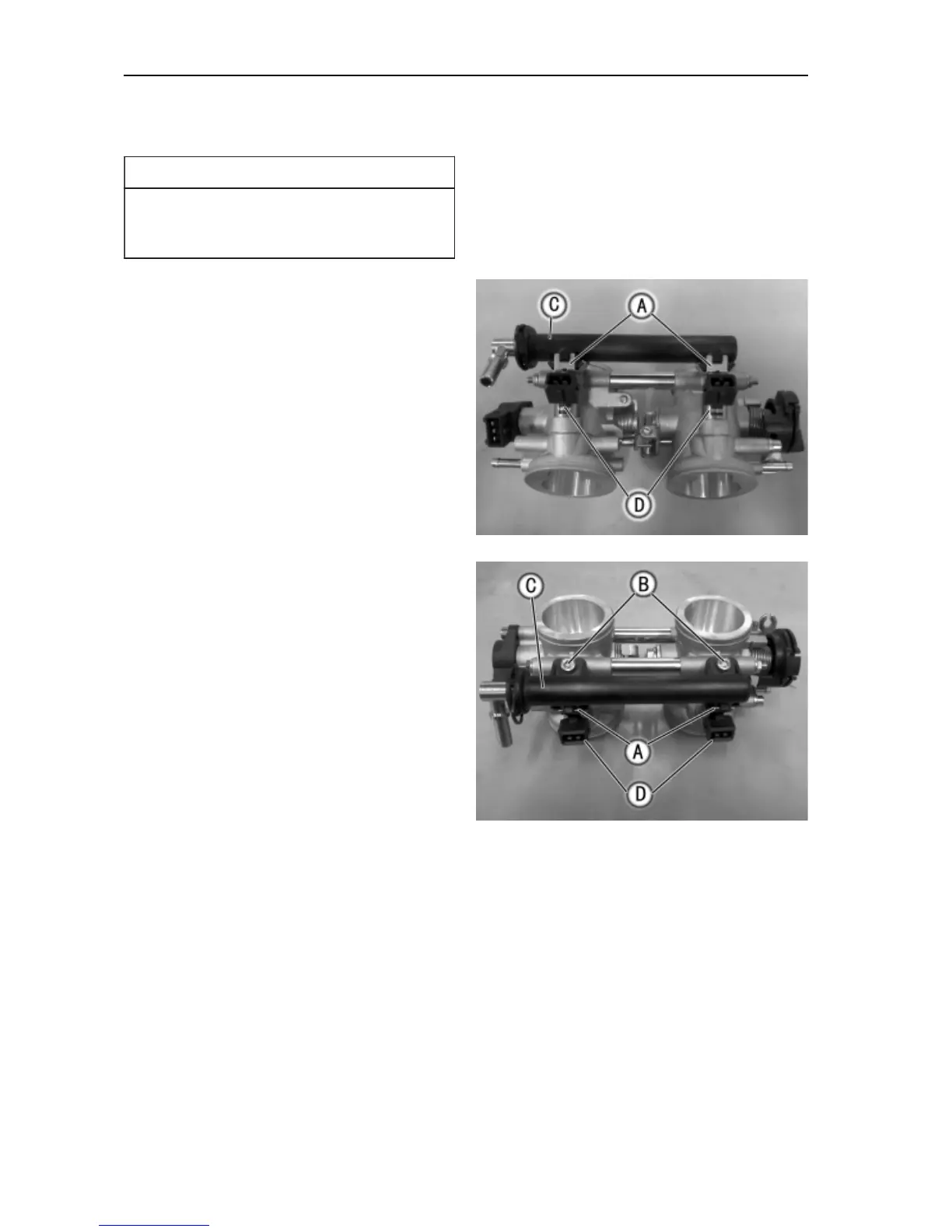

 Install the fuel injector [D] and have it securely
seated.
 Apply engine oil to the new O-rings of each injector.
 Install the fuel rail [C].
 Install the fuel rail bolts [B].
 Install the fuel injector clamp [A].
Fuel Rail Bolt Tightening Torque: 5~7N.m
Throttle Body Assy
Never drop the throttle body assy , especially
on a hard surface. Such a shock to the body
assy can damage it.
NOITUAC
 Remove the fuel injector clamps [A].
 Remove the fuel rail bolts [B].
 Remove the fuel rail [C].
 Remove the fuel injector [D].
