PERIODIC MAINTENANCE 2-15
WARNING
Clean the element in a well-ventilated area,
and make sure that there are no sparks or
flame anywhere near the working area.
Because of the danger of highly flammable
liquids,do not use gasoline or a low-flash
point solvent to clean the element.

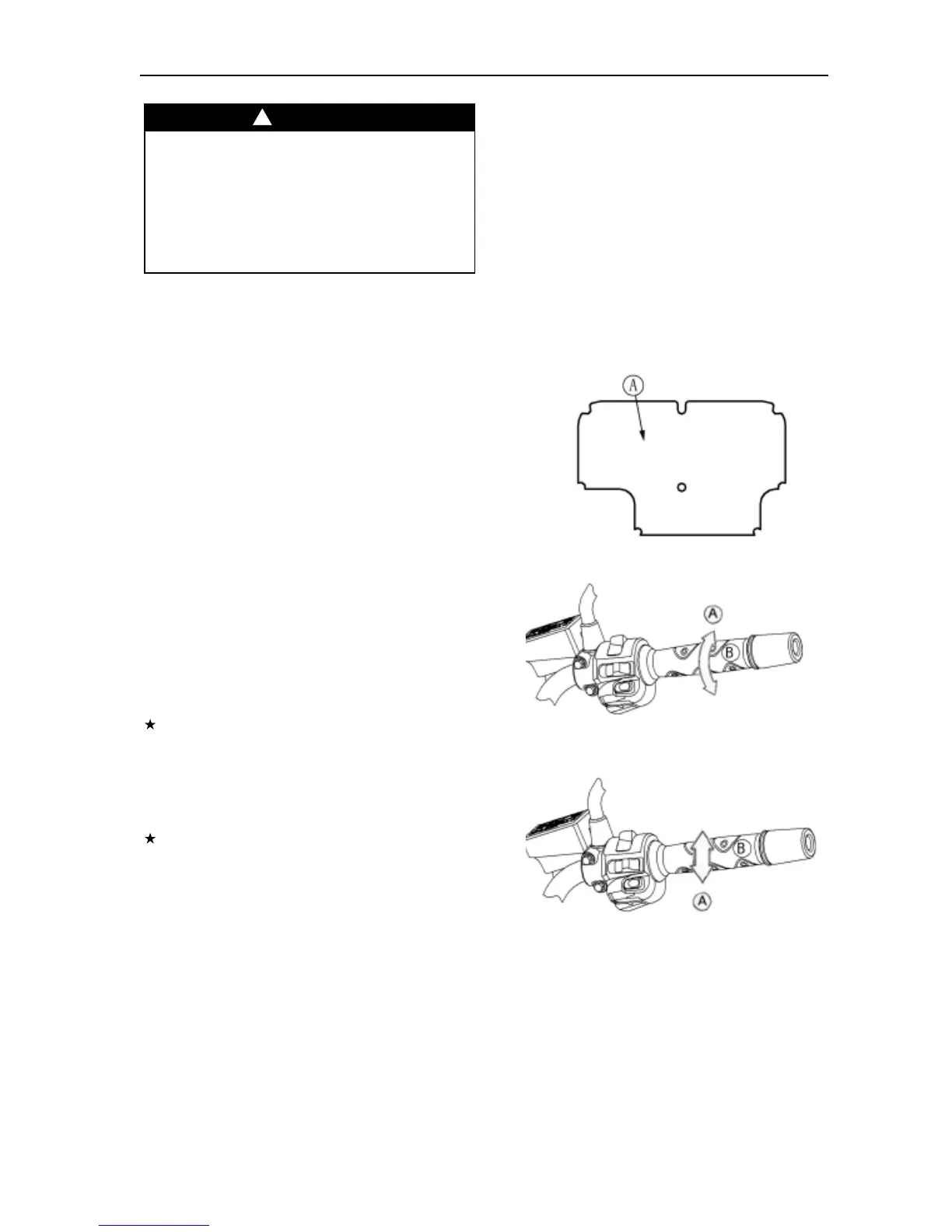

Throttle Control System Inspection
Check that the throttle grip moves smoothly from
full open to close [A], and the throttle closes
quickly and completely by the return spring in all
steering positions.
If the throttle grip doesn’t return properly, check
the throttle cable routing, grip free play, and cable
damage. Then lubricate the throttle cable.
Check the throttle grip free play [A].
If the free play is incorrect, adjust the throttle
cable.
Throttle Grip Free Play
Standard: 2~3 mm(0.08~0.12in.)
Clean the element element [A] in a bath of high-
flash point solvent, and then dry it with com-
pressed air or by shaking it.
After cleaning, saturate a clean, lint-free towel with
SE, SF, or SG class SAE 30 oil and apply the oil
to the element by tapping the element outside
with the towel.
Visually check the element for tears or breaks.
If the element has any tears or breaks, replace
the element.
lnstall the element unit [A] with the foam element
outside (gray) facing down.
!
