15-10 FRAME
Rear Fender Front Removal

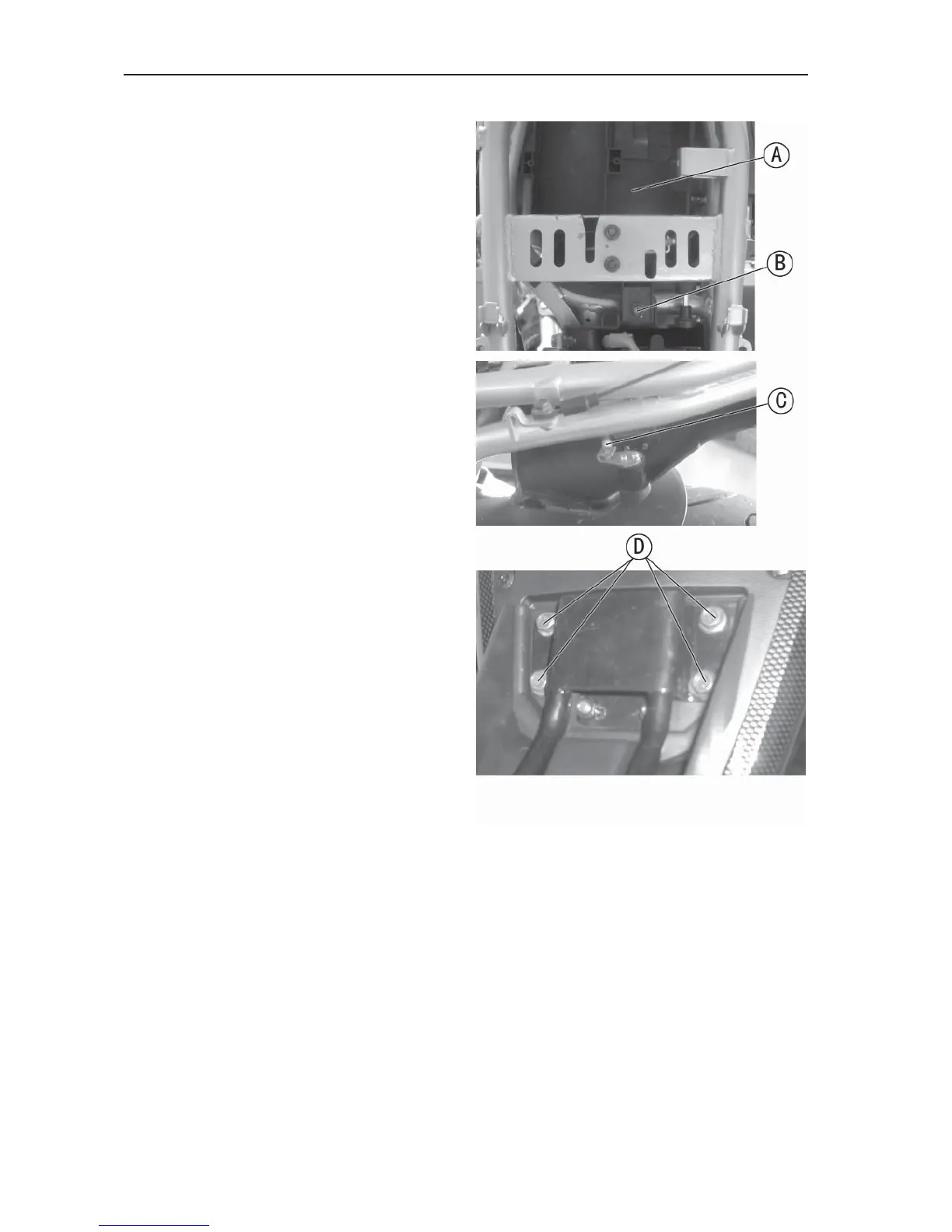

● Remove:
Tail/Brake Light, Turn Signal Lights (Tail/Brake
Light, Turn Signal Lights Removal)
Battery (see Battery Removal in the Electrical
System chapter)
Relay Box (see Relay Box Removal in the
Electrical System chapter)
Starter Relay (see Starter Relay Inspection in the
Electrical System chapter)
ECU (see ECU Removal in the Electrical System
chapter)
Screw [B]
Bolt [D]
License Plate Light Connector
Rear Fender Front Installation
● The installation is the reverse of the removal.
● Install the removed parts (see appropriate
chapters).
To Next Page
