87
2
CAUTION
Always use a fuse of the specified amper-
age. Never use any material in place of the
proper fuse. Using an improper fuse can
cause damage to the electrical system and
may lead to a fire.

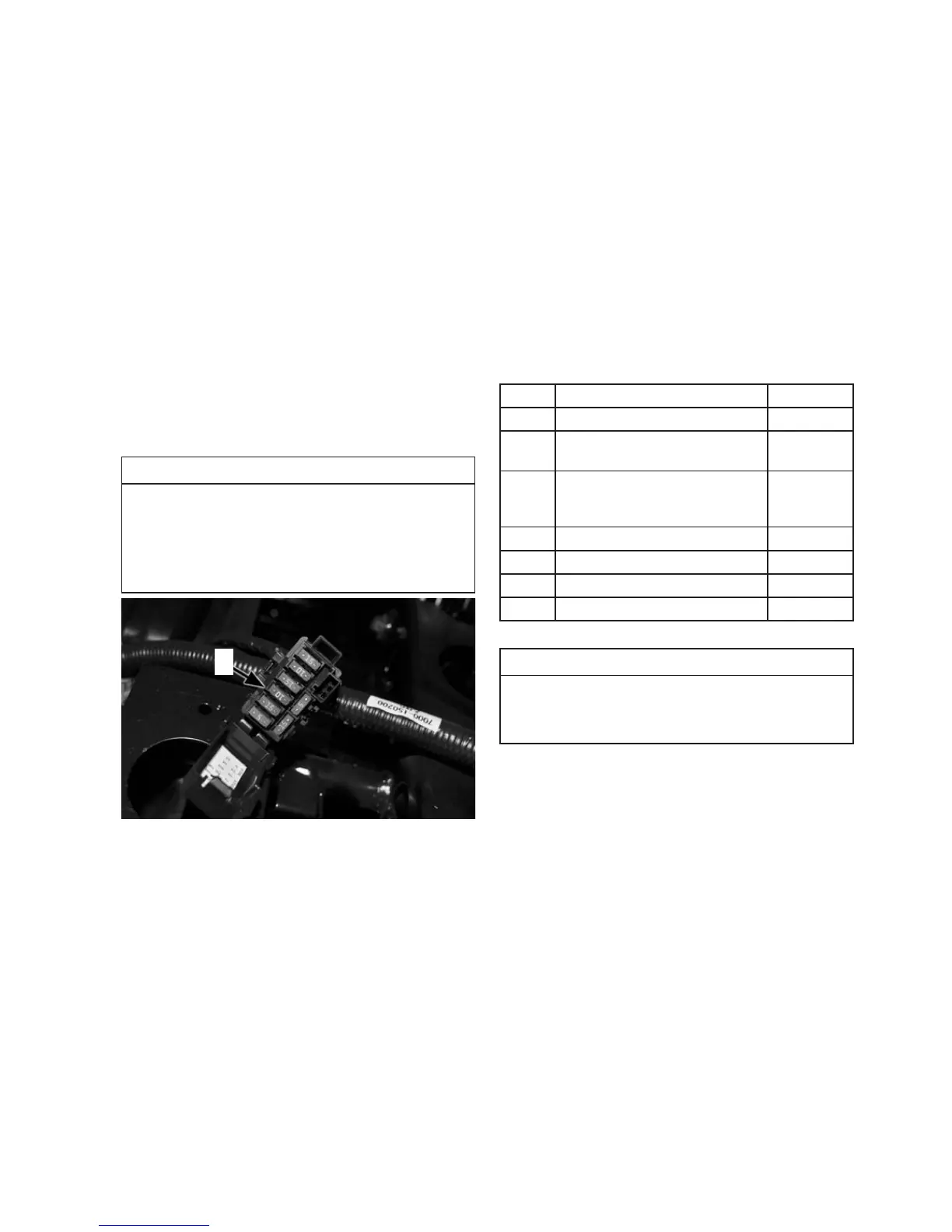

2. Fuse box
Ref FUSE RATING
F1 Main fuse 25A
F2
Fuel pump/EFI/ignition power
supply/auxiliary starter relay
15A
F3
Turn signal/position light/
dashboard/ horn/diff. gear
motor relay
10A
F4 DC outlet/MP3/navigator 15A
F5 ECU power supply 5A
F6 Fan motor 15A
F7 Headlight 10A
CAUTION
To prevent accidental short-circuiting, turn
off the main switch when checking or re-
placing a fuse.
switch. Install the specified fuse and turn
on the ignition switch. If the fuse is blown
again, consult your dealer.
