Challenge Xtreme XSS40A User Manual

7
ASSEMBLY
WARNING! Two men are required
to take the lawn mover out of
carton. Make sure that you have
suffi cient space to put the lawn mower
down. Keep your feet apart so that you
have a stable position, bend at the knees
and keep your back straight.

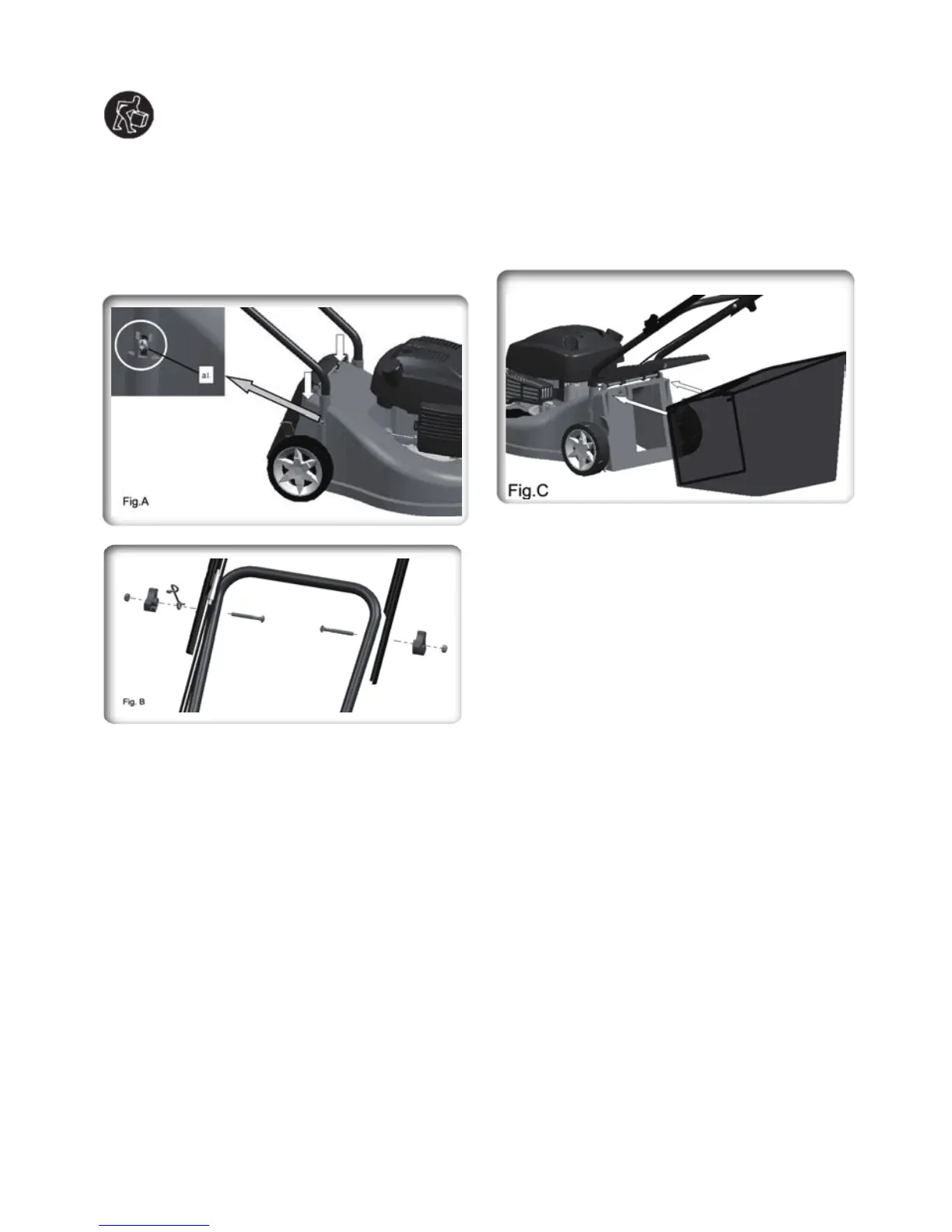

1. Assembly of the handle (F i g. A, B)
1) Remove the packaging from the
handle.
2) Insert the lower handle into the deck
as shown and
on each side.
fi x it with a self - tapping screw
3) Lift the upper handles, align it with
the lower handle making sure the cables
are not twisted, fasten them by using
the bolts and wing handle tension knobs
included in carton box. Make sure the rope
guide is on the right hand side.
4) Make sure the lower and upper
handles are tightened fi rmly.
2. INSTALL THE GRASS COLLECTION
BAG (Fig. C)
Raise the safety fl ap, and hook the
collection bag onto the mower as shown
in Fig. C.
Release the safety fl ap.
Note: always fit the grass collection bag
before start the engine.
Firstly assembly the grass bag to the frame by
fixing all plastic hooks.
