79033093 D Rev. 01-27
Introduction
Bottom Guards

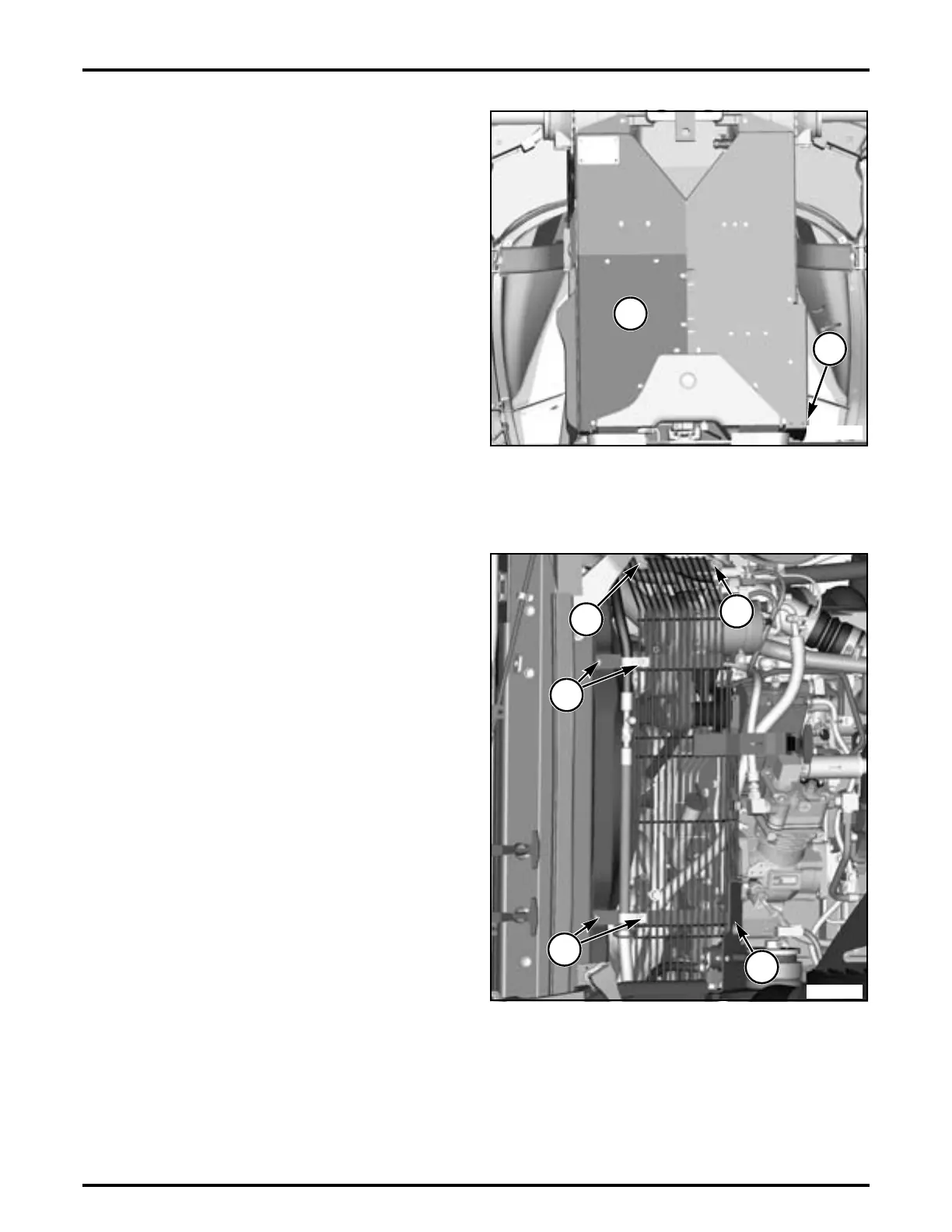

FIG. 37: Support guard (1) with proper lifting device
before removing. Remove seven bolts and washers from
shield (1) to lower shield (1).
Remove two bolts from guard (2).
Install guards in reverse order they were removed.
Engine Screen Cover
Left Hand Side
FIG. 38: Remove bolts securing engine screen (1).
FIG. 37
FIG. 38
