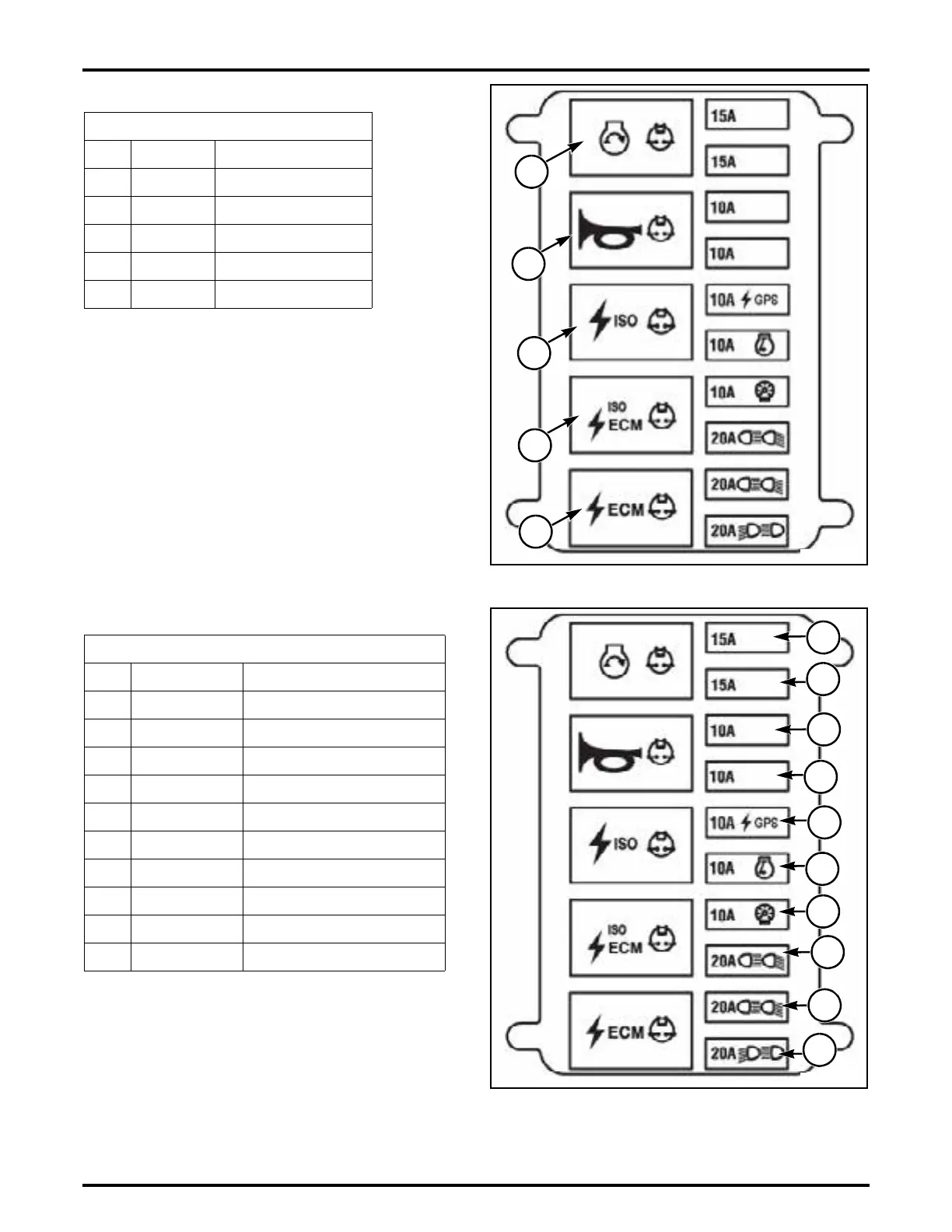

FIG. 46: Fuse/Relay Block 2
FIG. 47: Fuse/Relay Block 2
FIG. 46
P101411015
1
2
3
4
5
Fuse/Relay Block 2
Item Relay Description
1 35 Amp Neutral Start Relay
2 35 Amp Horn Relay
3 35 Amp ISO Power Relay
4 35 Amp ISO ECU Relay
5 35 Amp ECU Relay
FIG. 47
P101411015
1
2
3
4
5
6
7
8
9
10
Fuse/Relay Block 2 - ECU Relay Power
Item Fuse Description
1 15 Amp Not used
2 15 Amp Not used
3 10 Amp Not used
4 10 Amp Not used
5 10 Amp GPS
6 10 Amp Armrest
710 Amp Dash
8 20 Amp Rear Light Module
9 20 Amp Rear Light Module
10 20 Amp Front Light Module
