SERPENTINE BELT REPLACEMENT
m
WARNING: Hot engine components can
cause injury from burns. Before performing
maintenance on the engine, allow the
engine and the components to cool.
Serpentine Belt Removal
m
WARNING: Hot engine components can
cause injury from burns. Before performing
maintenance on the engine, allow the
engine and the components to cool.

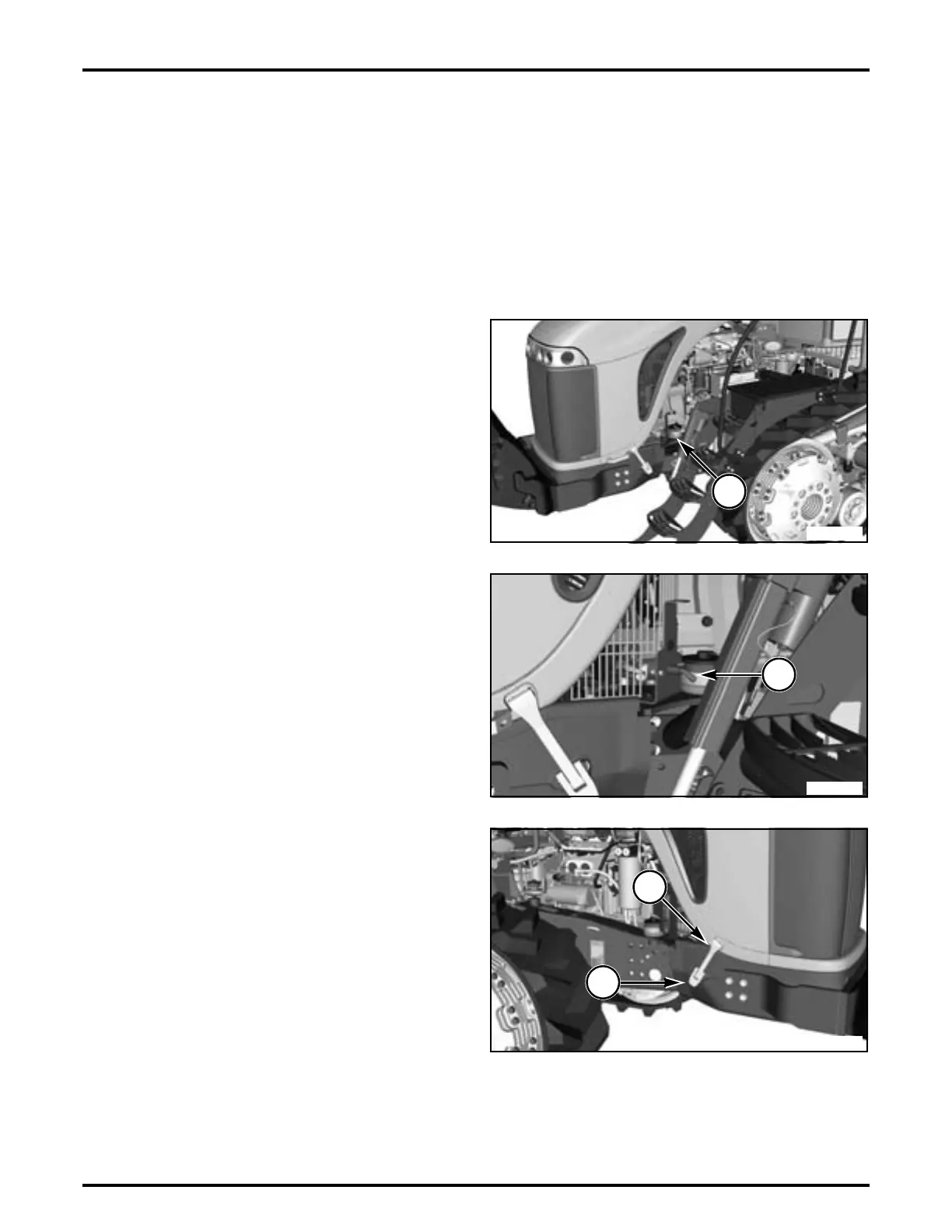

FIG. 1: Battery disconnect switch.
IMPORTANT: Park the machine on a hard, level surface.
Location of battery disconnect switch (1).
FIG. 2: Disconnect battery power at battery disconnect
switch.
Rotate and remove key (1) to disconnect the battery
power.
FIG. 3: Lift right-hand side latch lever up (1) and remove
latch (2) from keeper. Repeat on left-hand side.
FIG. 1
FIG. 2
FIG. 3
