Challenger MT755C

Engine Components
02-6 79033093 D Rev.
Serpentine Belt Installation

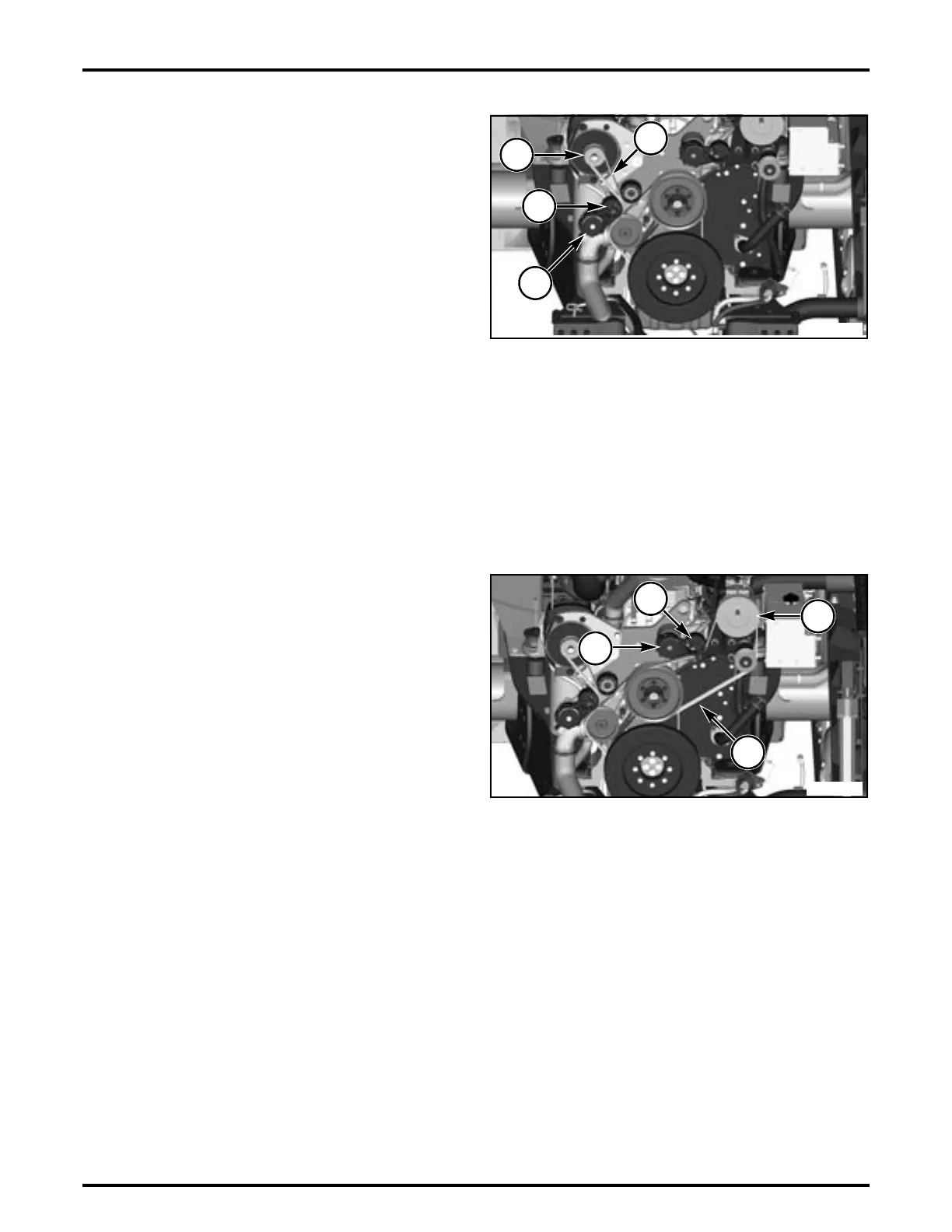

FIG. 9: Alternator serpentine belt install.
NOTE: Skip this step if the alternator serpentine belt was
not removed.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in applying pressure to belt
tensioner.
Carefully install alternator serpentine belt over the fan.
Install serpentine belt (3) over pulleys on front of engine,
leaving serpentine belt off of alternator pulley (4). Ensure
that belt ribs are properly seated in pulley valleys.
Insert square drive of ratchet into square hole (1) on belt
tensioner (2) and rotate tensioner counter clockwise and
hold.
NOTE: Be sure to allow enough room for the swing of the
ratchet to allow belt tensioner to relax into a
neutral position.
Carefully place belt onto alternator pulley (4) ensuring belt
ribs are properly seated in pulley valleys and slowly allow
belt tensioner to release until belt tensioner makes
contact with belt. When the belt tensioner has tensioned
the serpentine belt remove ratchet.
FIG. 10: Air conditioning compressor serpentine belt
install.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in releasing belt tension.
Install air conditioning serpentine belt (3) over pulleys on
front of engine, leaving air conditioning serpentine belt off
of the air conditioning compressor pulley (4). Ensure that
belt ribs are properly seated in pulley valleys.
Insert square drive of ratchet into square hole (1) on belt
tensioner (2) and rotate tensioner counter clockwise and
hold.
NOTE: Be sure to allow enough room for the swing of the
ratchet to allow belt tensioner to relax into a
neutral position.
Carefully place belt onto air conditioning compressor
pulley (4) ensuring belt ribs are properly seated in pulley
valleys and slowly allow belt tensioner to release until belt
tensioner makes contact with belt. When the belt
tensioner has tensioned the serpentine belt remove
ratchet.
FIG. 9
P012306003
1
2
3
4
FIG. 10
P012306002
1
2
3
4
