Engine Component
02-12 79033095 C Rev.

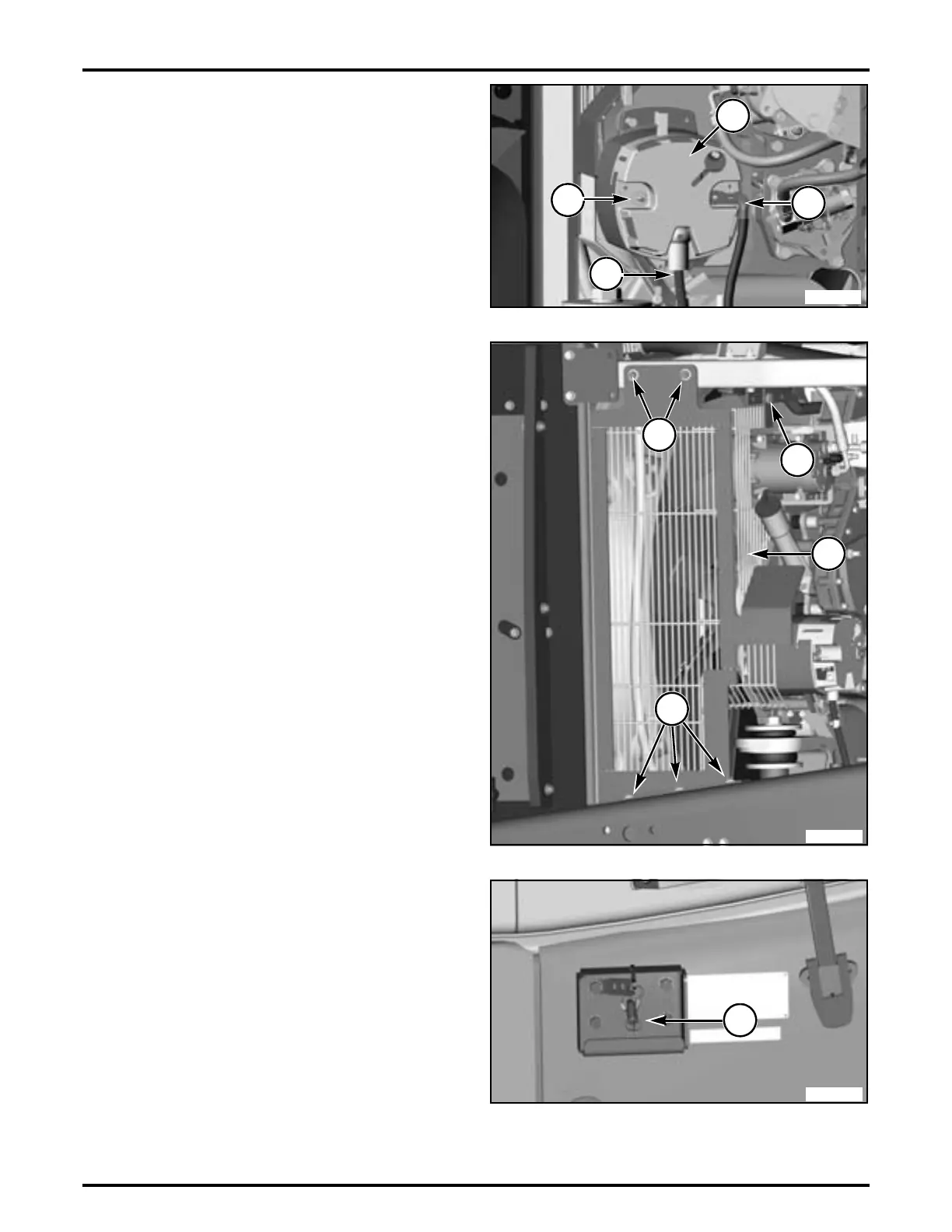

FIG. 21: Install wiring.
Mark and remove wiring (1), (2) and (3) from alternator
(4).
Connect electrical wires (1), (2) and (3) to posts on back
of alternator (4).
Position protective boot over power terminal (2).
FIG. 22: Install left guard.
NOTE: This step can be skipped if the left guard was not
removed.
Install guard (2) and install bolts and washers (1) and
tighten. Tighten to 55 Nm (40 lbf ft).
FIG. 23: Connect battery at battery disconnect switch.
Insert and rotate key (1) to connect the battery power.
FIG. 21
FIG. 22
FIG. 23
