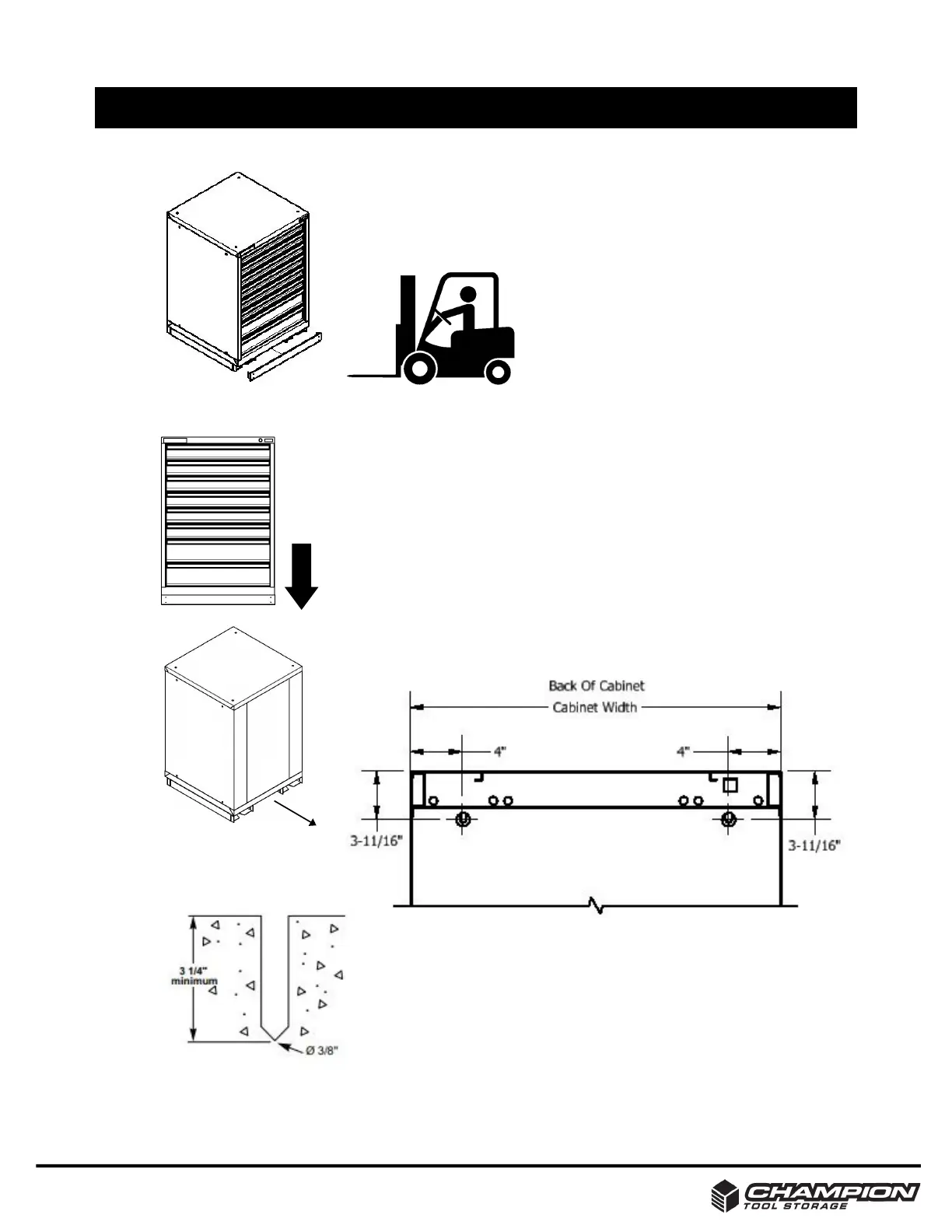

Fig. 1
Fixed cabinets must be anchored to the floor. Install (2) 3/8
anchors into the floor using the layout in Fig.1. After anchors are
installed, slide cabinet into the anchors and secure nut and
washer to the cabinet with 9/16" deep socket. If you do not have a
base, lower cabinet into place and secure cabinet to the anchor
with 9/16" deep socket.
Installation
THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY
1.
Use forklift or pallet jack to move and set cabinet in place.
Cabinet must be locked while moving. If a base is supplied,
remove front cover for access.
2.
PART NO. 1000617
