Champion Modular Series - Removing and Installing Drawers; Cabinet Ganging

Remove drawers as need for access to secure concrete anchor
to cabinet base. Note, unit must be in the unlocked position.

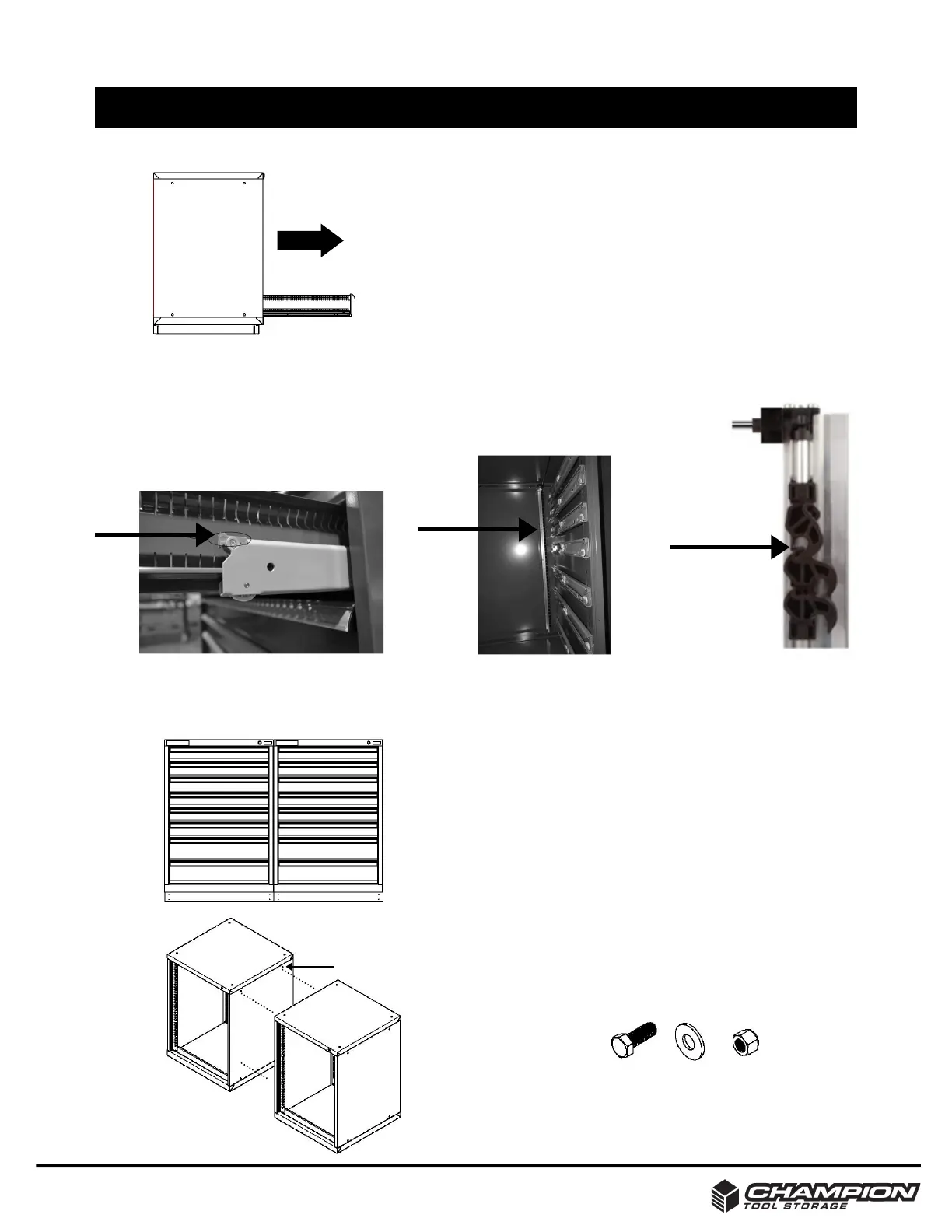

To remove drawer, extend drawer to full extension. Pull
gray lock out on middle slide member, see Fig. 2. Pull drawer
out and lift over drawer slide stop as needed to remove. To
remove more than one drawer, reach in and push the lock
pawl in on the locking mechanism. This may require us of a
rod to reach the unit, See Fig. 3 and Fig. 4. To install drawer,
reverse removal step. Note when installing drawers, there is
no need to reset the locking mechanism or alter the position
of the pawls.
Push pawl in to
match pawls
below
Cabinet Ganging
Remove drawers, see step 3. Punch out the knockouts on
the side of the cabinet using a punch and hammer, See
Fig. 5. Align cabinets so that the front and top are flush.
Use hardware shown in Fig. 6. Install all drawers.
Installation
Lockingmechanism
THIS DOCUMENT IS CONFIDENTIAL AND PROPRIETARY
3.
Fig. 2
4.
Fig. 3 Fig. 4
Knockout, 4 places
Fig. 5
Ganging Hardware Kit
Part #7001257
Fig. 6
X 4 X 8 X 4
PART NO. 1000581
