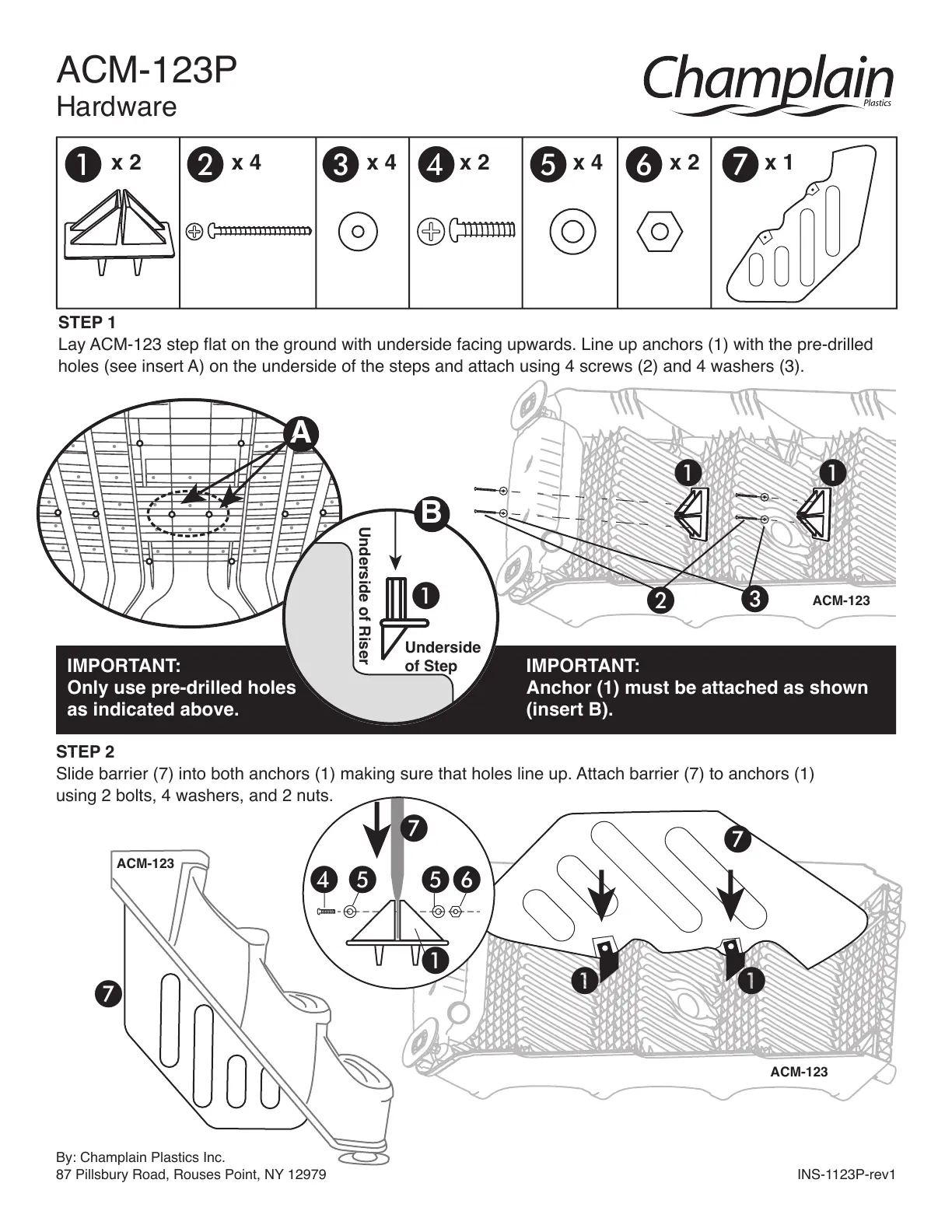

Champlain ACM-123-2 - ACM-123 P Barrier Installation; Step 1: Attach Anchors to Step; Step 2: Install Barrier

A
ACM-123P
Hardware
x 2 x 4 x 2 x 4
! "
x 4
# $ %
x 2
&
x 1
'
By: Champlain Plastics Inc.
87 Pillsbury Road, Rouses Point, NY 12979 INS-1123P-rev1
STEP 1
Lay ACM-123 step flat on the ground with underside facing upwards. Line up anchors (1) with the pre-drilled
holes (see insert A) on the underside of the steps and attach using 4 screws (2) and 4 washers (3).
IMPORTANT:
Anchor (1) must be attached as shown
(insert B).
IMPORTANT:
Only use pre-drilled holes
as indicated above.
STEP 2
Slide barrier (7) into both anchors (1) making sure that holes line up. Attach barrier (7) to anchors (1)
using 2 bolts, 4 washers, and 2 nuts.
! !
'
ACM-123
!
$ % %&
'
'
ACM-123
Underside
of Step
Underside of Riser
!
B
! !
#
"
ACM-123
