M201 2014.01
2.3.2-11 2.3.2-11Rear Drum Brake
Brake Wheel Cylinder
Material
Removal
Item Type
Brake fluid HZY 3 or HZY 4
1. Remove the rear wheel.
Refer to: Wheel and Tire (2.1.4 Wheel and
Tire, Removal and Installation).
2. Remove the brake drum.
Refer to: Brake Drum (2.3.2 Rear Drum
Brake, Removal and Installation).
3. Remove the brake shoe.
Refer to: Brake Shoe (2.3.2 Rear Drum
Brake, Removal and Installation).

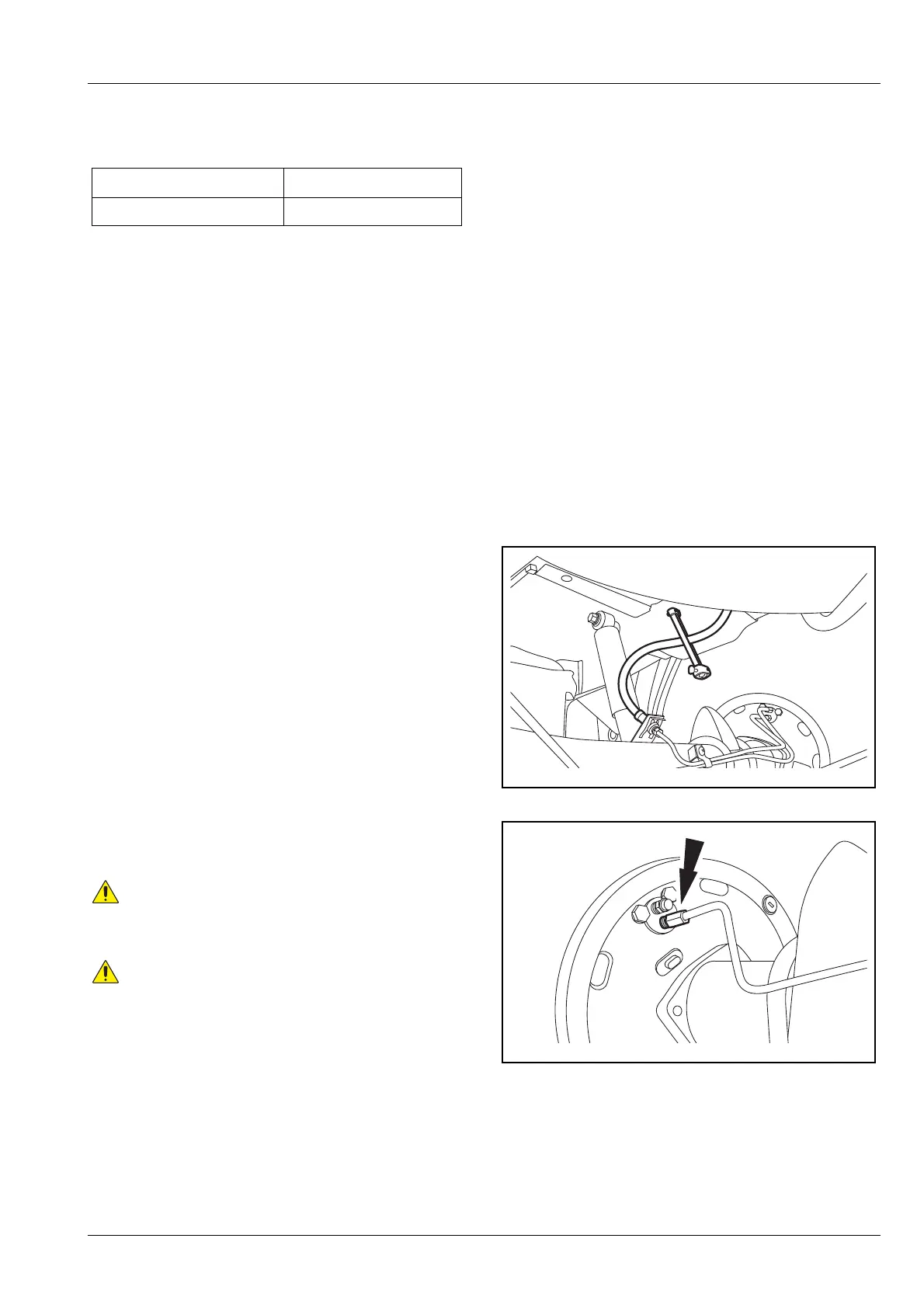

4. Clamp the brake hose at rear axle with oil
pipe clip.
5. Remove the brake wheel cylinder pipe.
Tor qu e: 16 ± 2 Nm
CAUTION: Remove 2 pipes when
removing the rear right brake wheel
cylinder.
CAUTION: If brake fluid is splashed on the
paintwork, the affected area must be
immediately washed with cold water.
To Next Page
