TM
CHAN N E L V I SIO N
by
IN
OUT
1
2
3
4
BRN
WHT/BRM
BLU
WHT/BLU
GRN
WHT/GRN
ORG
WHT/ORG
Source
CHA NNE L VI SIO N
Pwr
®
The Channel Vision A-BUS Audio system can
distribute high-quality audio to every room in your house over ordinary CAT5
data wire. Power for the entire system is delivered via the same CAT5 cable so
only a single run of CAT5 is required. Each pair of speakers is powered and
controlled from a local wall plate with a dedicated amplifier for that zone.
Volume in that zone can be controlled manually or by an infrared remote. IR
signals are also routed back to the source components enabling control of
sources and functions from any zone.

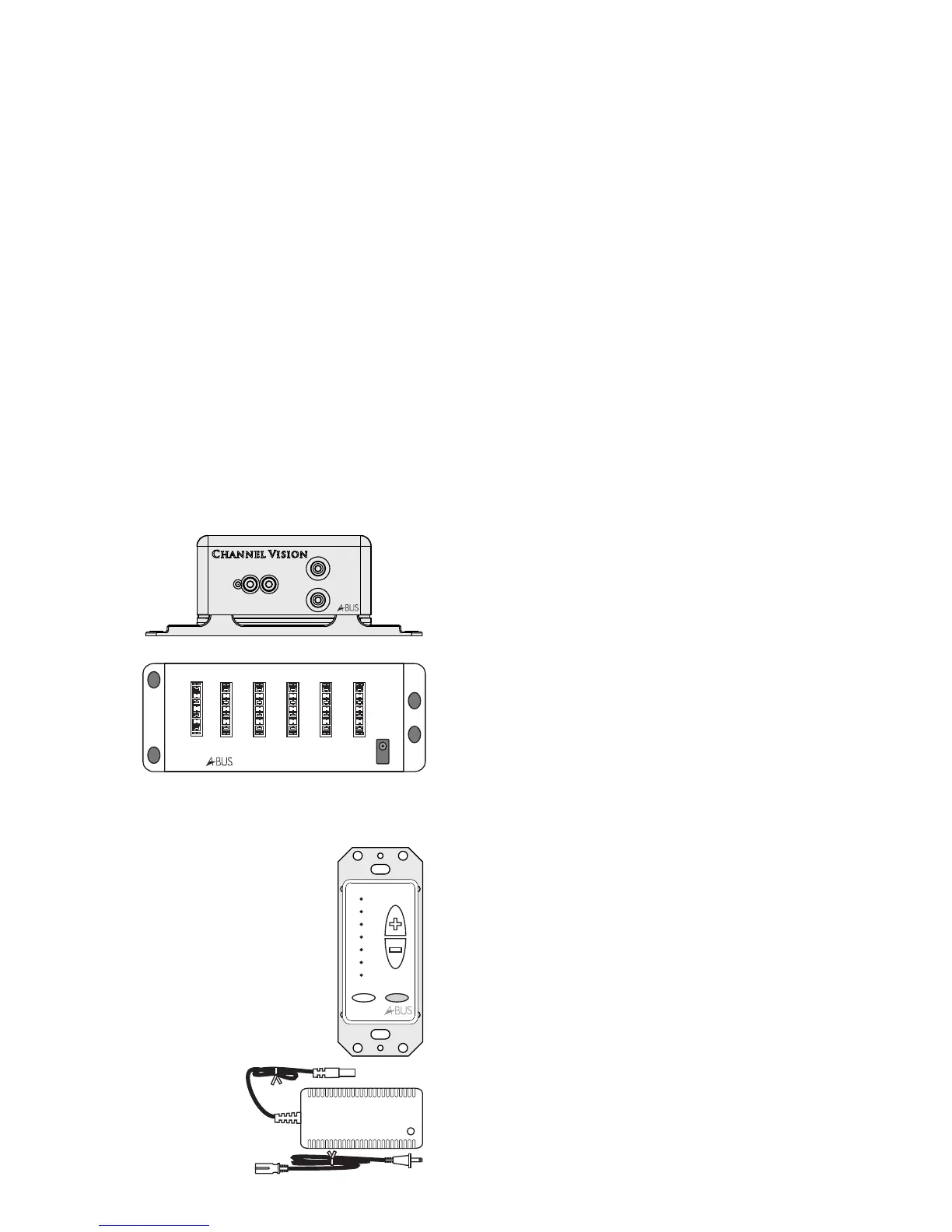

AB-203 or AB-202 ... Single Source
Module. One per system; Connects
sources to the system; Mount the unit
near audio components (CD player,
receiver, etc.).
All items sold separately except where noted
AB-404 ... Distribution Module. One unit
required for every 4 amplified keypads;
All CAT5 cables terminate here; Inserts
power into system; Mount it in a
structured wire enclosure or screw it to a
wall; Compatible with enclosures from
TM ®
Channel Vision Central , OpenHouse ,
® ®
OnQ/Legrand or Leviton .
AB-124 ... Multi-source Amplified
Keypad. One per speaker pair. Drives
the speakers, controls volume and relays
IR information. Mount the AB-124 in
single gang low-voltage ring or deep J-
box (if required by code). Blue LEDs
show volume level. Pwr button allows the
keypad to be turned off and it can be
used to select sources when in multi-
source mode.
AB-T2454 ... Power supply. One is
needed for every AB-404. 120-240VAC
Required components
Optional Components
2
3
IR-3001 & IR-3002 ... Single and dual
head IR flashers. Use one head per
source to control from the remote room.
(IR-3002 shown).
A0505 ... Remote control. Designed to
control the AB-124 as well as Channel
®
Vision’s popular iBus wall docks.
AB-301 ... Universal input module. This
can be used to provide local source input
in any room and/or to replace the AB-
203. The AB-301 is a great way to enable
simple connection of local sources into
the zone - TV’s, MP3 players, computer
sources, etc.
How IR Repeating Works
Point any
IR remote control
at the AB-124
CD player
The emitter
repeats the IR signal
in the other room.
The top LED flashes as IR
information is received.
Be sure the flasher is attached directly over the component’s IR receiver.
1
2
3
4
5
6
7
8
9
0
Power
Features:
!
Independent volume control in each room
!
Built-in IR repeating
!
Local audio input capability
!
Easy installation and setup
CHA NNEL V I SION
S
O
U
R
C
E
ZONE
POWER
MUTECATV
MOD
VOL
1
2
3
4
MODEL
A0505
POWER
Line level inputs
IR emitters
Source
CH ANNEL VI SION
Pwr
IR Emitters
Audio In
AB-203
