Channel Vision AB-404 - Page 7

TM
CHA NNEL V I SI ON
by
IN
OUT
1
2
3
4
BRN
WHT/BRM
BLU
WHT/BLU
GRN
WHT/GRN
ORG
WHT/ORG
IR Emitters
Audio In
AB-203
Source
CHAN N E L V I SIO N
Pwr
Line level inputs
IR emitters
Line level inputs
IR emitters
Line level inputs
IR emitters
Line level inputs
IR emitters
6
7

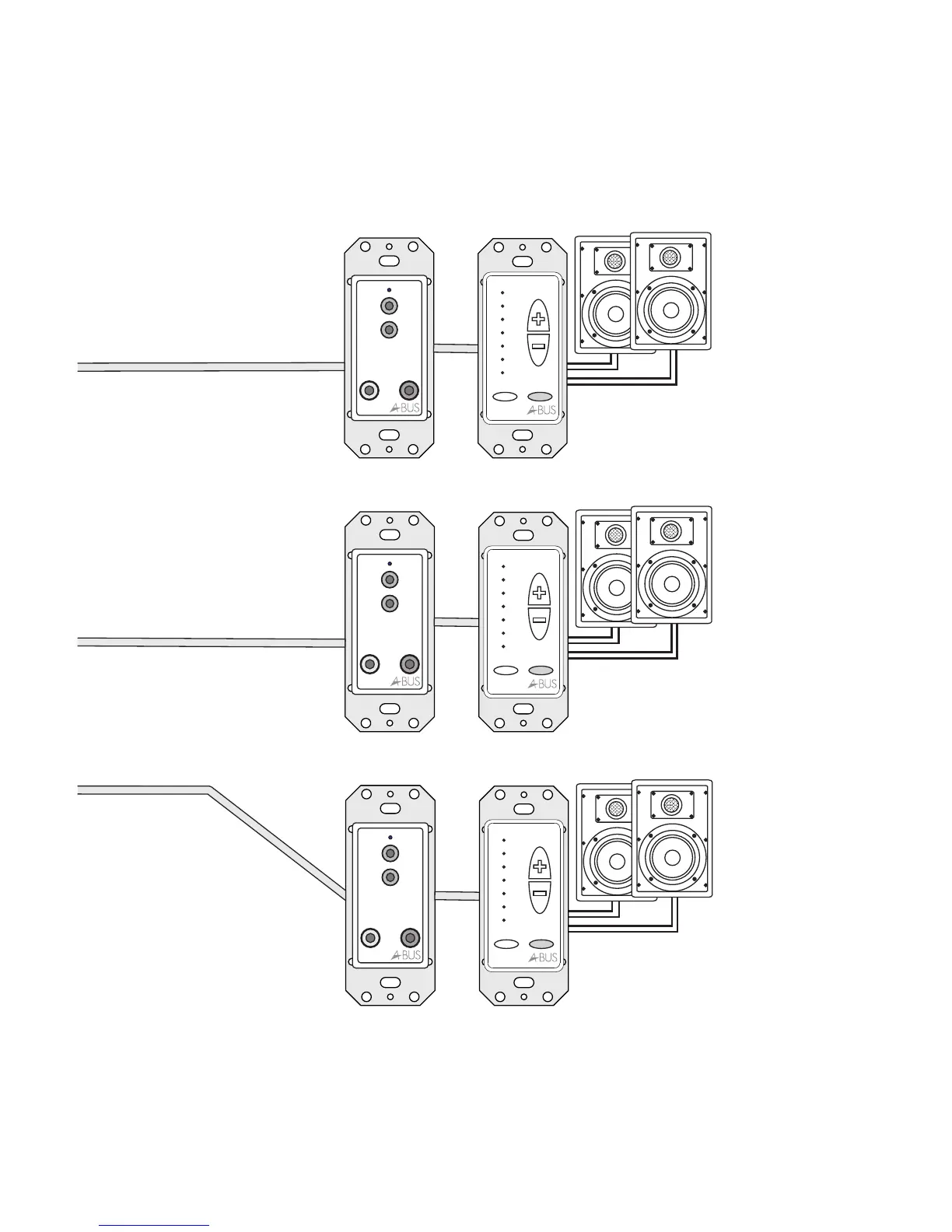

Using the AB-301 as a local source input module
Each room can listen to a different local source.
The RCA inputs on the AB-301 will override the main input source, allowing
each room to listen to a different local source.
AB-T2454
power supply
AB-203
Sat radio
AB-124
AB-301
Inputs ... IR-3002 emitters placed over
IR receiver on all sources. (IR option).
Connect audio L/R on the AB-203 to
the tape monitor output of the receiver.
DVD player
CD player
Receiver
Optional
AB-404
Room 1
Room 4
Room 3
Room 2
OUT
OUT
IN
IN
TV
Note: other sources
can also be used.
(CD or MP3 players, etc.)
Using the AB-301 as a local source input:
In this configuration, the AB-301 will sense audio coming from the TV and
interrupt the audio coming from the AB-404 whenever the TV audio is present.
This will allow the TV audio to be heard through the in-wall speakers controlled
by the AB-124.
Advanced System
CAT5 250ft. maximum
Source
CH A N NEL V I S I O N
Pwr
Source
CH A N NEL V I S I O N
Pwr
Source
CH A N NEL V I S I O N
Pwr
