2013 Chaparral SSX Owner’s Manual
Chaparral Boats, Inc.
Nashville, GA
chaparralboats.com
3-12
285 SSX
1
11
12
18
5
10
1
7
15
4
7
3
6
4
9
8
2
1
3
16
14

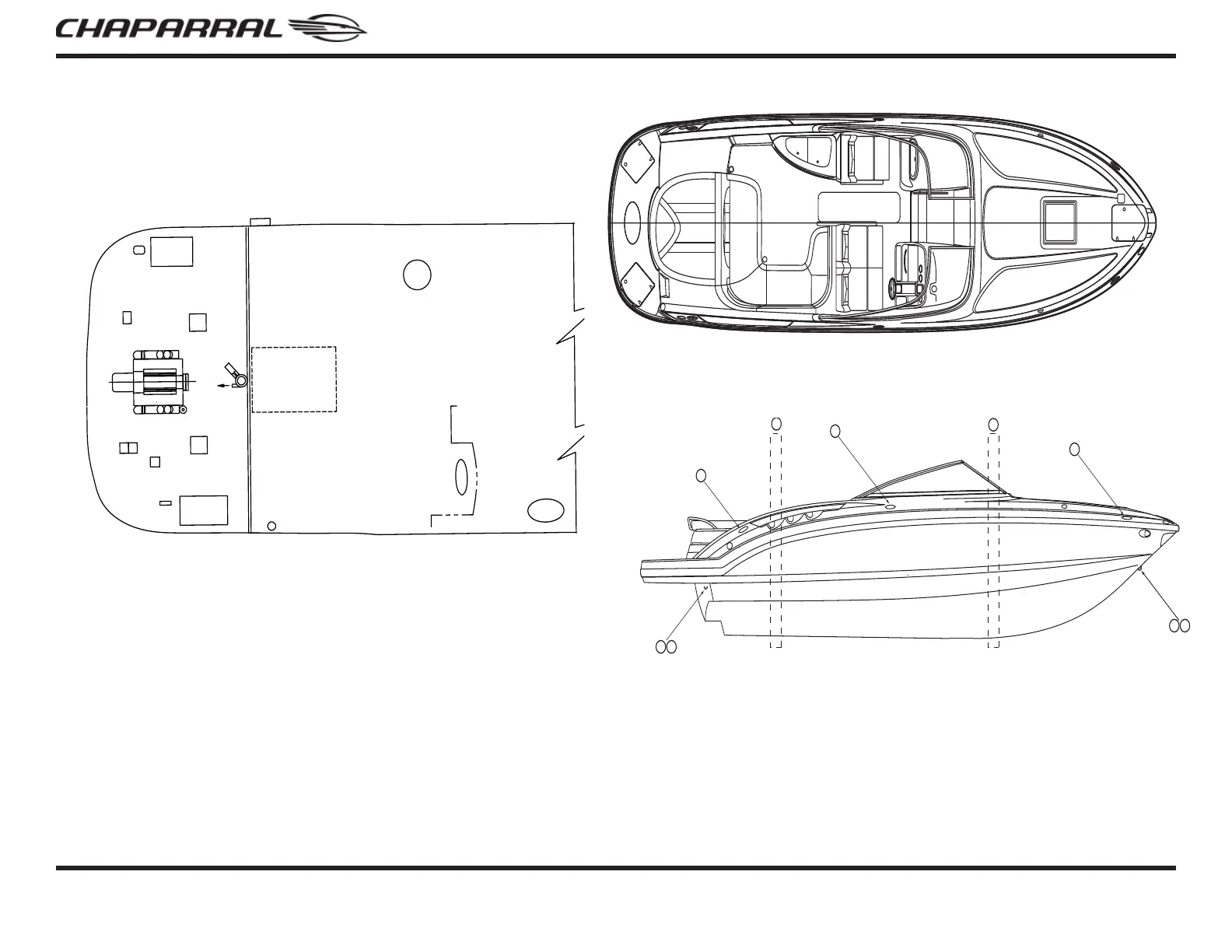

TYPICAL 285 SSX ENGINE COMPARTMENT LAYOUT
1. Bilge Pump
2. Engine
3. Blowers
4. Trim Pump (Merc)
5. Battery
6. Water Tank (optional)
7. Water Pump (optional)
8. Fire Extinguishing System (optional)
9. Steering Helm
10. Fire Port (located on side of motor box)
11. Fuel Tank
12. Euro Manual Pump
285 SSX Deck Plan View
A
A
A
B
B
A C
A C
TYPICAL SSX PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
TYPICAL 285 SSX ENGINE COMPARTMENT LAYOUT
1. Bilge pump
2. Engine
3. Blowers
4. Trim Pump (Merc)
5. Battery
6. Water Tank (optional)
7. Water Pump (optional)
8. Fire Extinguishing System (optional)
9. Steering Helm
10. Fire Port (located on side of motor box)
11. Fuel Tank
12. Euro Manual Pump
TYPICAL SSX PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
285 SSX Deck Plan View
