Chaparral 2013 SSX - Page 45

2013 Chaparral SSX Owner’s Manual
Chaparral Boats, Inc.
Nashville, GA
chaparralboats.com
3-13
287 SSX
A
A
A
B
B
A C
A C
1. Fresh Water Tank
2. Battery Selector Switch
3. Engine
4. Batteries
5. Vacuum Flush System (optional)
6. Lower Unit Trim Pump Reservoir
(Merc)
7. BlowerS
8. Fuel Tank
9. Bulkhead
10. Aft Bilge Pump
11. Water Pump and Filter
12. Fire Extinguishing System
(optional)
13. Cockpit Galley Sink
14. Steering Helm
15. Euro Manual Pump
16. Head Sink
17. Macerator (optional)
18. High Water Bilge Alarm

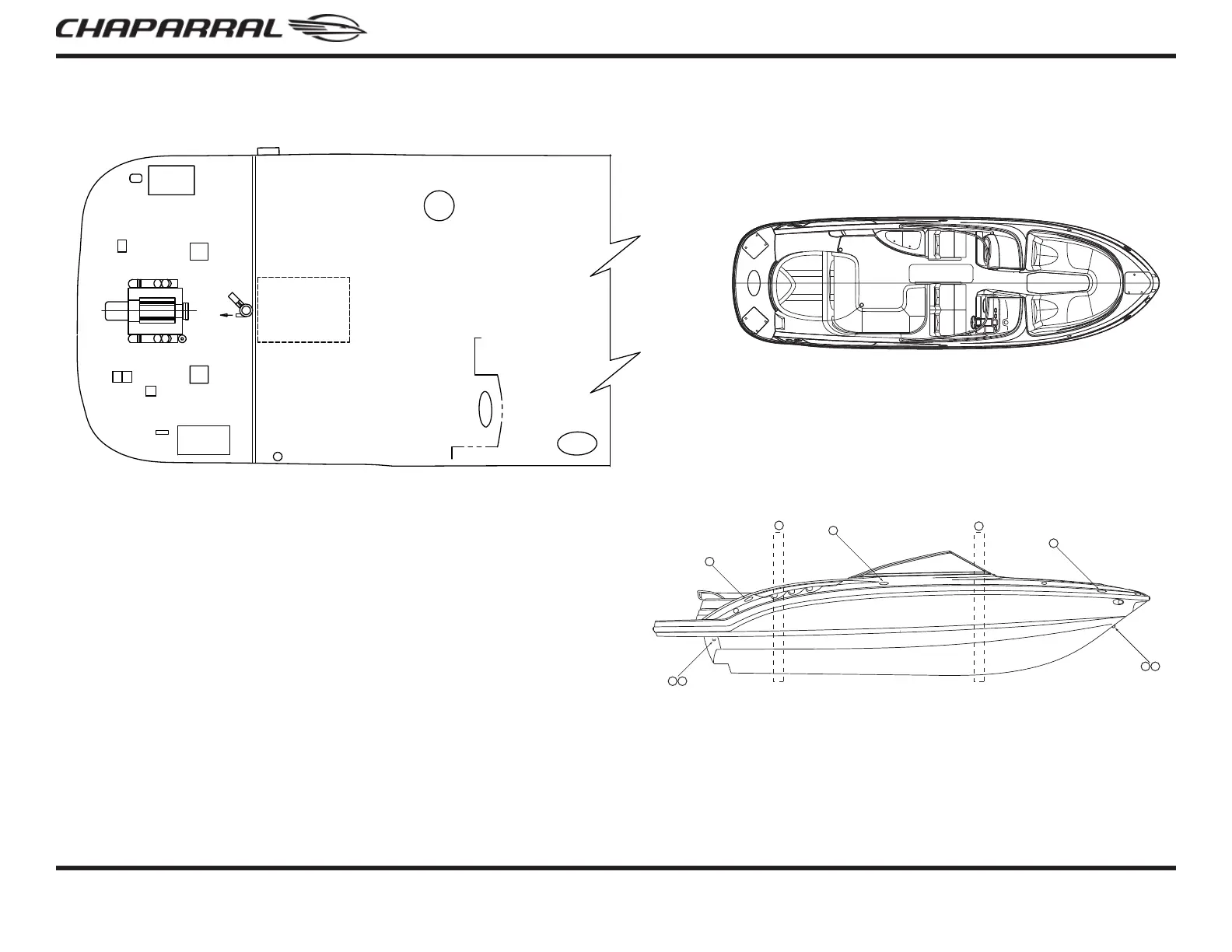

287 SSX DECK PLAN
TYPICAL SSX PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
1
11
12
18
5
10
17
15
4
7
3
6
4
9
8
2
13
16
14
TYPICAL 287 SSX ENGINE COMPARTMENT LAYOUT
TYPICAL 287 SSX ENGINE COMPARTMENT LAYOUT
1. Fresh Water Tank
2. Battery Selector Switch
3. Engine
4. Batteries
5. Vacuum Flush System (optional)
6. Lower Unit Trim Pump Reservoir (Merc)
7. Blowers
8. Fuel Tank
9. Bulkhead
10. Aft Bilge Pump
11. Water Pump and Filter
12. Fire Extinguishing System (optional)
13. Cockpit Galley Sink
14. Steering Helm
15. Euro Manual Pump
16. Head Sink
17. Macerator (optional)
18. High Water Bilge Alarm
TYPICAL SSX PROFILE
A - Strong points for anchoring or docking
B - Sling locations
C - Trailering eye
287 SSX DECK PLAN
