Chaparral SSI 204 - User Manual

Chaparral SSI 204
146 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

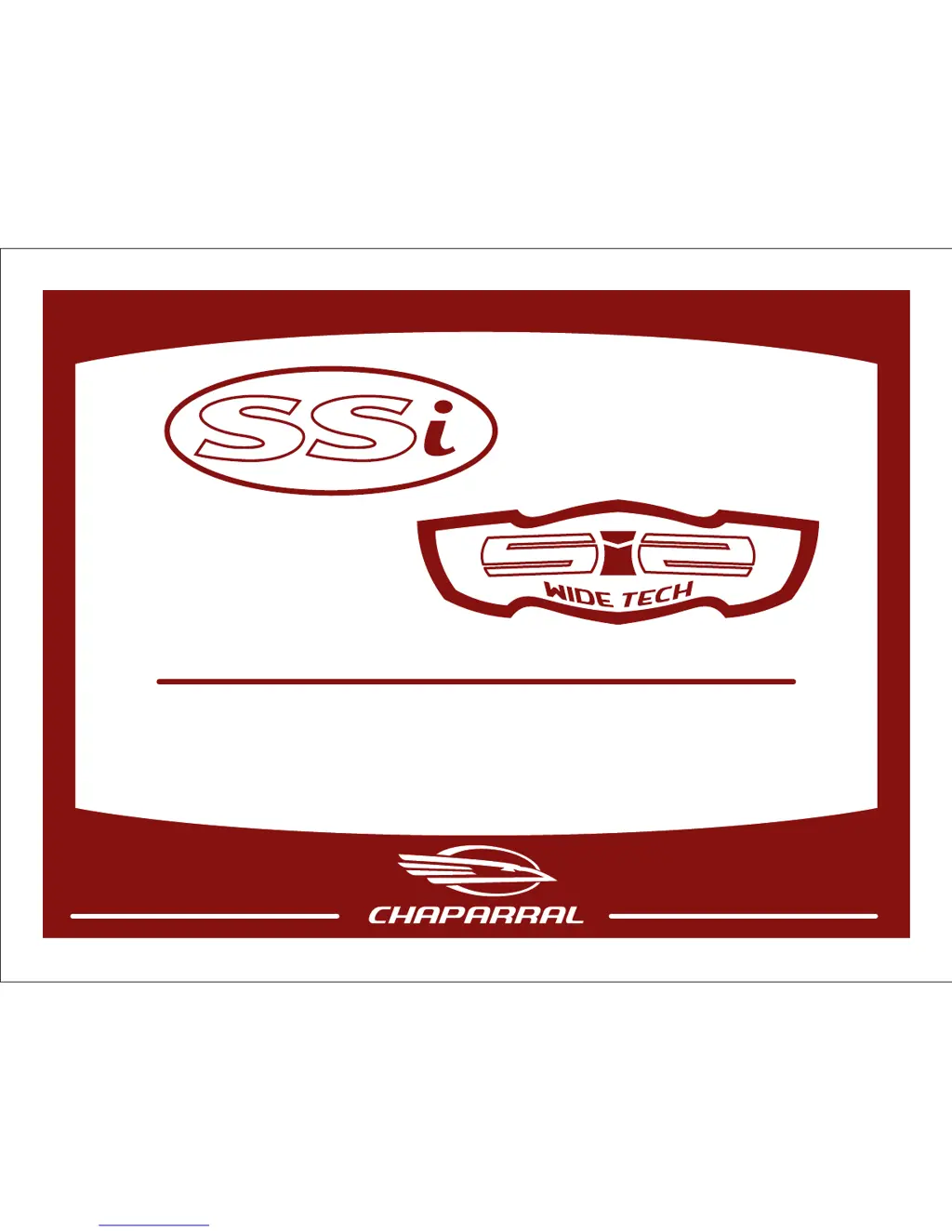

SSi - 180 204 210 215 236 255 256 275
SSi Wide Tech - 196 206 216 226
2009 OWNER / OPERATOR MANUAL

Table of Contents

Questions and Answers

  • M
    Michael KirkAug 19, 2025
    How to fix an engine that will not crank in my Chaparral SSI 204?
    • R
      Rachel DavisAug 20, 2025
      If your Chaparral Boat engine won't crank, several issues could be the cause. First, check if the ignition breaker has tripped or a fuse has blown at the engine; if so, reset the breaker or replace the fuse. Ensure the throttle lever is in the neutral position. Inspect for loose wires in the starting circuit and tighten any loose connections. Other potential causes include a defective ignition switch (test and replace if needed), a defective solenoid (replace it), a dead battery (recharge or replace), or the battery switch being in the wrong position (turn the selector switch to the battery on position). If the neutral safety switch isn't making proper contact, have your Chaparral dealer inspect the throttle assembly.
  • D
    Donald HaleyAug 26, 2025
    How to improve acceleration on my Chaparral SSI 204 Boat?
    • S
      staceyhuffmanAug 26, 2025
      If your Chaparral Boat is experiencing poor acceleration, it could be due to several reasons. The fuel injectors might need cleaning or replacement. Inspect the cable and linkages for any binding, obstructions, or loose fasteners that may prevent the throttle from fully opening. A dirty flame arrestor or obstructed air intake can also cause this issue, so clean the flame arrestor and check the air intake.
  • Z
    zgreerAug 27, 2025
    What causes rough running in a Chaparral SSI 204 Boat and how to fix it?
    • T
      Timothy LeeAug 27, 2025
      If your Chaparral Boat is running rough, several factors could be responsible. First, check the choke linkages for any binding or obstructions, especially if your engine has a carburetor. Replace the fuel filter if it's clogged. Inspect the fuel for water or other contaminants; if contaminated, drain the tank and flush it with fresh fuel. Also, check for kinked or clogged fuel lines, or a blocked fuel tank vent line; use compressed air (at no more than 20 psi) to blow out any obstructions, and replace the line if it's kinked. Ensure the flame arrestor isn't plugged with foreign material and the air intake hose isn't obstructed; clean the flame arrestor and check the hose. Check the idle speed and adjust it if it's too low.
  • J
    James LeeAug 30, 2025
    Why does my Chaparral SSI 204 have excessive fuel consumption?
    • P
      Paula JohnsonAug 30, 2025
      If your Chaparral Boat is showing excessive fuel consumption, start by checking the flame arrestor for any restrictions and clean it. If the flame arrestor screen is dirty, clean or replace it as required. Ensure the spark plugs are in good condition and properly set; clean and set them, or replace them if necessary. Finally, verify that the engine timing is correct and adjust it if needed.
  • Y
    yferrellAug 31, 2025
    What to do if starter will not crank engine(s) in Chaparral SSI 204 Boat?
    • C
      Cody WellsSep 1, 2025
      If the starter won't crank the engine(s) on your Chaparral Boat, begin by charging the battery. Clean the battery terminals to remove any corrosion. Check and tighten all connections in the starting circuit. If these steps don't resolve the issue, the starter switch may be defective and require replacement. The starter motor brushes could be dirty and need cleaning or replacement. Alternatively, the starter drive might be jammed, requiring you to loosen the starter motor and free the stuck gear.
  • G
    Gloria CurrySep 2, 2025
    How to resolve engine misfiring in my Chaparral SSI 204 Boat?
    • C
      Christopher NicholsSep 3, 2025
      If your Chaparral Boat engine runs but is misfiring, consider these possible solutions: Remove, clean, or replace fouled spark plug(s). Wipe dry any wet spark plug wires, inspect them, and replace damaged wires. Clean or replace a carbon tracked distributor as required. Inspect all wire connections for looseness. If the fuel filter is partially clogged, clean or replace it. If the fuel is contaminated, drain the fuel tank, flush it clean, and replace the fuel filter.
  • J
    Joseph FletcherSep 4, 2025
    What causes black or gray exhaust smoke from my Chaparral SSI 204?
    • A
      Andrea ScottSep 5, 2025
      If your Chaparral Boat is emitting black or gray exhaust smoke, it could be due to several carburetor-related issues. The fuel mixture might be too rich, requiring you to adjust the carburetor. The choke might be stuck, needing lubrication and adjustment. The carburetor setting could be poor, so readjust it. The carburetor fuel level might be too high, requiring you to adjust the float in the carburetor. Additionally, a clogged flame arrestor can cause this issue, so clean or replace it as required.
  • J
    John JensenSep 6, 2025
    Why is my Chaparral SSI 204 Boat engine knocking or pinging?
    • T
      tonya52Sep 7, 2025
      If your Chaparral Boat engine is knocking or pinging, drain the tank and replace with proper fuel if the fuel type is incorrect. Clean or replace spark plugs and check engine timing if pre-ignition occurs. Check engine cooling system if the engine is overheated. Check water intake connections for leaks if there is cooling system trouble.
  • R
    Robin WilliamsSep 9, 2025
    What does blue exhaust smoke indicate in my Chaparral Boat?
    • C
      cole79Sep 9, 2025
      If your Chaparral Boat is emitting blue exhaust smoke, the lube level might be too high, so drain off the excessive oil. If the oil is too thin, drain and replace it. If the oil is overheated, check the cooling system.
  • J
    Julian WatsonSep 12, 2025
    What causes vibration in my Chaparral SSI 204?
    • J
      John HenrySep 12, 2025
      If your Chaparral Boat is experiencing vibration, inspect and tighten loose engine mounting bolts as required. Replace the shaft if the propeller shaft is damaged. Inspect the propeller and replace it if it is bent or the pitch is out of true.

Summary

Introduction to Chaparral Boats Manual

Manual Overview

Introduces the manual's purpose, structure, and how to use it.

Construction and Standards

Details compliance with USCG, NMMA, and ABYC standards, including CE mark certification.

Owner Responsibilities and Legal Compliance

Dealer and Owner Responsibilities

Outlines responsibilities for both dealers and owners regarding purchase, warranty, and operation.

Laws and Regulations

Covers boat registration, required safety equipment, and environmental regulations.

Comprehensive Boating Safety

Hazard Communication and Safety Symbols

Explains hazard symbols, signal words (Danger, Warning, Caution), and their meanings.

Safe Operation Practices

Covers safe operation, including checks, procedures, and general conduct.

Essential Safety Equipment

Details requirements for PFDs, fire extinguishers, and distress signals.

Emergency Procedures

Covers storms, man overboard recovery, fire response, and handling emergencies.

Boat Systems and Component Operation

Carbon Monoxide Hazards and Prevention

Details risks of carbon monoxide from exhaust fumes and prevention methods.

Fuel, Fresh Water, and Sanitation Systems

Covers fuel system safety, fresh water sanitization, and marine sanitation device operation.

Dashboard Instruments and Gauges

Details dashboard instruments for monitoring boat performance and potential issues.

Major Components: AC, Refrigerator, Microwave

Covers operation of air conditioner, refrigerator, and microwave oven.

Underway Operations and Procedures

Transporting, Launching, and Loading Boats

Covers trailer selection, launching/loading procedures, and safe boat boarding.

Fueling and Engine Starting

Highlights safe fueling practices and provides steps for starting the engine.

Boat Handling and Maneuvering

Explains maneuvering, accelerating, steering, trimming, and using trim tabs.

Anchoring, Docking, and Mooring

Covers procedures for anchoring, docking, mooring, and shutting down the engine.

Maintenance, Troubleshooting, and Care

Preventive Maintenance Schedule

Details engine, fuel system, propeller, and bilge maintenance tasks.

Troubleshooting Common Issues

Provides solutions for engine starting, performance, and running problems.

Interior and Exterior Care

Offers guidance on cleaning and maintaining the boat's hull, gelcoat, hardware, and interior.

Storage, Warranty, and Schematics

Winterizing and Storage Procedures

Covers lifting the boat, dry storage preparation, and winterizing systems and components.

Boat Warranty Information

Details structural, deck, hull blister, and other component warranties.

Wiring Schematics

Provides detailed wiring schematics for various Chaparral SSI boat models.

Chaparral SSI 204 Specifications

General IconGeneral
BrandChaparral
ModelSSI 204
CategoryBoat
LanguageEnglish
