APPLICATIONS & USE FOR YOUR SPRAYER
Avoid using a sprayer for general cleaning purposes if plant protection or herbicide chemicals have already
been used in the sprayer. If a sprayer has been used for plant protection or as an herbicide, clean the sprayer
completely (see cleaning section) before using.
Plant Food: Use different spray patterns for optimum foliage feeding or for fungicide and pesticide
application.
Herbicides: Reduce weeds and unwanted plants but avoid using the same sprayer for plant feeding or
protection without thoroughly cleaning (see cleaning section) the sprayer first.
General Household Use: Apply detergents, cleaning solutions, warm water (do not exceed 120°F/49°C)
or nontoxic household cleaning chemicals for carpets, floors, walls, glass, counter tops and ceilings. DO
NOT use sprayer that has been used with herbicides, pesticides or other toxic chemicals for household
applications.
General Outdoor Use: Use the sprayer for cleaning windows or with a detergent for general purpose
cleaning.
5E
1. Poly
Nozzle Cap
2. Retaining
Nut
3. Nozzle
Body
4. Nozzle
Gasket
5. Elbow
Figure 1

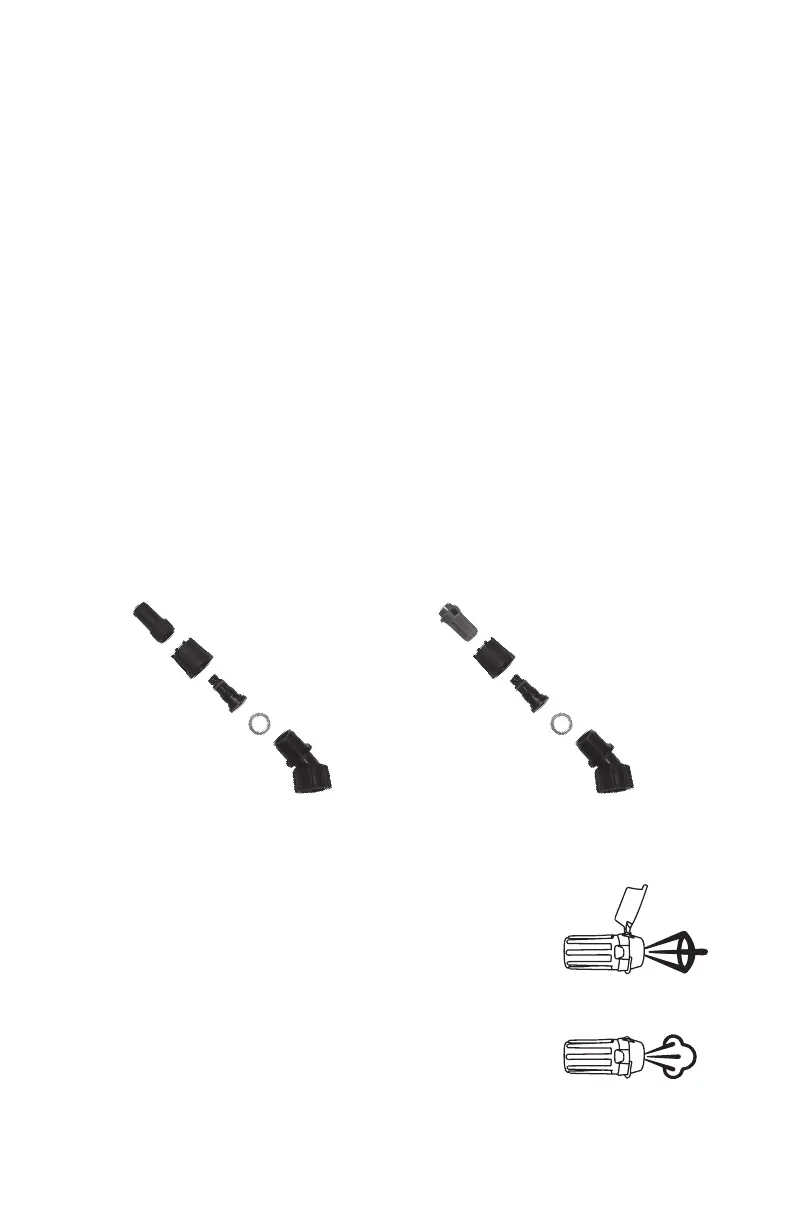

SPRAYER COMPONENTS & USE INFORMATION
NOZZLE ASSEMBLY
Figure 1-2
Unscrew the nozzle cap (1) from the nozzle body (3) with retaining nut (2) fastened tightly to the elbow (5). Unscrew
the retaining nut (2). Push the nozzle body (3) with the nozzle gasket (4) out of the retaining nut (2). To reinstall the
nozzle, reverse the above instructions.
1. Foaming
Nozzle Cap
2. Retaining
Nut
3. Nozzle
Body
4. Nozzle
Gasket
5. Elbow
Figure 2
Figure A
Figure B
FOAMING NOZZLE INSTRUCTIONS
Figure A
To spray from straight stream to fine mist, flip up screened foamer cover.
Adjust nozzle by turning to provide desired spray pattern.
Figure B
To spray as a foam, secure screened foamer cover to closed position. Adjust
nozzle for desired foam patterns.
