Chapin 63102 - Wand Assembly; Shoulder Strap Installation; Wand Clip

6E
SPRAYER COMPONENTS & USE INFORMATION, Continued
O-ring
Wand
Retaining Nut
Shut-off
Valve

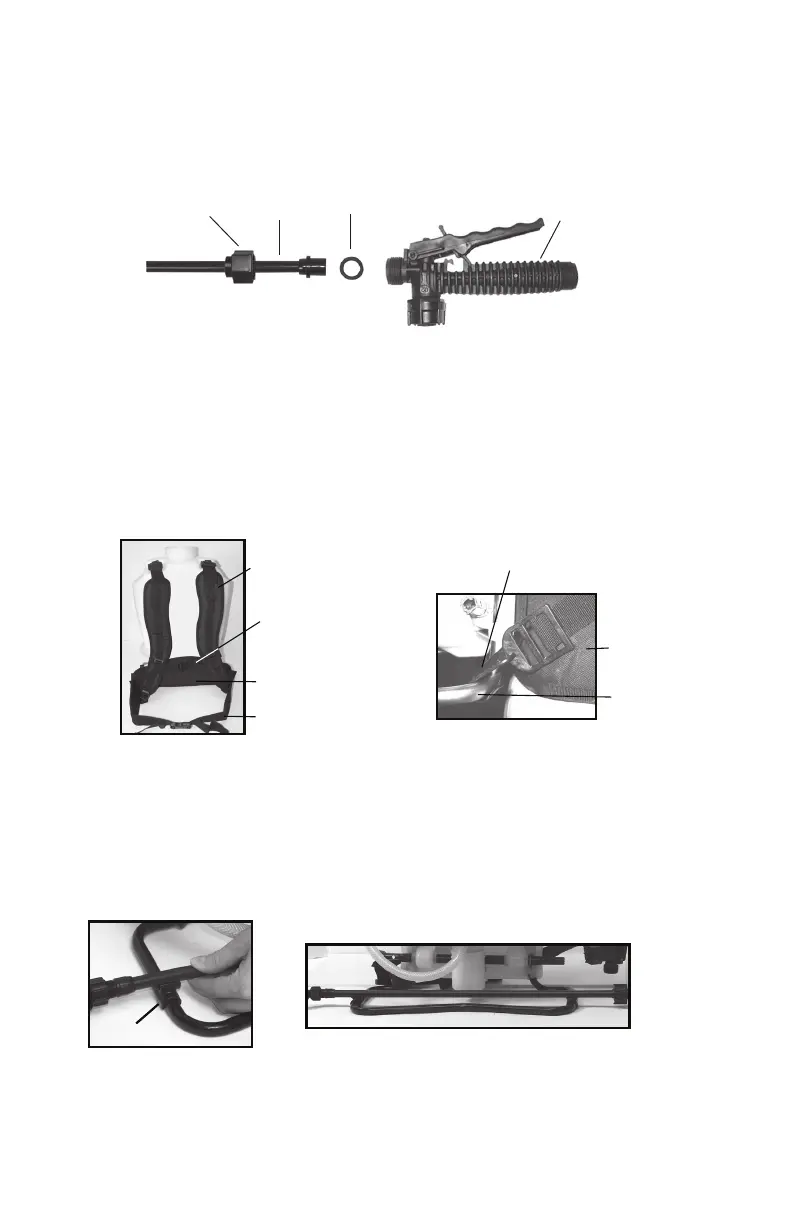

WAND ASSEMBLY
1. Make sure the o-ring is installed on the end of the wand. Insert the wand into shut-off valve.
2. Turn and tighten the retaining nut clock-wise onto the shut-off valve.
WAND CLIP
The wand can be attached to the metal frame using the wand clips.
The backpack strap is provided with multiple features including shoulder strap, chest strap,
waist belt and lumbar support. (figure 1). The top the shoulder strap is attached to the top of
the tank and is removable. The hook from the lumbar support attaches to the base tube on
the bottom of the tank (figure 2).
INSTALLING THE SHOULDER STRAP
Hook
Base
Tube
Lumbar
Support
Figure 2
Hook Attachment
Chest
Strap
Lumbar
Support
Waist
Belt
Figure 1
Strap Assembly
Shoulder
Strap
Wand Clip
