Chapin 97361 - Wand Assembly Steps; Chemical Concentrate Tank Attachment; Drain Cap Installation

5E
Chapin Spot Sprayer Operator’s Manual - English

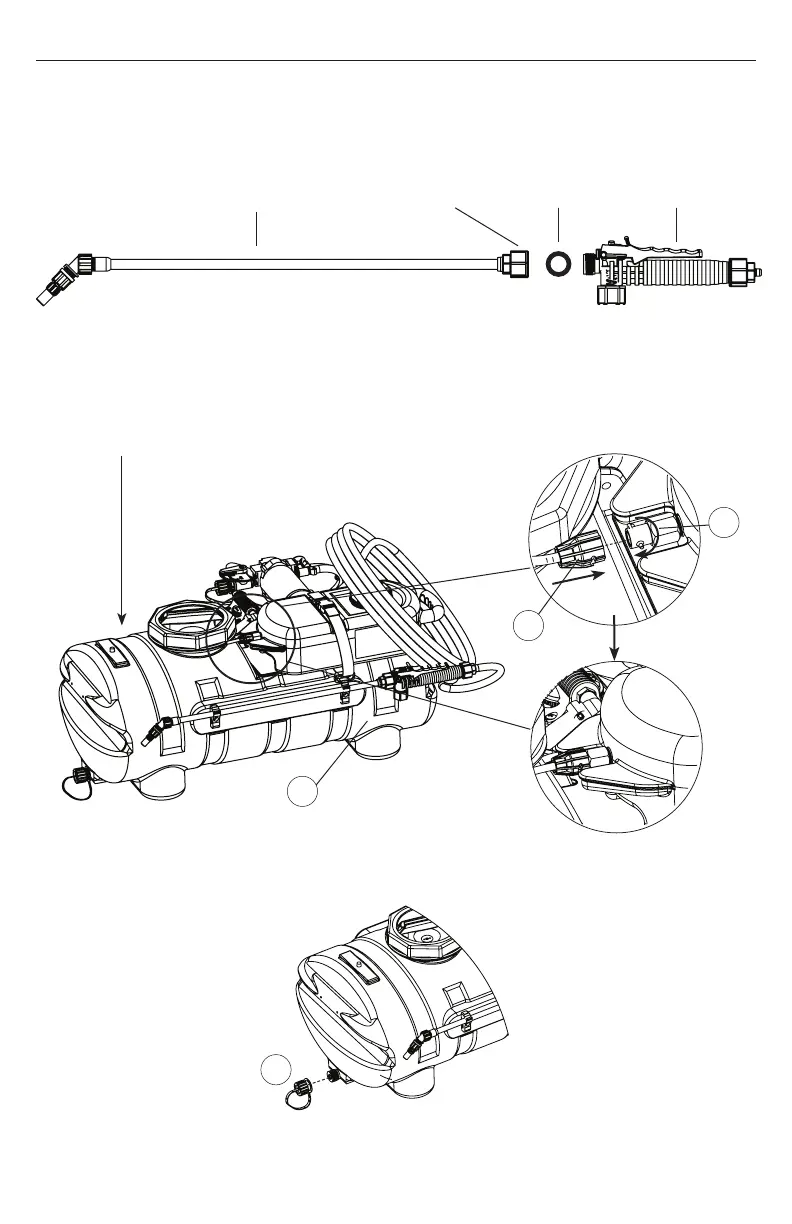

WAND ASSEMBLY
Wand O-ring
Shut-O Valve
Retaining Nut
Make sure the o-ring is installed on the end of the wand. Insert the wand into shut-off valve.
Turn and tighten the retaining nut clock-wise onto the shut-off valve.
ATTACH CHEMICAL CONCENTRATE TANK
Before chemical tank installation, attach supplied rachet straps to strap slots on tank.
Securely fasten assembly to ATV. NOTE: not all models included ratchet straps.
Attach the mix valve’s suction tubing (1) to the chemical concentrate tank’s quick release
port (2). Secure chemical concentrate tank with nylon webbing (3).
Assembled
3
1
2
INSTALL DRAIN CAP
Install cap lanyard around drain plug. Screw drain cap (H-5) on drain plug.
H-5
