Chapin 97902 - Frame Leg and Handlebar Installation

6E

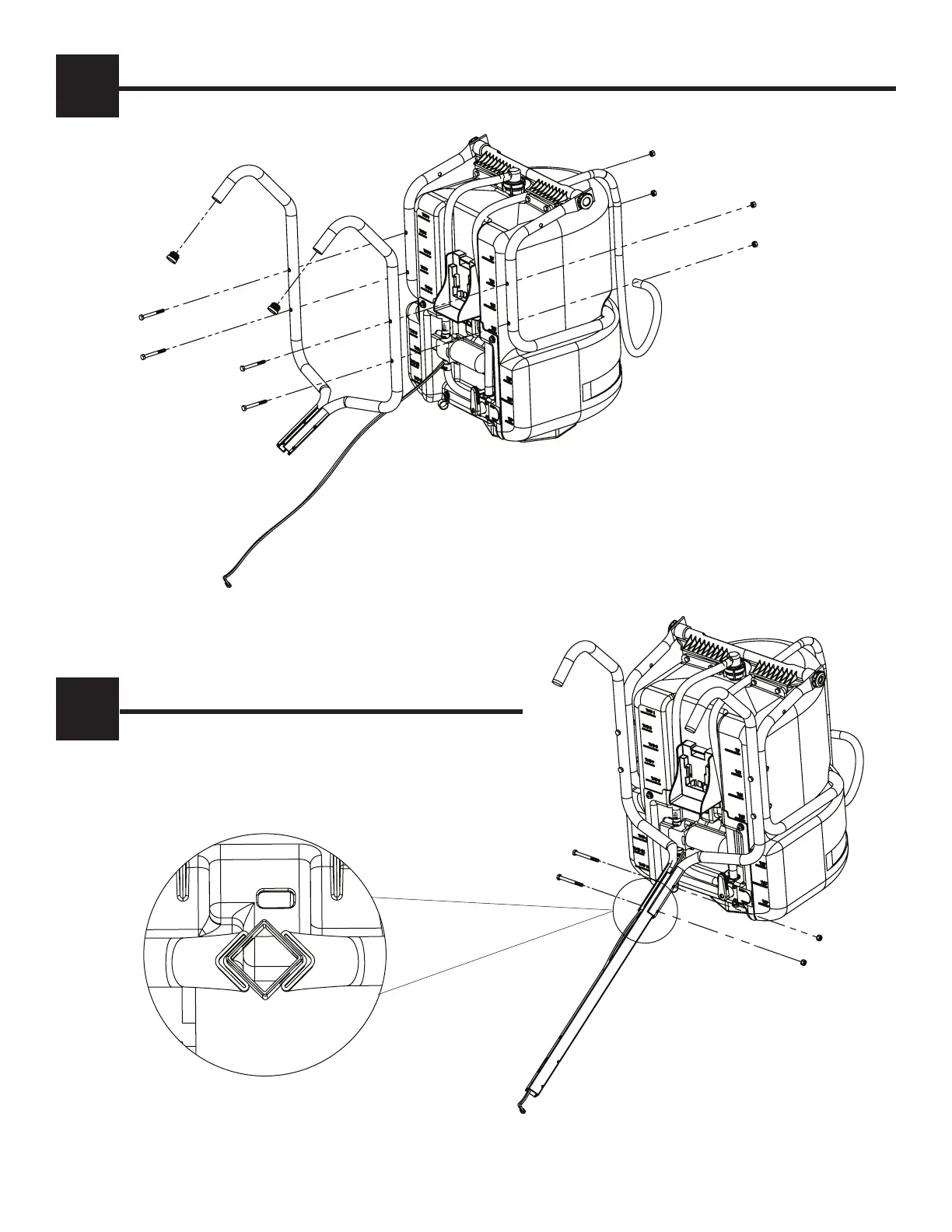

HANDLE BAR INSTALLATION
12
Run on/off switch wiring harness (C-4) through handle bar tubing (C-5).
Bolt handle bar to assembled frame legs using H-1 nuts and bolts.
FRAME LEG INSTALLATION
11
Attach frame leg (C-8 and C-9) with nuts and bolts (H-1) to tank assembly (C-2). Install end caps (H-12) into frame legs (C-8 and C-9).
C-5
C-4
C-4
H-12
H-12
H-1
H-1
H-1
H-1
H-1
H-1
H-1
H-1
H-1
H-1
H-1
H-1
C-8
C-9
