3E
Figure 1
Figure 2
Line up holes
Figure 3
Slide bolts through holes
Figure 5
Right Hand
Figure 7
Right Hand
Pump Handle
Positioned For
Use (right hand
shown)

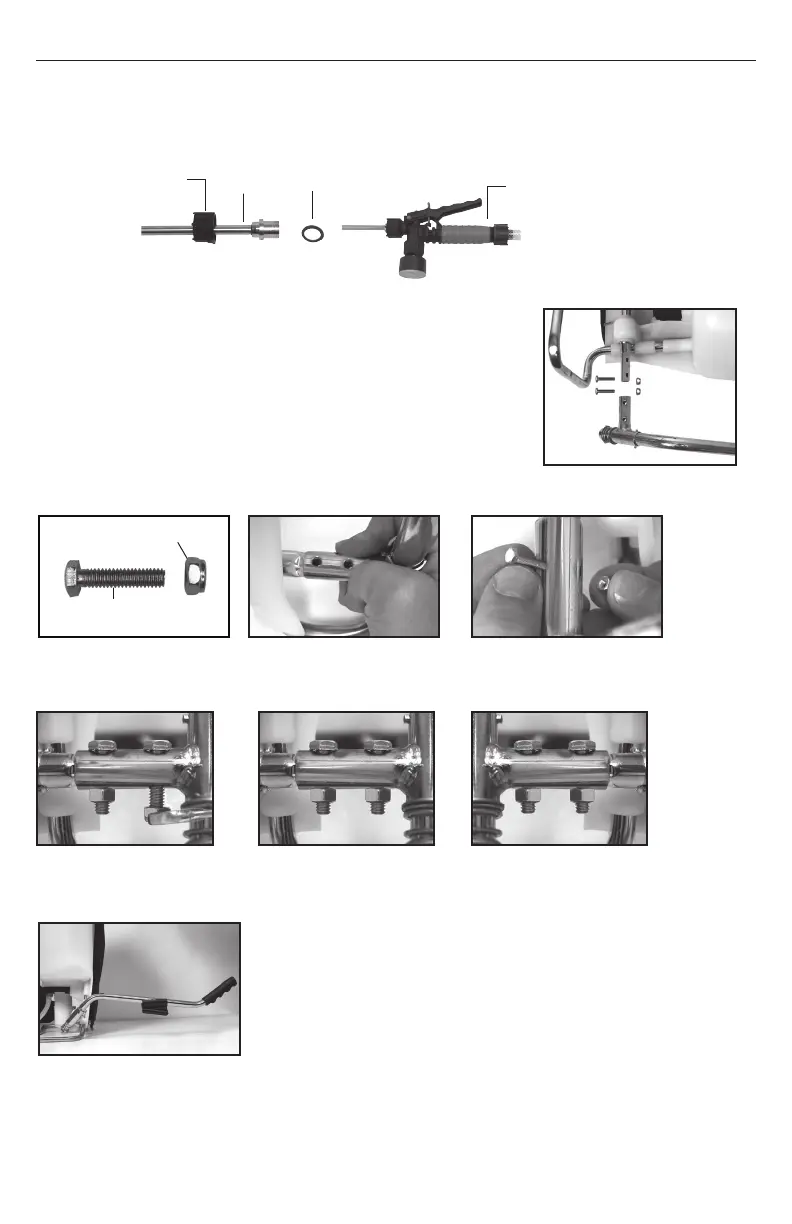

INSTALLING THE PUMP HANDLE
The pump handle can be mounted on either side of the pump shaft (A). To
install the pump handle place the handle (C) over the shaft (A) aligning the
pump handle holes and shaft holes. Slide the bolts (B) through the aligned
holes as shown in figure 1 thru 4. Tighten nuts (D) to bolts. There are holes in
the pump handle to allow for either right (fig.5) or left (fig.6) hand mounting.
Figure 6
Left Hand
Figure 4
Tighten nut to bolt
Threaded Bolt
Nylon Lock Nut
C. Pump Handle
A. Pump Shaft
B. Bolts
D. Nuts
Retaining
Nut
Wand O-ring Shut-off
Valve
WAND ASSEMBLY
1. Make sure the o-ring is installed on the end of the wand. Insert the wand into shut-off valve.
2. Turn and tighten the retaining nut clock-wise onto the shut-off valve.
Chapin Backpack Sprayer Operator’s Manual - English
