14
15

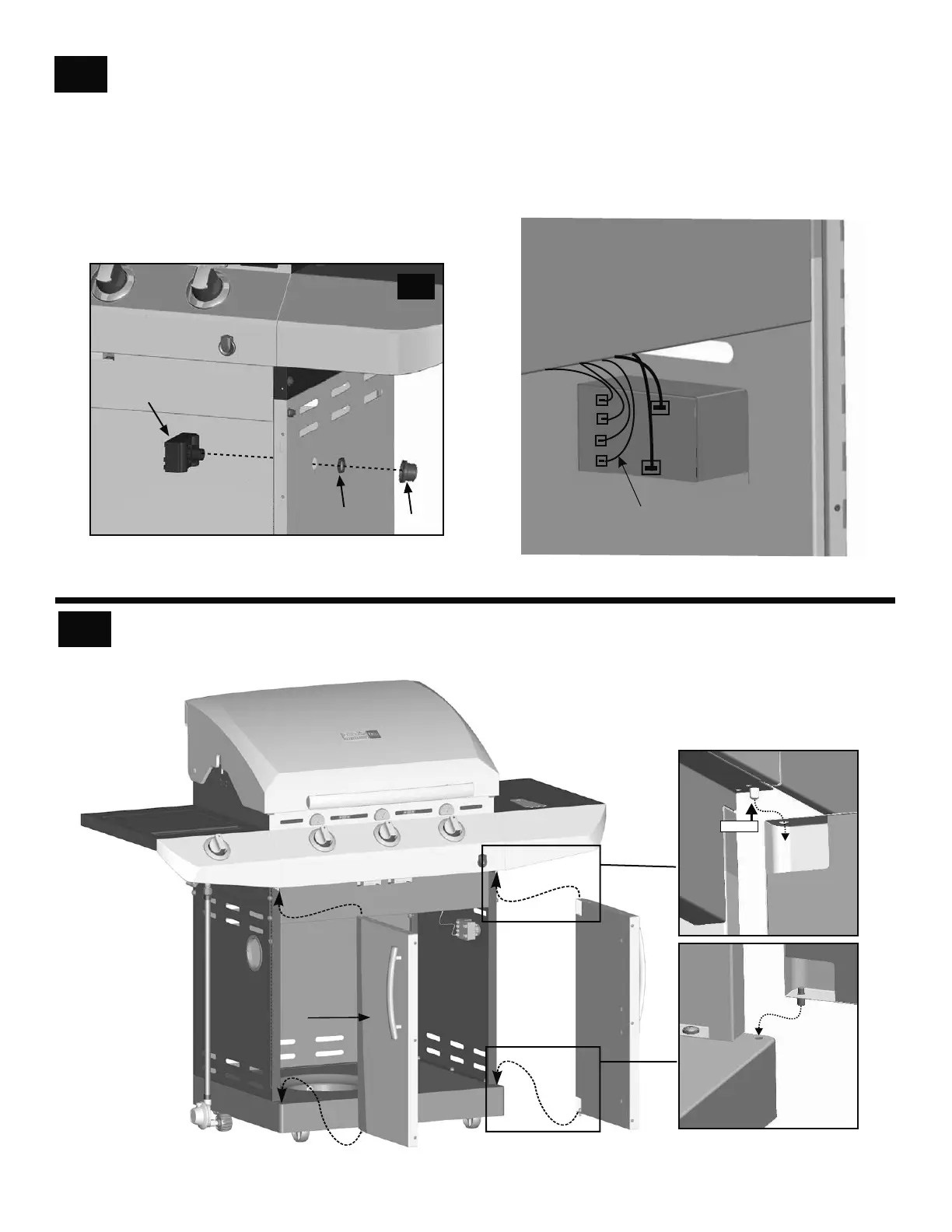

Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
Hinge pin
on bottom
of door
Top of
door
PRESS
20
Left door
Right door
Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the Electronic Ignition
Module.
Total (4) connections.
Connect the two wires(A and B) from
the switch wiring harness into the back
of the Electronic Ignition Module.
NOTE: Switch
terminals are larger than electrode
terminals and should only be
installed in location shown as A,B.
Wire
1
4
3
2
A
B
Total (2) connections.
Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side panel with
the nut and cap, shown A.
ignition module
Electronic
Right side panel
A
Cap
Nut
To Next Page
