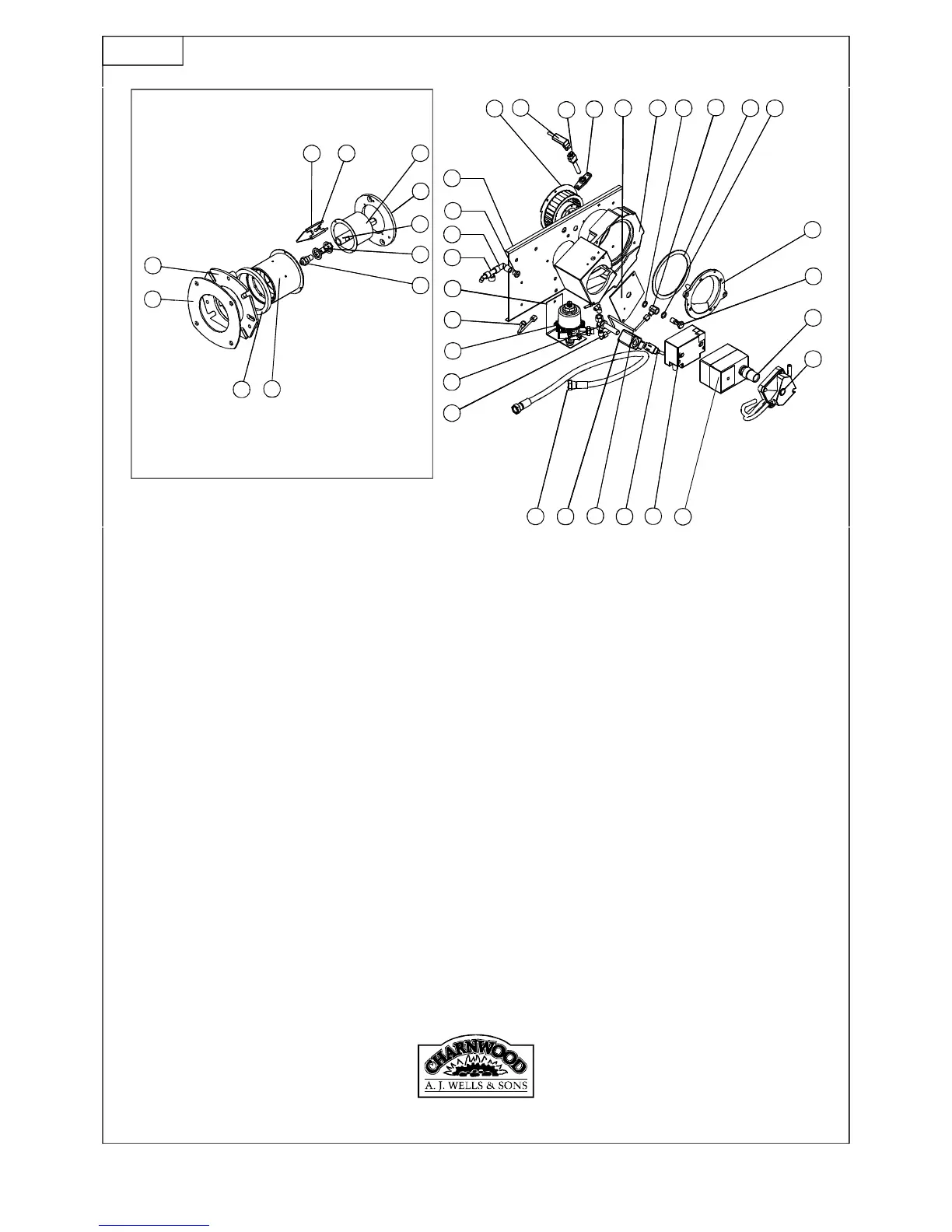

Thisdrawingisforidentificationpurposesonly.
Item Part No. Description Item Part No. Description
1 040/TV61 Nozzle - 0.4 80° EH 38 040/TV124 Solenoid Valve
2 040/TV154 Electrode Mounting Block 39 040/TV123 Solenoid Plug& Lead
3 040/TV153 Electrode 40 040/TV161 Burner Mounting Flange
4 040/TV140 Nozzle Holder 41 040/TV162 Mounting Flange Gasket
5 040/TV155 Nozzle Holder Cover Plate 42 Electrode fixing screw
6 040/TV141 Al. Washer
7 040/TV143 Banjo Union
8 040/TV142 Fibre Washer
9 040/TV144 Banjo Bolt
10 040/TV160 Flexible Oil Line
11 040/TV63 Blast Tube Seal
12 040/TV112 Photocell Plug-in Type
13 040/TV113 Solenoid Coil Plug-in Type
14 040/TV164 Blast Tube
15 040/TV151 Air Guide in Blast Tube
16 040/TV28 Burner Chassis Plate
17 040/TV74 Fan Motor & Impeller
18 040/TV92 Pump Mounting Bracket
19 040/TV72 Oil Pump
20 040/TV71 Ignition Unit
21 040/TV75 Control Box
22 040/TV54/A Fan Mounting Ring
23 040/TV158 Photocell Plug & Cable
24 040/TV159 Photocell Holder
25 040/TV68 Air Pressure Switch
26 040/TV148 Gauge Port Elbow
27 040/TV149 Gauge Port Plug
28 040/TV150 Oil T Connector
29 040/TV69 Reset Button Extension
30 040/TV152 Blast Tube Mounting Flange
31 040/TV146 Oil Pipe (Pump to Sol.Valve)
33 040/TV145 Oil Pipe (Sol.Valve to Nozzle)
34 040/TV15~1 Burner Casting
35 040/TV163 Fan Washer
37 040/TV147 Oil Elbow 8/10mm male/male
TheseItemsshownRotated
3
15
30
4
2
1
14
11
41
40
42
17
23
12
24
5 34 6
7
35 8
22
9
25
29
21
40
33
13
38
37
10
19
31
18
28
26
27
16
20
CharnwoodOLXBurnerMk.3
PartsList
