Chef UC-PS18-30 - Page 7

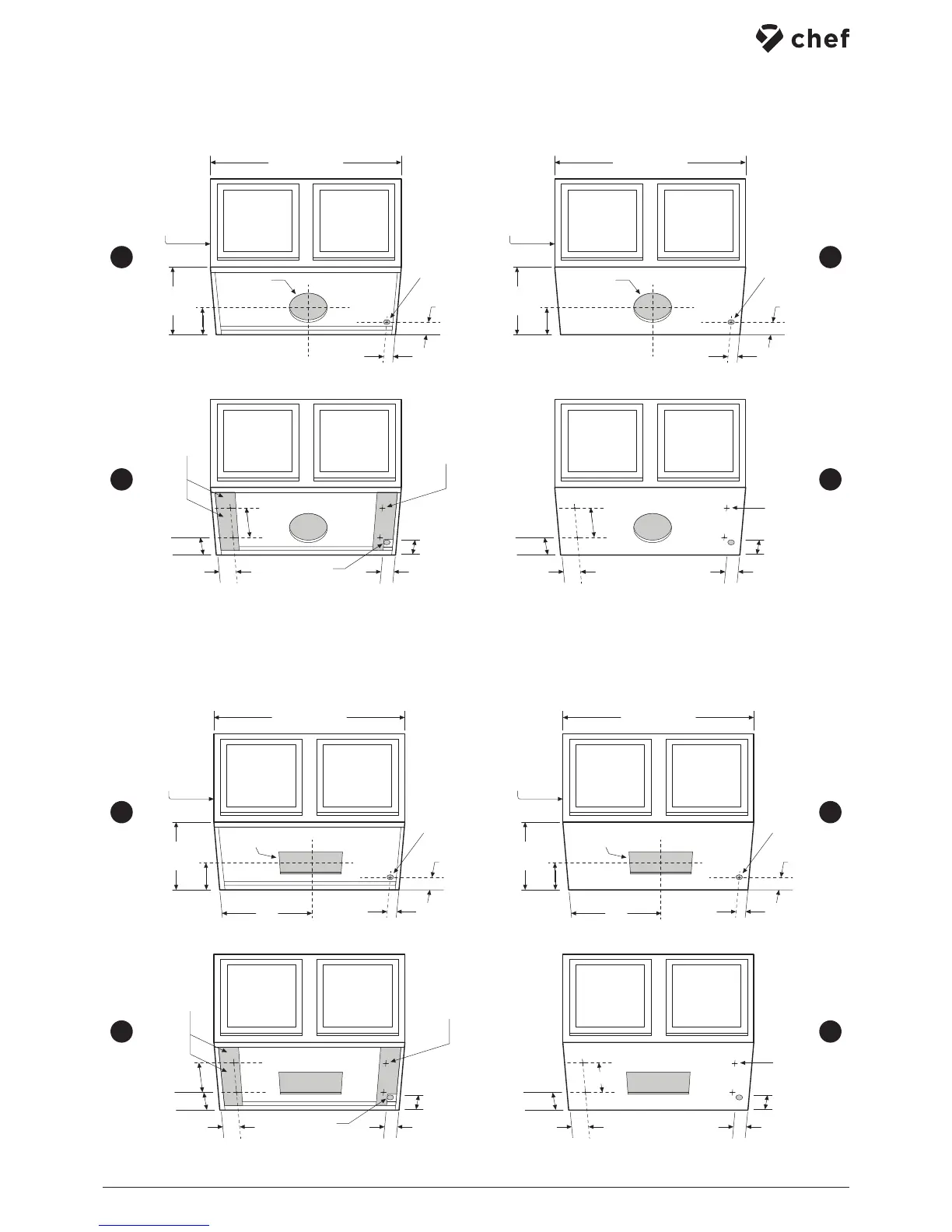

Cabinet or soffit with flush bottom
30” cabinet (typical)
Cabinet with
flush bottom
12”
(typical)
6-1/2” hole
CL
1-1/4”
2”
1” hole
5”
8-1/4”
2-1/2”
2-3/8”
3-1/4”
1-7/8”
Four, (4)
mounting holes
Four, (4)
mounting holes
2
1
Cabinet with recessed bottom
30” cabinet (typical)
Cabinet with
recessed bottom
12”
(typical)
6-1/2” hole
CL
1-1/4”
2”
1” hole
5”
1
3-1/2”
wide filler
along front
and sides
8-1/4”
2-1/2”
2-3/8”
3-1/4”
1-7/8”
RH filler notched
at back corner to
allow plug clrearance
2
Cabinet or soffit with flush bottom
30” cabinet (typical)
Cabinet with
flush bottom
12”
(typical)
CL
1-1/4”
2”
1” hole
4-1/8”
8-1/4”
2-1/2”
2-3/8”
3-1/4”
1-7/8”
Four, (4)
mounting holes
2
1
10-1/2” x 3-3/4” hole
15”
Four, (4)
mounting holes
Cabinet with recessed bottom
30” cabinet (typical)
Cabinet with
recessed bottom
12”
(typical)
10-1/2” x 3-3/4” hole
CL
1-1/4”
2”
1” hole
4-1/8”
15”
1
3-1/2”
wide filler
along front
and sides
8-1/4”
2-1/2”
2-3/8”
3-1/4”
1-7/8”
RH filler notched
at back corner to
allow plug clrearance
2
UC-PS18-30
1. Round Vertical Adapter
2. Rectangular Vertical Adapter
UC-PS18 USER MANUAL 7
