Cherry G704B-SR - Table of Contents

2
Supplier’s Federal Identification Code: 11815 TM-G704B_SR; Rev.: A
Date: 11/06/13
DCR# 13-1687
THE G704B-SR TOOL
TABLE OF CONTENTS
Warranty .......................................................................................................................................................................... 2
Description ...................................................................................................................................................................... 3
Specifications ........................................................................................................................................................................... 3
Safety Warnings ..................................................................................................................................................................... 4
How To Use ............................................................................................................................................................................. 5
Maintenance and Repair ........................................................................................................................................................ 5
Priming and Bleeding Instructions ......................................................................................................................................... 5
Troubleshooting ...................................................................................................................................................................... 5
Overhaul .................................................................................................................................................................................. 6
Pulling Heads and Extensions ........................................................................................................................................ 6
Part List .......................................................................................................................................................................... 7

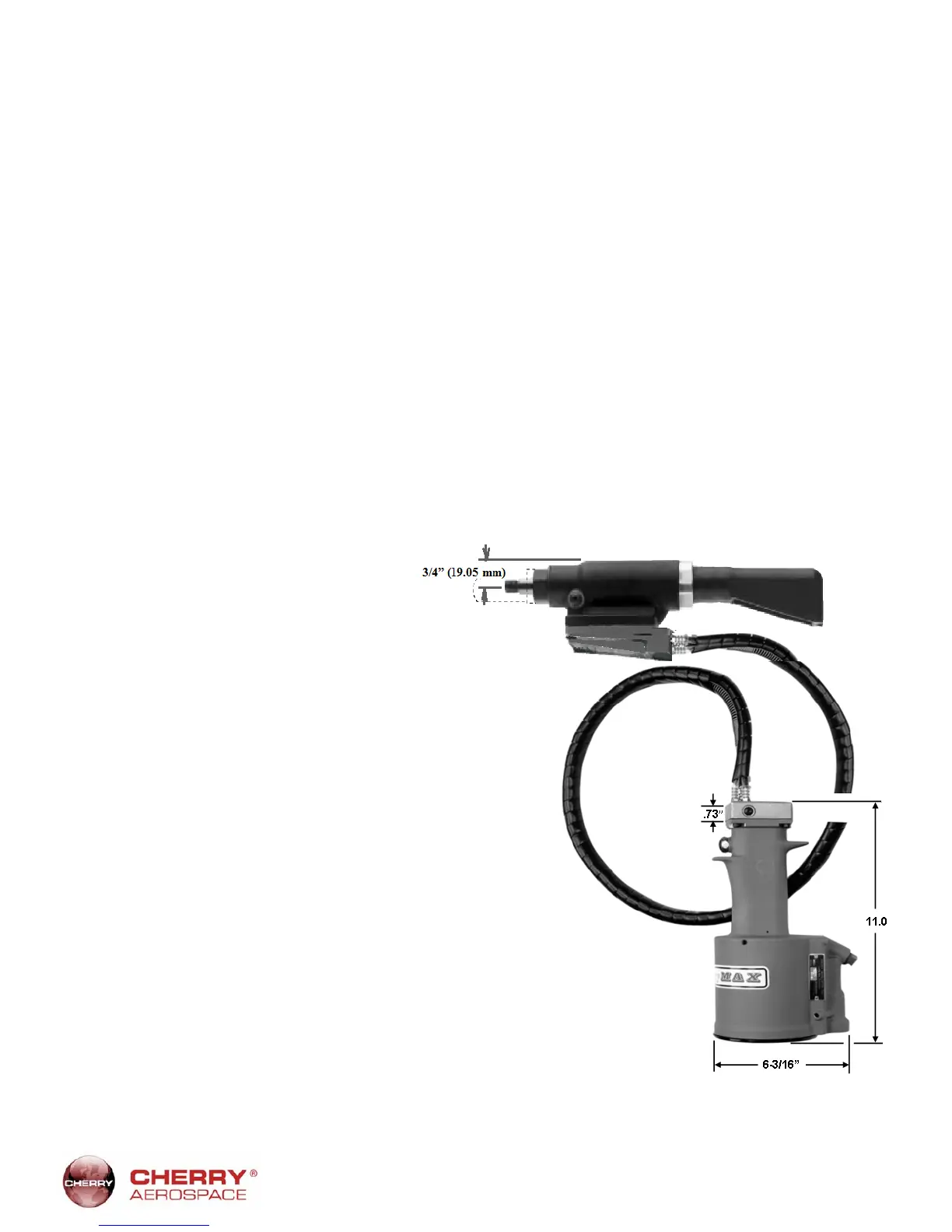

DESCRIPTION
G704B-SR is a split riveter designed for the installation of
blind rivets in limited access applications. The tool
transmits power from the power unit through a flexible 4
foot hose to a compact hand held head. By utilizing the
proper pulling head, access issues and operator fatigue can be greatly
reduced. The riveter converted into this 4 foot extended model (G704B) is a CE
certified tool.
SPECIFICATIONS
Cherry® Aerospace’ policy is one of continuous development. Specifications
shown in this document may be subject to change which may be introduced
after publication. For the latest information always consult Cherry® Aerospace.
AIR PRESSURE 90 PSI (6.2 bar) Min./ 110 PSI (7.6 bar) Max.
STROKE .518 Inch (13.16 mm)
PULLING FORCE 3,136 LbF. (13.95 kN) @ 90 PSI (6.2 bar)
CYCLE TIME About 1 second
WEIGHT (Handle) 4 1/4 Pounds (1.93 kg)
NOISE LEVEL < 85dB(A)
AIR CONSUMPTION 4 CFM (110.5 liters/M) @ 20 Cycles per Minute
