Training Center of After-Sales Department Chery International

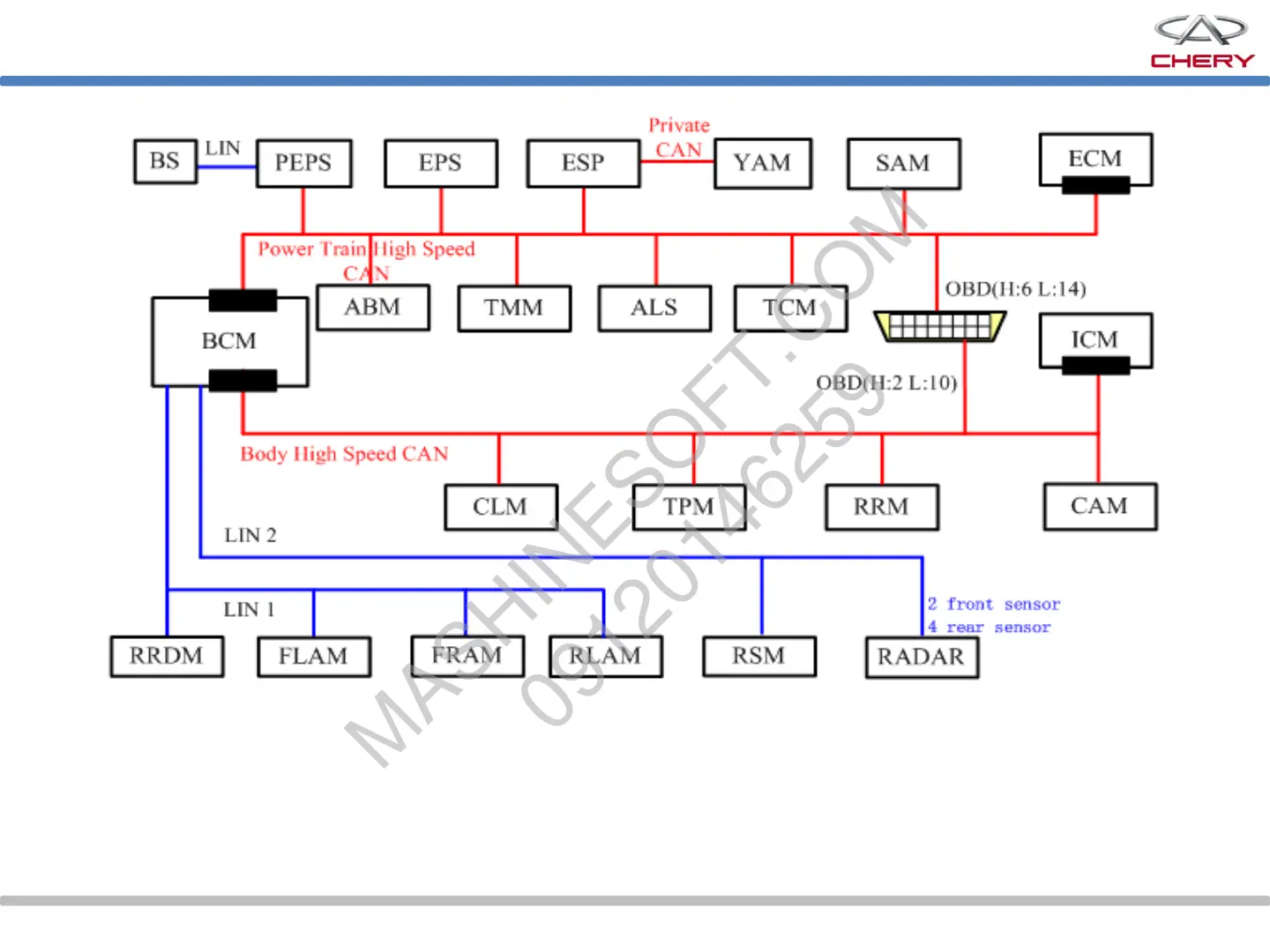

1. Vehicle communication system
10
1. The power CAN is a 500kb/s transport network, and terminal resistor is located in ECM/BCM.
2. The body CAN is a 500kb/s transport network, and terminal resistor is located in ICM/BCM.
3. IMMO is built in PEPS system.
4. ESP system utilizes YAM which is integrated in ABM, and the dedicated CAN communication
is provided. 120Ω resistors are located in these two modules.
1. CAN-bus
