12. Instrument cluster
200
2. Function description

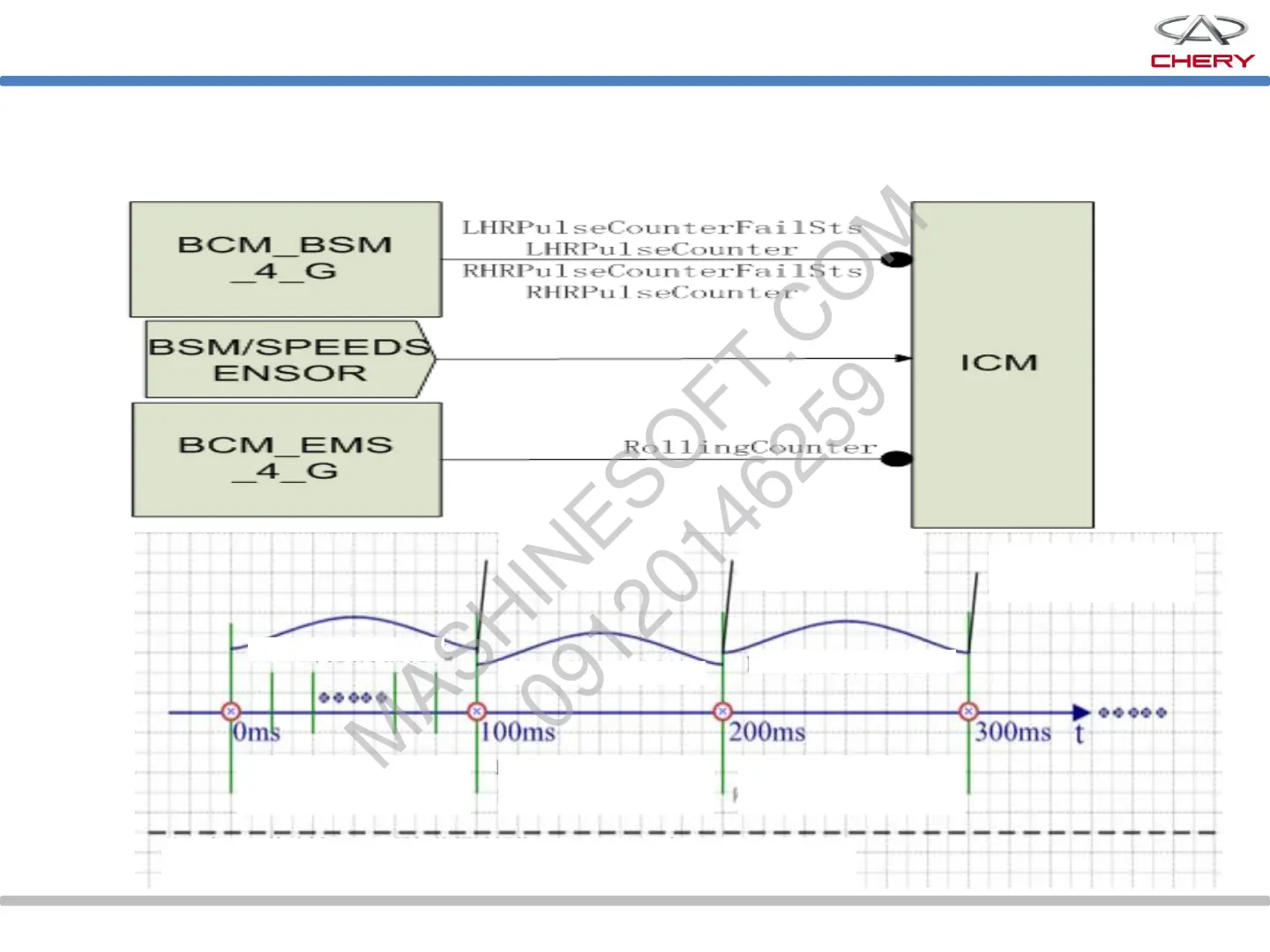

Source of instant fuel consumption
EMS sends CAN signal aL
at 100ms
EMS sends CAN (a+b) L at
200ms
EMS sends CAN (a+b+c) L at
300ms
EMS sends fuel consumption 0L each
10ms of the first 100ms cycle
EMS sends fuel consumption aL
each 10ms of the second 100ms
cycle
EMS sends fuel consumption a+bL
each 10ms of the third 100ms cycle
Actual consumption aL within
100ms
Actual consumption bL within
100ms
Actual fuel consumption cL
within 100ms
Note: When the accumulated value of EMS fuel consumption counter exceeds the threshold 0.020028382L, EMS will
send (Counter-0.020028382) L as the initial value of another accumulation cycle, and so on.
