Chery Tiggo 5 T21 - Page 8

Training Center of After-Sales Department Chery International

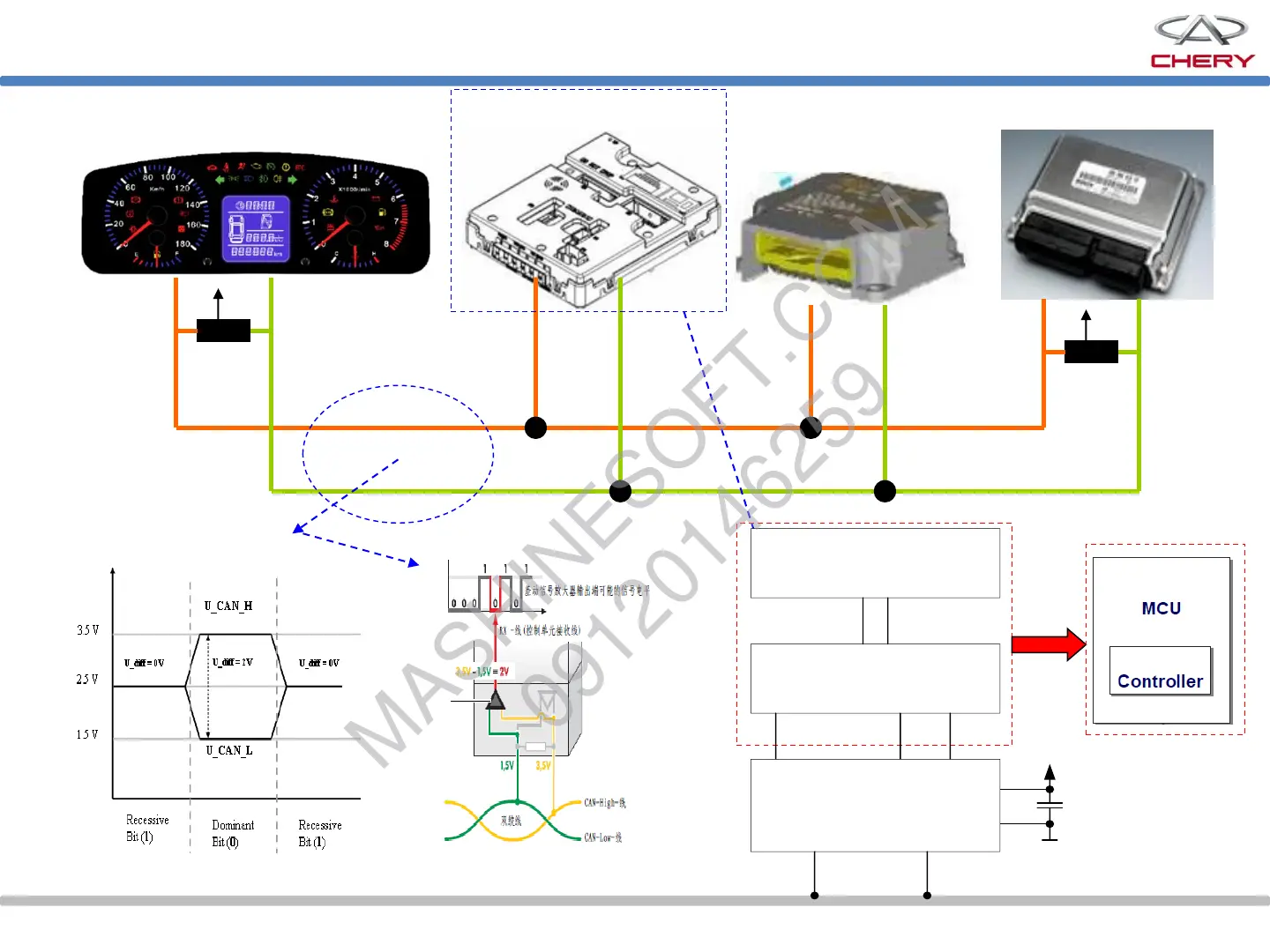

1. Vehicle communication system
8
ICM
BCM ABM EMS
CAN_LCAN_H
CAN_H
CAN_L
Double-
stranded
cable
Microcontroller
CAN Controller
TX0 RX0TX1 RX1
+5V
100nF
CAN Transceiver
TXD RxD Ref Rs
Vcc
Gnd
CAN_L CAN_H
Mobile signal
amplifier
Transceiver
1. CAN-bus
