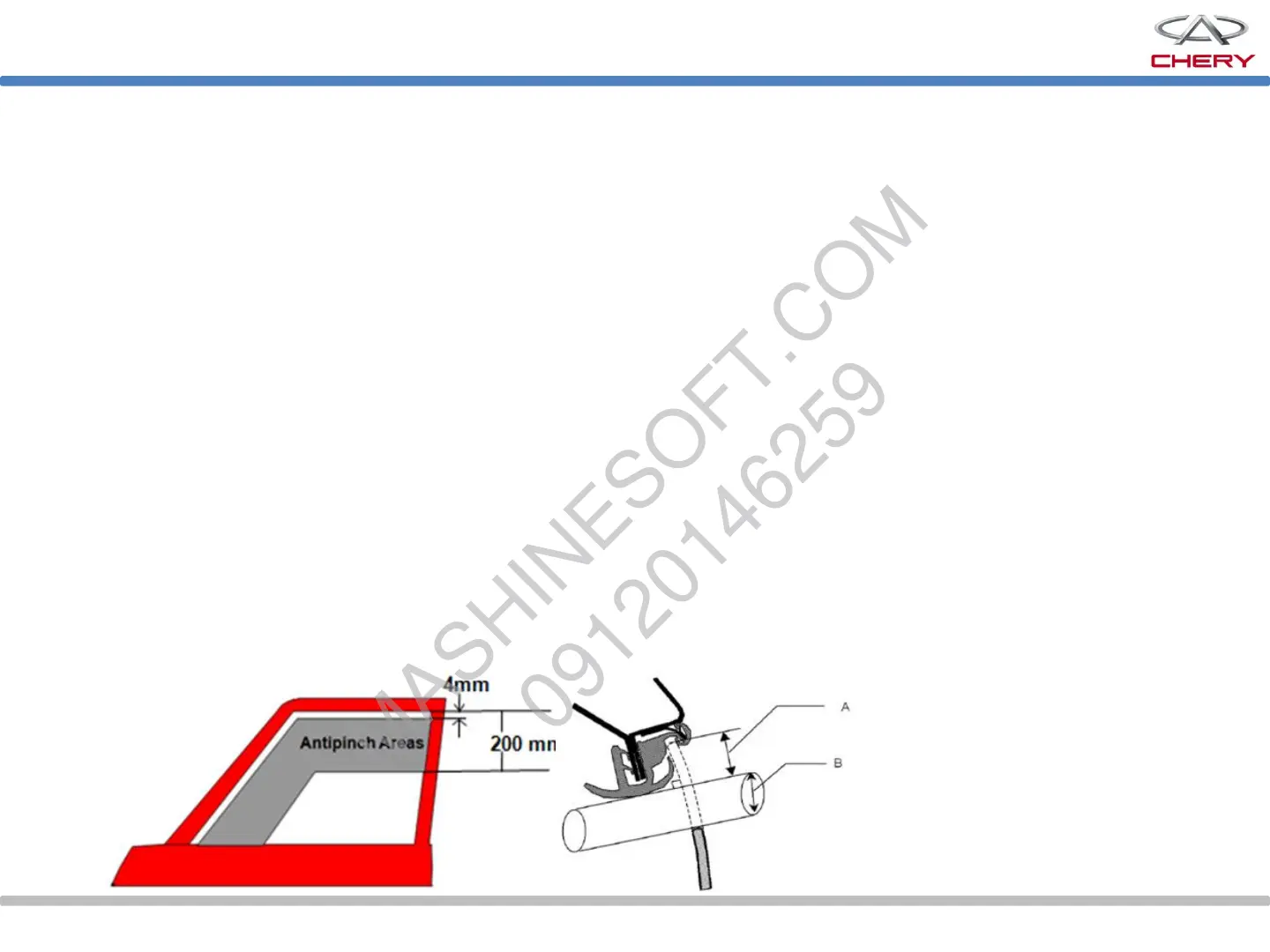

A: Distance from glass upper stalling
position to window wool groove lower edge
B: Distance from glass to wool groove
lower edge; effective area of anti-pinch :
4mm-200mm;
5. Window & anti-pinch sunroof system
90
2. Operation of window regulator system (with anti-pinch function)
Function description of anti-pinch inhibition :
The anti-pinch inhibition function is a characteristic function of anti-pinch module.
When the glass encounters any obstruction during raising, if the glass can’t reach its extreme
position all the time, in such a case, the anti-pinch function will be deactivated and the anti-
pinch inhibition function will be activated.
Description on anti-pinch inhibition process
Within 10s since the first time motor anti-pinch reverse rotate during the glass raising process,
if the second time motor reverse rotate occurs within that 10s, the automatic lifting function will
be disabled; if the glass remains rising within that 10s, the motor reverse rotate will no longer
occur when the glass encounters any obstruction, and the anti-pinch function will be disabled,
with the system entering the non-initialization mode.
After the anti-pinch inhibition function is activated, the glass can be raised manually with the
anti-pinch function deactivated; in this case, the motor will break through the fault point at the
maximum torque to close the window.
