9.
10.
11.
Put the headlamp assembly back into the vehicle
and reinstall the two pins.
Place the inboard end of the turn signal/parking
lamp housing into the pocket.
Push the outboard side
of
the housing in until the
release clip snaps into place.

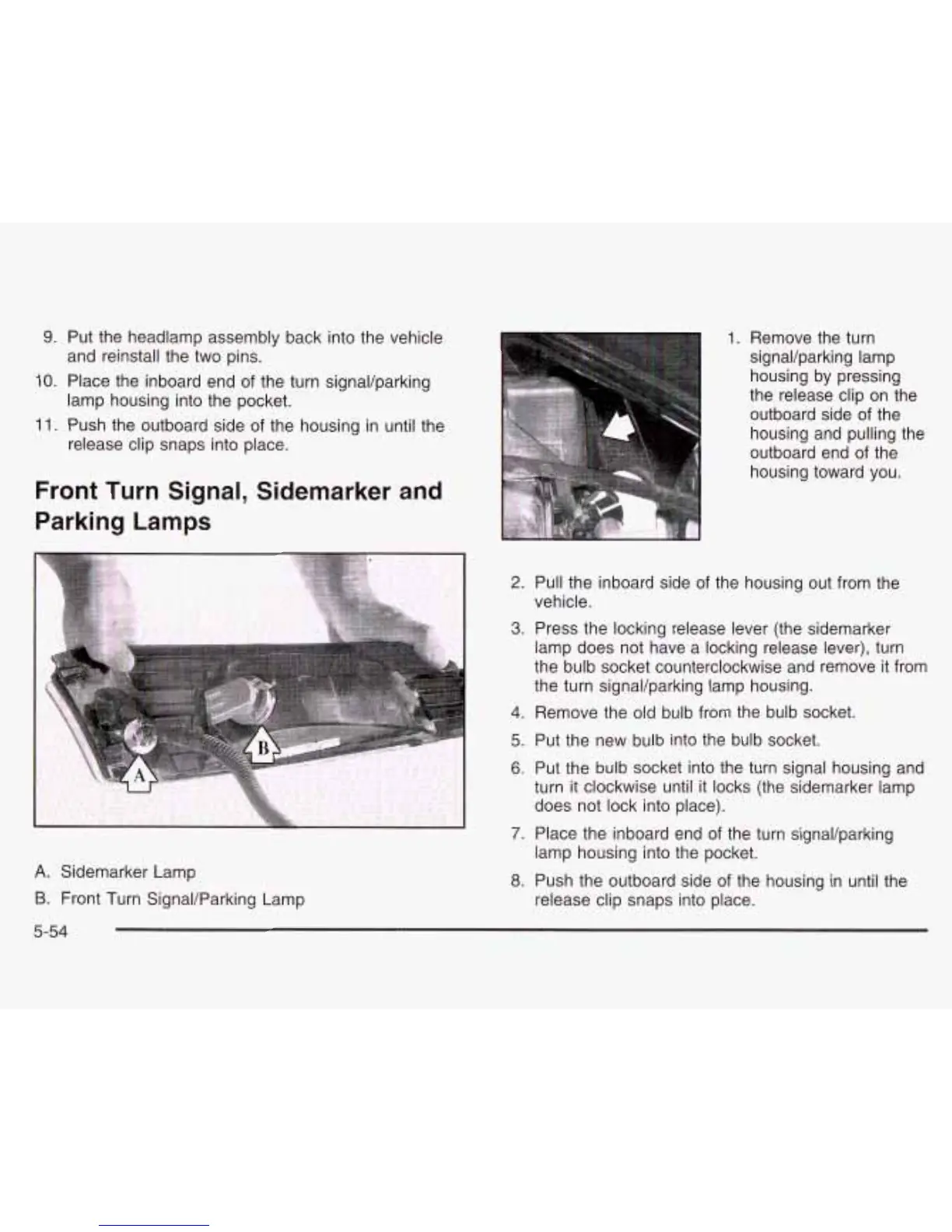

Front Turn Signal, Sidemarker and
Parking Lamps
A.
Sidemarker Lamp
B.
Front Turn SignaVParking Lamp
1.
Remove the turn
signaVparking lamp
housing by pressing
the release clip on the
outboard side of the
housing and pulling the
outboard end of the
housing toward you.
2.
Pull the inboard side
of
the housing out from the
vehicle.
3.
Press the locking release lever (the sidemarker
lamp does not have a locking release lever), turn
the bulb socket counterclockwise and remove it from
the turn signal/parking lamp housing.
4. Remove the old bulb from the bulb socket.
5.
Put the new bulb into the bulb socket.
6. Put the bulb socket into the turn signal housing and
turn
it
clockwise until it locks (the sidemarker lamp
does not lock into place).
7.
Place the inboard end of the turn signaVparking
lamp housing into the pocket.
8.
Push the outboard side of the housing in until the
release clip snaps into place.
5-54
