10-36 Vehicle Care

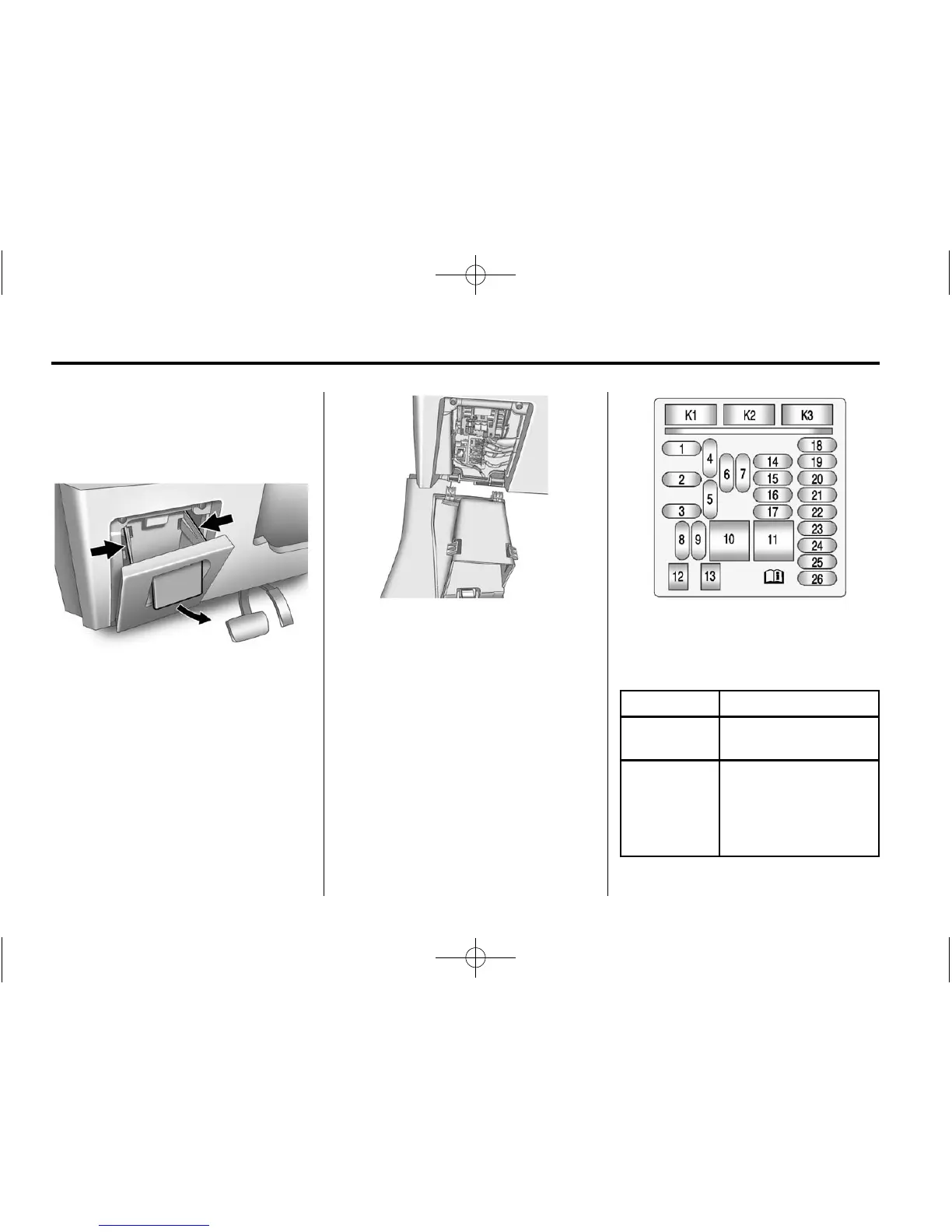

Instrument Panel Fuse
Block
The instrument panel fuse block
is located in the instrument panel,
on the driver side of the vehicle.
To access the fuses, open the fuse
panel door by pulling down at
the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release
it from the hinge.
Instrument Panel Fuse Block
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
1
Steering Wheel
Controls Backlight
2
Right Rear Turn
Signal, Left Mirror
Turn Signal, Left
Front Turn Signal,
Door Locks
To Next Page
