10-40 Vehicle Care
Instrument Panel Fuse
Block

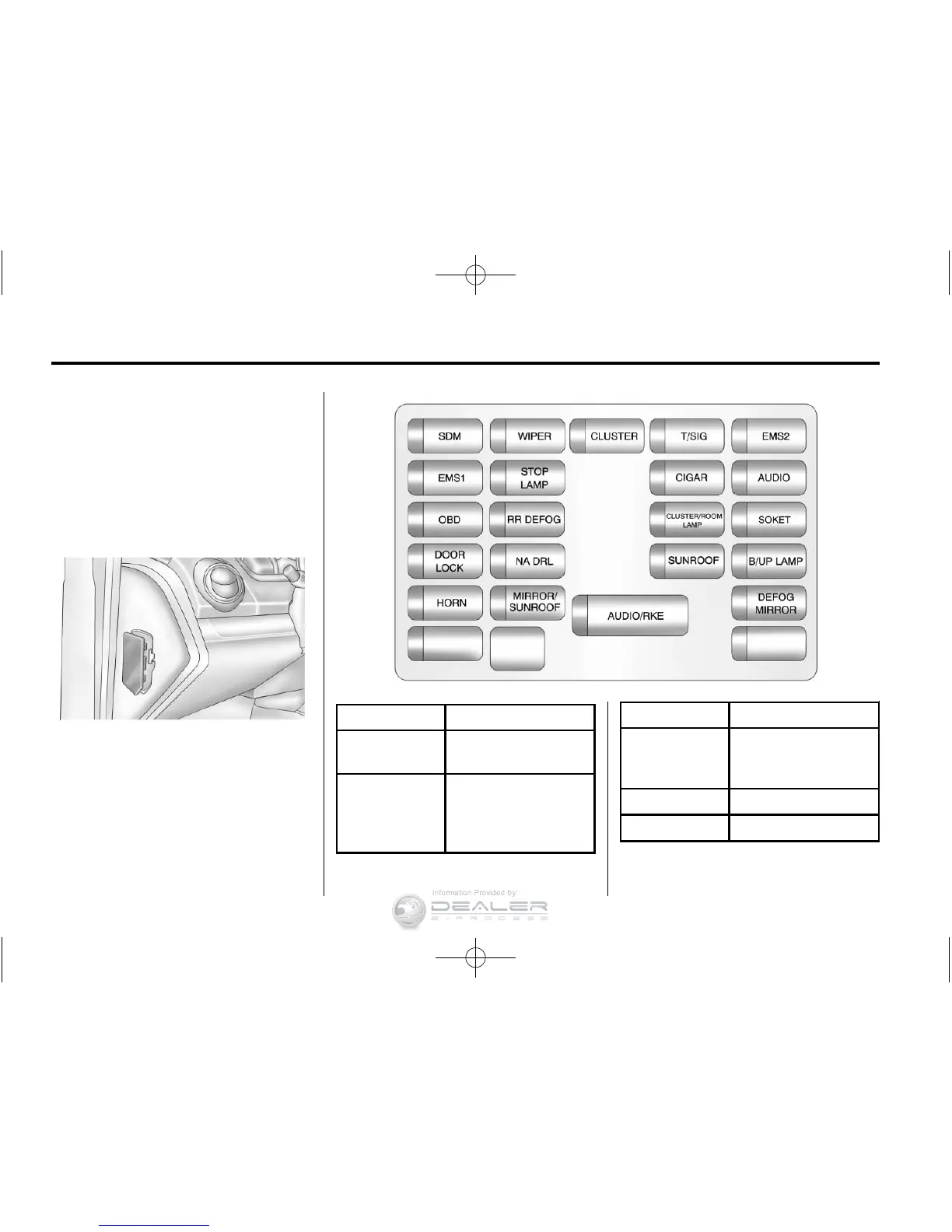

The instrument panel fuse block is
located on the end of the instrument
panel on the driver side of the
vehicle.
To access the fuses, open the fuse
panel door by pulling the door out.
To reinstall the door, first insert the
rear edge of the fuse panel door,
then push the front of the door into
the end of the instrument panel to
secure it.
Fuses Usage
AUDIO
Audio, Clock,
Immobilizer
AUDIO/RKE
A/C Switch, Clock,
Power Mirror Unit,
Audio, Anti-Theft
Module, TPMS
Fuses Usage
B/UP LAMP
PNP Switch,
Reverse Lamp
Switch
BLANK Not Used
BLANK Not Used
To Next Page
