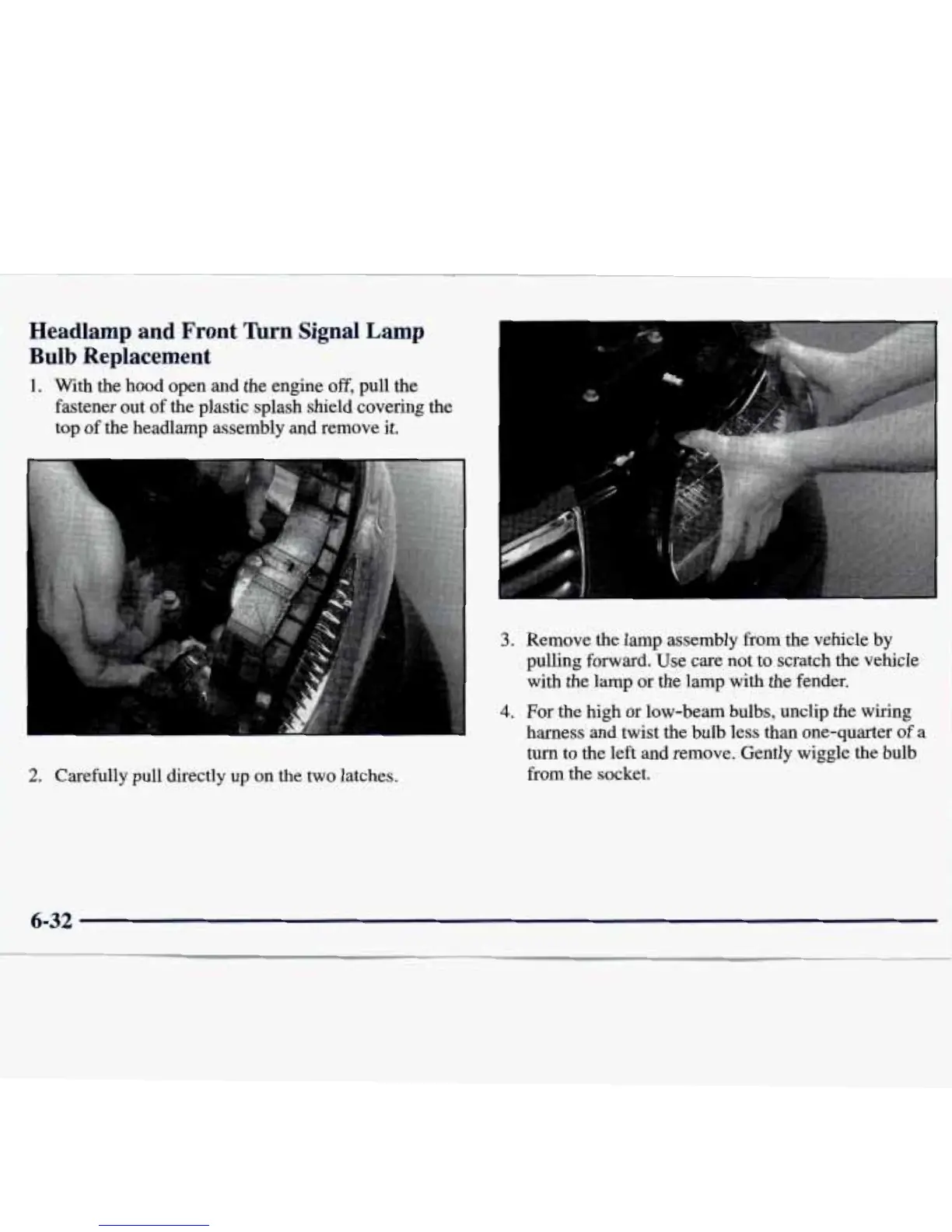

Headlamp and Front nrn Signal Lamp
Bulb
Replacement
1.
With the hood open and the engine
off,
pull the
fastener out of the plastic splash shield covering the
top of the headlamp assembly and remove it.
2.
Carefully pull directly up on the two latches.
3.
Remove the lamp assembly from the vehicle by
pulling forward. Use care not to scratch the vehicle
with the lamp or the lamp with the fender.
4.
For the high or low-beam bulbs, unclip the wiring
harness
and
twist the bulb less than one-quarter
of
a
turn to the left and remove. Gently wiggle the bulb
from the socket.
6-32
