Headlamps, Front Turn
Signal, Sidemarker, and
Parking Lamps
High‐Beam Headlamp/
Low‐Beam Headlamp

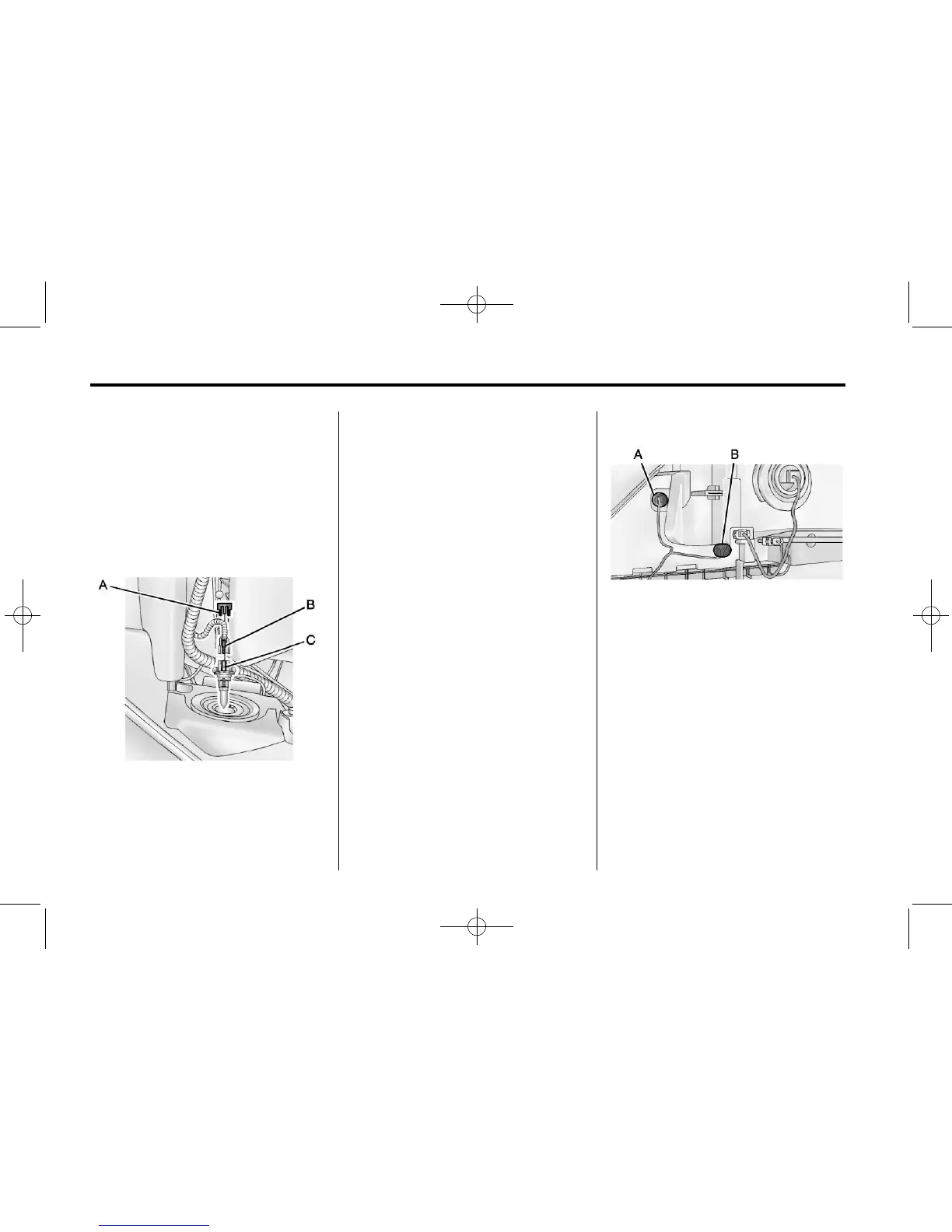

1. Open the hood. See Hood on
page 10‑4.
2. Remove the connector
retaining tab (A).
3. Disconnect the wiring harness
connector from the bulb (C) by
pressing the connector
release (B) and pulling
straight back.
4. Remove the bulb (C) from the
headlamp assembly by turning
counterclockwise and pulling
straight back.
5. Install the new bulb in the
headlamp assembly by turning
clockwise.
6. Install the wiring harness
connector to the bulb. Be sure
the connector release (B) locks
into place.
7. Install the connector
retaining tab (A).
Parking/Turn Signal Lamp
Passenger Side Shown, Driver
Side Similar
A. Parking Lamp
B. Turn Signal Lamp
1. Open the hood. See Hood on
page 10‑4.
2. For the driver side bulb, remove
the battery cover by firmly
pulling it straight up until it
releases.
3. Remove the bulb socket from
the headlamp assembly by
turning counterclockwise.
4. Remove the bulb from the bulb
socket by pulling straight out.
